Tectrix Climbmax 150 - Transmission Assembly

"U
...
<0
n>
U1
o
TRANSMISSION ASSY. - 61017
I PAIT NAil PAIT I qrr.
1 CLUTCH SHAFT 51049 I
2 SPROCKET - 40 TOOTH 51026 I
3 CLUTCH PULLEY ASSE~L Y 61009 2
4
THRUST BEARING - I" x 118" 44002 3
5
WASHER - I" x 1/]2" 44020 5
6
WAVE SPRING WASI-ER - I" 40004 I
7
BEARING - '" x I" FLANGE 44031 I
B
RETAINING RING - 25nn 43206 1
•

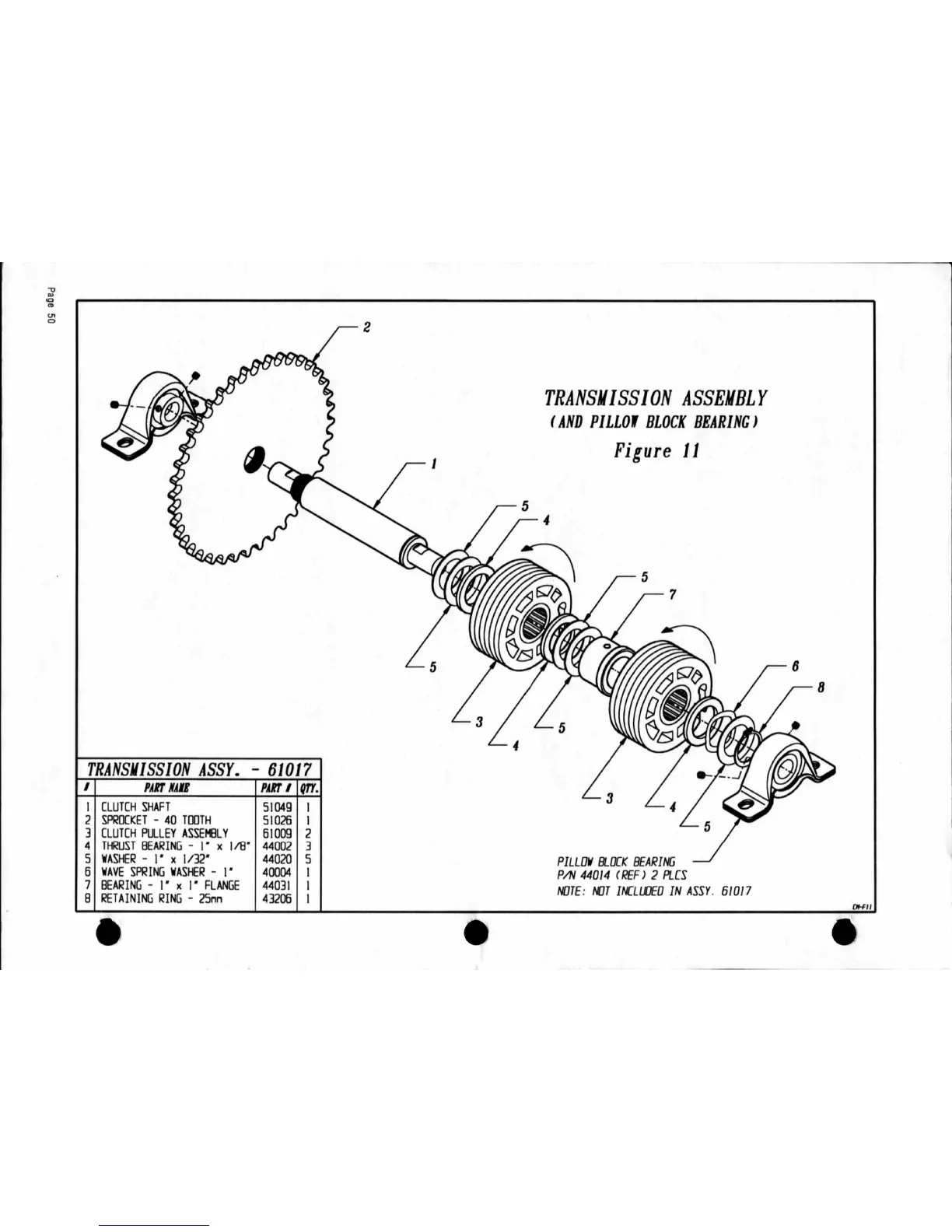

TRANSM I SS ION ASSEMBLY
(AND PILLOr BLOCK BEARING)
Figure 11
PILLOti aOCK BEARING
P/N 44014 (REF) 2 P!..CS
NllTE: MlT UCLLlED IN ASSY. 61017
Clt-fll
