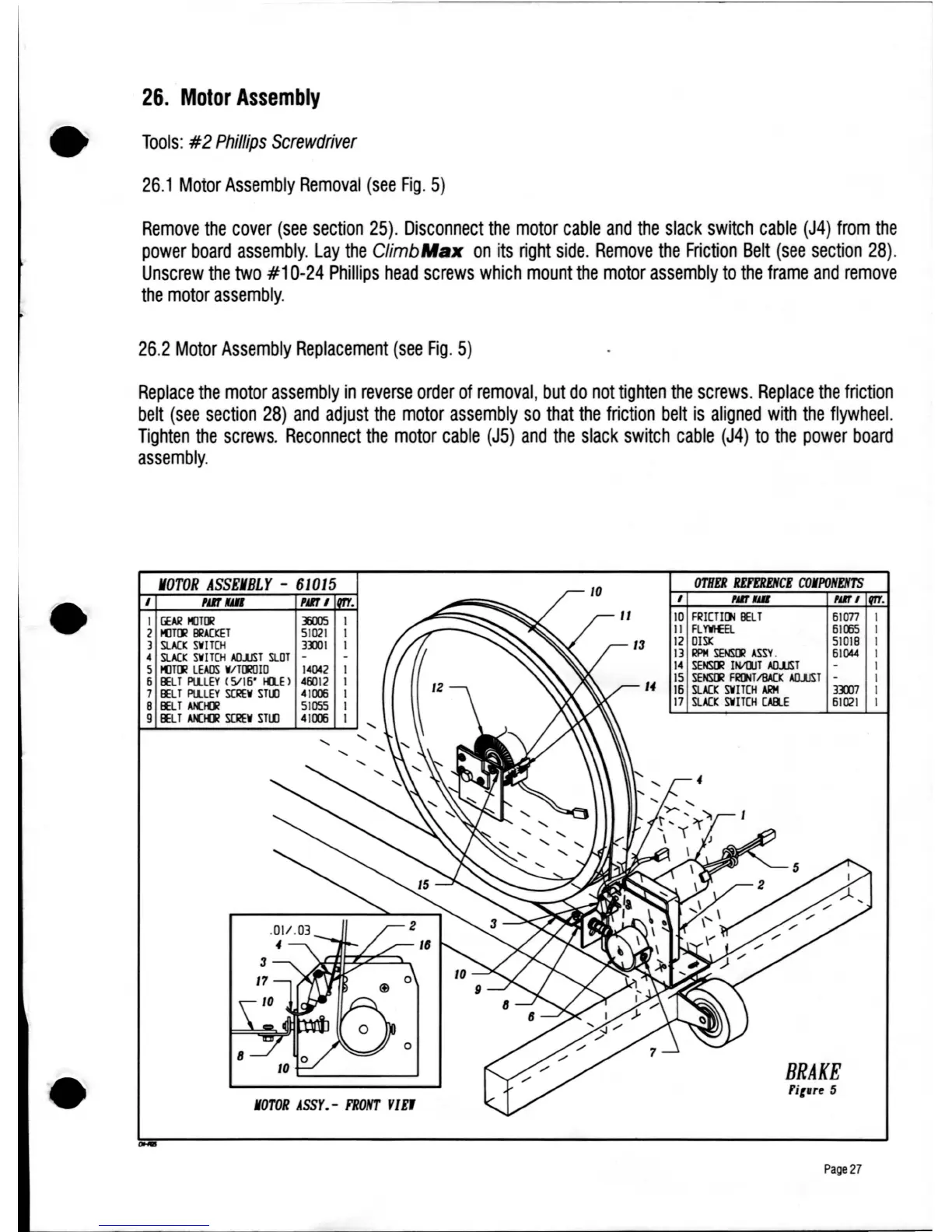

26. Motor Assembly
• Tools: #2 Phillips Screwdriver
26.1 Motor Assembly Removal (see Fig. 5)
Remove the cover (see section 25). Disconnect the motor cable and the slack switch cable (J4) from the
power board assembly. Lay the ClimbAfax on its right side. Remove the Friction Belt (see section 28).
Unscrew the two #10-24 Phillips head screws which mount the motor assembly to the frame and remove
the motor assembly.
26.2 Motor Assembly Replacement (see Fig. 5)
Replace the motor assembly in reverse order of removal, but do not tighten the screws. Replace the friction
belt (see section 28) and adjust the motor assembly so that the friction belt is aligned with the flywheel.
Tighten the screws. Reconnect the motor cable (J5) and the slack switch cable (J4) to the power board
assembly.
•
MOTOR ASSEMBLY - 610 15
I ,mllUl ,ml
I [£Ali! 1flT[)/ EXJ5
2 IflT[JI Bli!ACI(ET 51021
3 SlA[1( SWIT[H 3DJI
4 SlA[(
SWIT[H AOJ.JST SlOT
5 IflT[JI LEADS W/TlJIllIQ 14042
5 II:L T Pl.1.LEY (SlI5· lO.E) 46012
7 II:LT Pl.1.LEY SCIlEW STlIl 41[Oi
B
II:LT OCH[JI 51055
9 II:LT OCH[JI SCI1EW STlIl 4![Oi
IOTOR ASSY. - FRONT VI EJ
10
OTHER REFERENCE CO.PONENTS
I "", lUI ,ur I
10 FIi1I[TI~ II:LT 5IOn
II FL YWI£El 5106S
12 OISI: 510lB
13 Ii1PH SENSrJ! ASSY. 51044
14 SENSrJ1 IwtllT AlLUST
15 SENSrJ1 F~T/IlA(1( AOJ.JST -
14 15 SlACI( SWIT[H ARM IDYl
17 SlACI( SWIT[H CAIl.E 51021
BRAKE
fillTf! 5
Page 27
