Tectrix Climbmax 150 - Parallel Arm Assembly

•
•
•

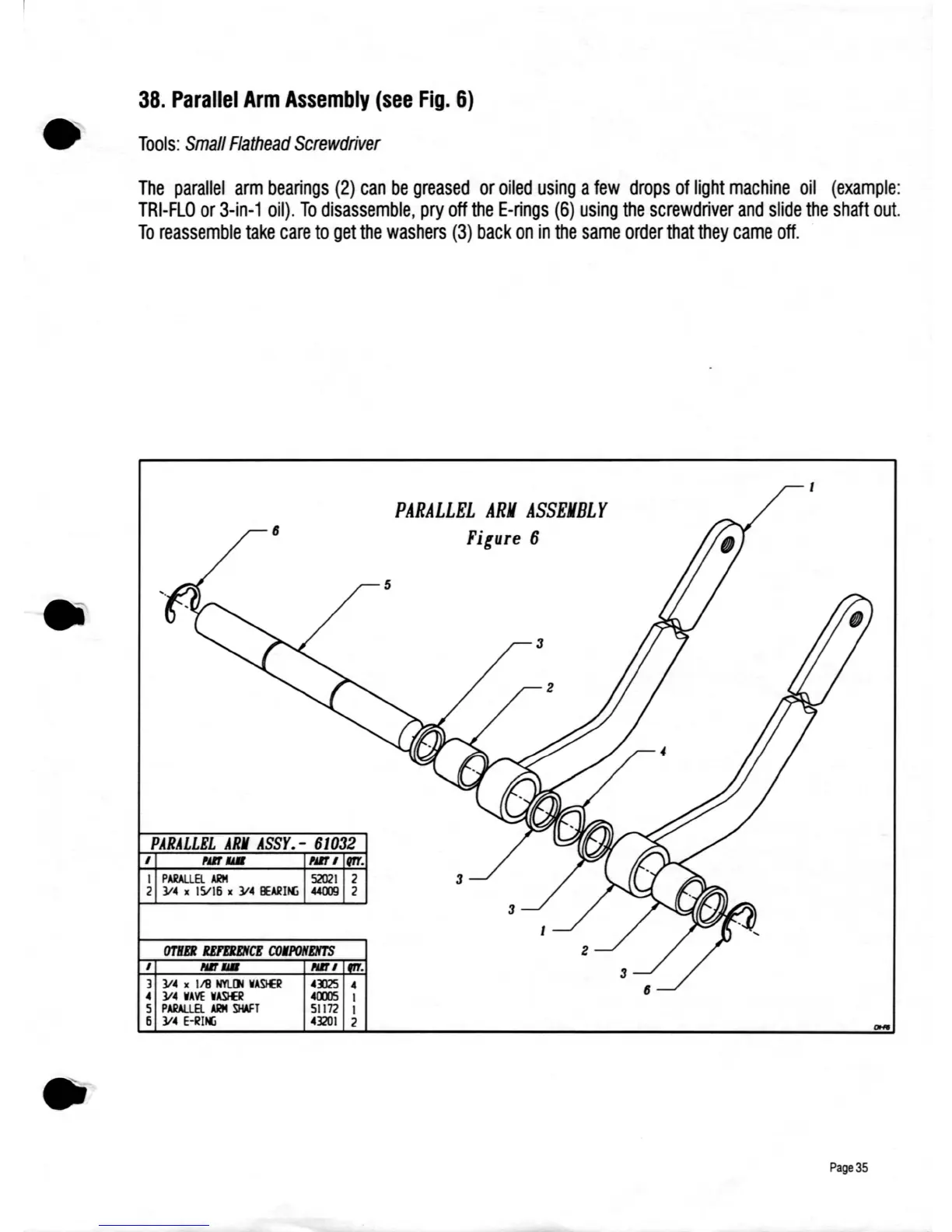

38. Parallel Arm Assembly (see Fig. 6)
Tools: Small Flathead Screwdriver
The parallel arm bearings (2) can be greased or oiled using a few drops of light machine oil (example:
TRI-FLO or 3-in-1 oil). To disassemble, pry off the E-rings (6) using the screwdriver and slide the shaft out.
To reassemble take care to get the washers (3) back on in the same order that they came off.
PARALLEL ARM ASSEMBLY
Fi,ure 6
5
3
PARALLEL ARM ASSY. - 61032
1 NIt lUI Nltl trr.
I PARALLEl ARM 52021 2
2 31-4 x 15116 x 31-4 IEARII(; «OO!I 2
OTHEI IEFElENCE COlPOltEIITS
, NIl,. NIl 1
3 31-4 x liB NYLlIl WASI£R 0)25-4
-4 31-4 WAVE WASI£R -4OOl5 I
5 PARALlR ARM SHAFT 51172 I
6 31-4 E-I1II(; -43201 2
Page 35
