Tectrix Climbmax 150 - Motor, Drive Train, and Pedal Assemblies

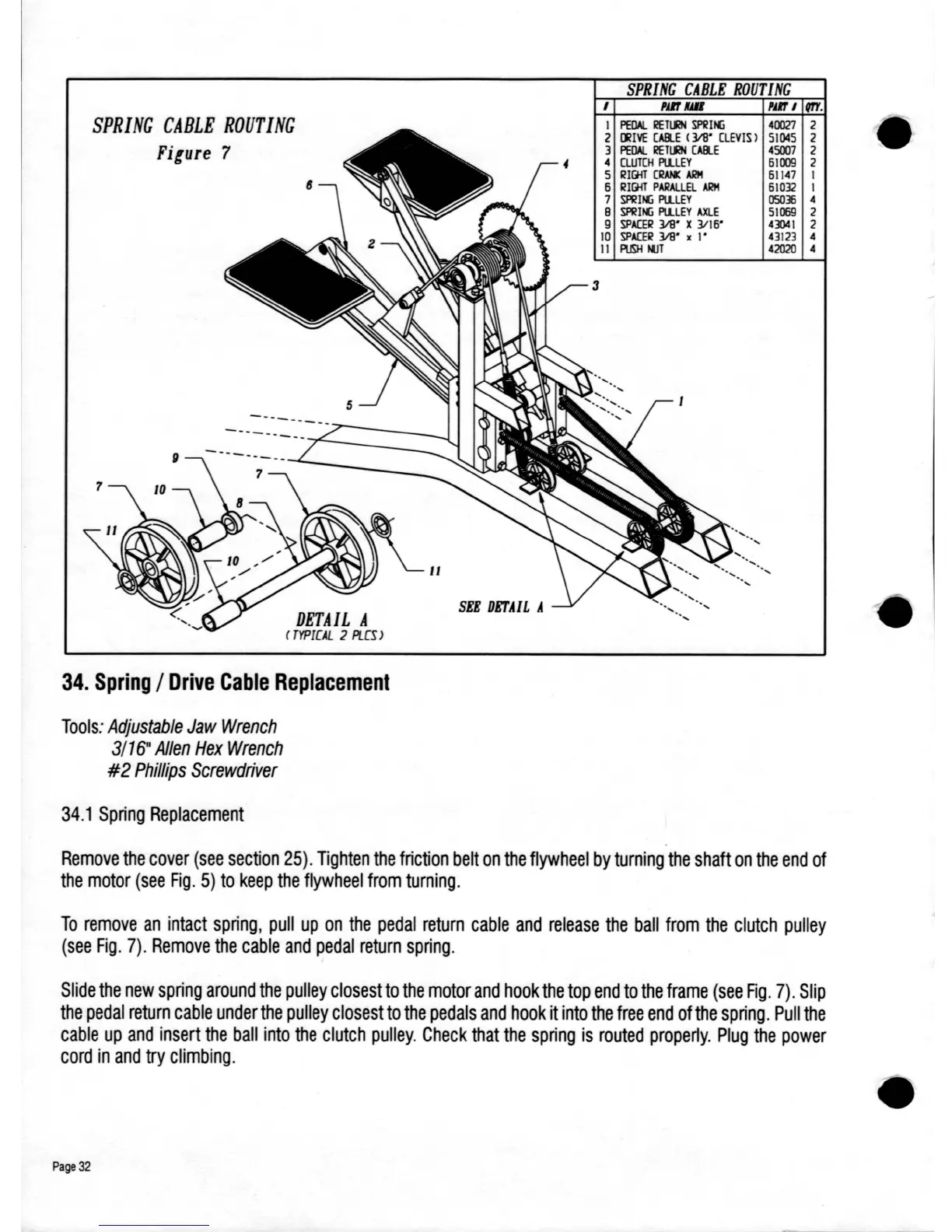

SPRING CABLE ROUTING
----
----
.....
I ,m MIl ,m I (frf.
I PElJAl. lIE TlJ1N SPI1l1li 40027 2
2 (RIVE CAB..E (318· CLEVIS) 51045 2
3 PElJAl. lIETlJ1N CAIl.E 45007 2
4 CLUTCH PU.LEY 51009 2
5 Ii!Ifffi CIi!A/« ARM 51147 I
5 Ii!IGiT PARALLEL ARM 51032 I
7 SPI1ItIi PU.LEY O5O:Ii 4
B SPI1ItIi PU.LEY AXLE 51ffi!l 2
9 SPACEIi! 318· X 3115· 4~1 2
10 SPACEIi! 318· x I· 43123 4
II PLlSH N.lT 42020 4
SEE DETAIL A
II
DETAIL A
(ryp[CAL 2 f't.[S)
----
----
r-- __
----
----
SPRING CABLE ROUTING
Fi,ure 7
34. Spring / Drive Cable Replacement
Tools: Adjustable Jaw Wrench
3/16" Allen Hex Wrench
#2 Phillips Screwdriver
34.1 Spring Replacement
Remove the cover (see section 25). Tighten the friction belt on the flywheel by turning the shaft on the end of
the motor (see Fig. 5) to keep the flywheel from turning.
To remove an intact spring, pull up on the pedal return cable and release the ball from the clutch pulley
(see Fig. 7). Remove the cable and pedal return spring.
Slide the new spring around the pulley closest to the motor and hook the top end to the frame (see Fig. 7). Slip
the pedal return cable under the pulley closest to the pedals and hook it into the free end of the spring. Pull the
cable up and insert the ball into the clutch pulley. Check that the spring is routed properly. Plug the power
cord in and try climbing.
Page 32
