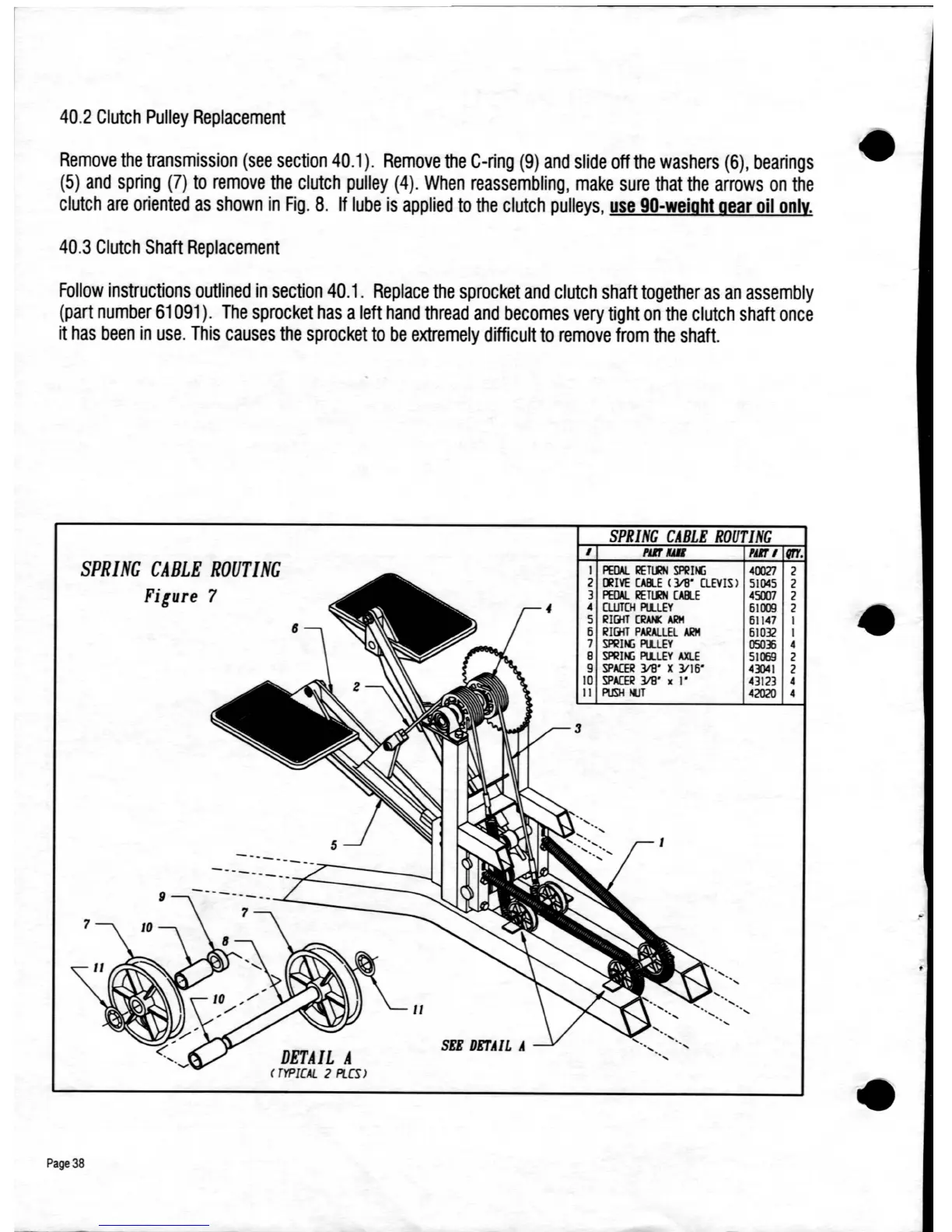

40.2 Clutch Pulley Replacement
Remove the transmission (see section 40.1). Remove the C-ring (9) and slide off the washers (6), bearings
(5) and spring (7) to remove the clutch pulley (4). When reassembling, make sure that the arrows on the
clutch are oriented as shown in Fig. 8. If lube is applied to the clutch pulleys, use gO-weight gear oil only.
40.3 Clutch Shaft Replacement
Follow instructions outlined in section 40.1. Replace the sprocket and clutch shaft together as an assembly
(part number 61091). The sprocket has a left hand thread and becomes very tight on the clutch shaft once
it has been in use. This causes the sprocket to be extremely difficult to remove from the shaft.
•
•
SPRING CABLE ROUTING
I 1m lUI 1m I ",.
I PEDAl. I/ETlJi!N SAW(; 40027 2
2 [J/lVE CAIl.E (318" CLEVIS) 51045 2
3 PEDAl. I/ETlJi!N CAIl.E 45007 2
4 CLUTCH PU.LEY 6100!l 2
5 '!IOO CIW« AI1M 61147 I
6 '!IOO PARALLEL AI1M 61032 I
7 SP5!II(j PU.LEY 05036 4
B
SP5!II(j PU.LEY AXLE 5UIi!l 2
9 SPACE'! 318" X 3116" 0>41 2
10 SPACE5! 318" x I" 43123 4
II PUSH ItlT 42020 4
SEE DETAIL A
II
DETAIL A
(TYPICAL 2 P!..CS)
---- ..
----
T- _
----
SPRING CABLE ROUTING
Filure 7
Page 38
