2. HARDWARE SETUP
DC-395 Series User’s Manual
77
2.1 Board Layout

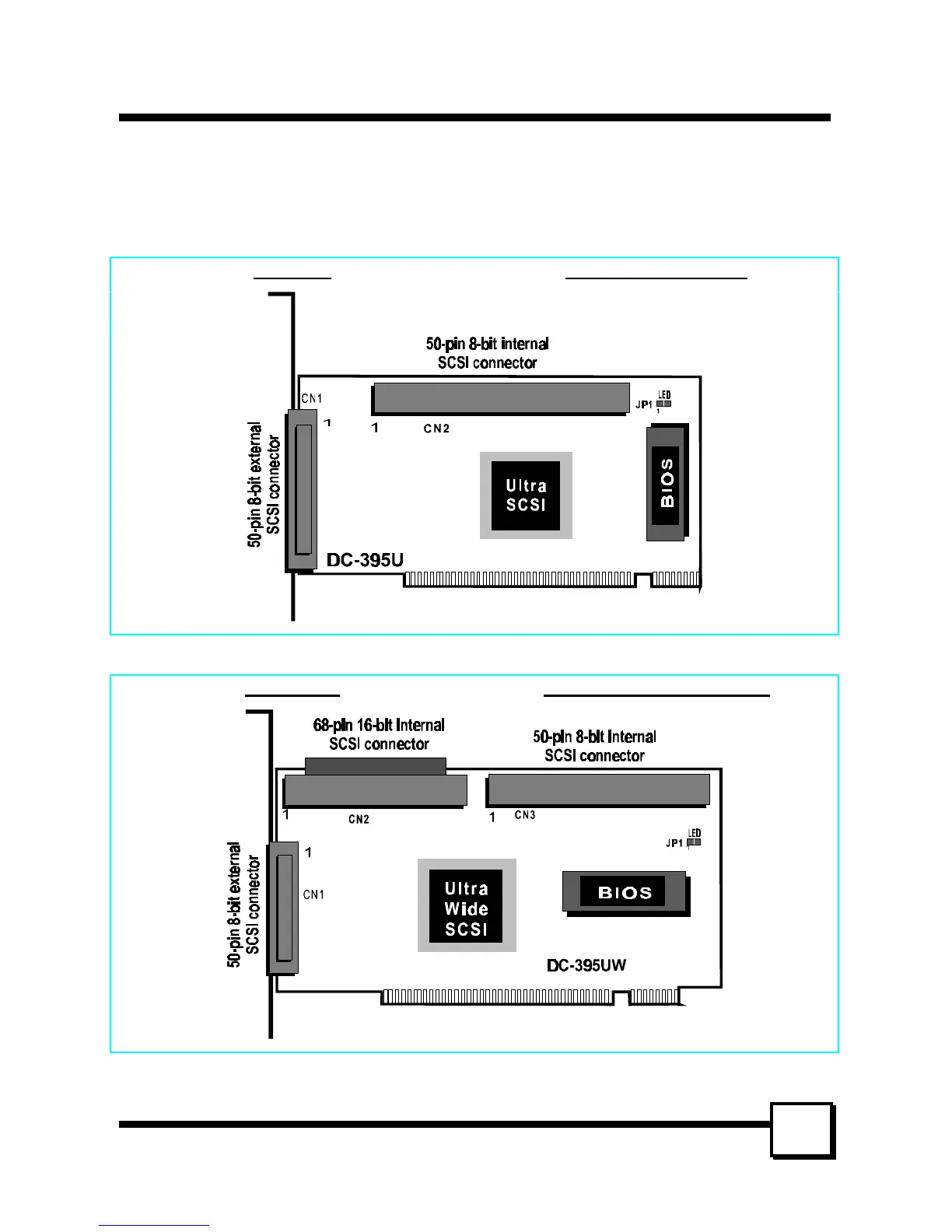

The following figures illustrate the jumper and connector locations for the DC-395 Series
PCI SCSI Host Adapters:
DC-395U Ultra SCSI-3 adapter
DC-395UW Ultra WideSCSI-3 adapter
