6-13
8The isolation transformer (item 13) is an important SAFETYitem. The switching power supply of the 2430 has areas that float at
the ac-source potential, and a serious shock hazard exists when the power supply safety shield isremoved to permit trouble-
shooting if power is applied directly from the ac-source.
Description Specification
Usage Example
1. Soldering Iron
15 to 25 W. General soldering and
Antex Precision Model C.
unsoldering.
2. Torx Screwdrivers Torx tips #T7, #T9,
Assembly and disassembly.
Tektronix Part Numbers:
#T10, #T15, and #T20.
003-1293-00
003-0965-00
003-0814-00
003-0966-00
003-0866-00.
3. Nutdrivers
1/4 inch, 7/32 inch, 5/16 Assembly and disassembly. Xcelite #7, #8, #10, #16,
inch, 1/2 inch, and 9/16 and #18.
inch.
4. Open-end Wrench
9/16 inch and 1/2 inch. Channel Input and Ext Trig Tektronix Part Numbers:
BNC Connectors.
9/16 in. 003-0502-00
1/2 in. 003-0822-00.
5. Hex Wrenches
0.050 inch, 1/16 inch.
Assembly and disassembly. Allen Wrenches.
6.
Long-nose Pliers
Component removal and Diamalloy Model LN55-3.
replacement.
7.
Diagonal Cutters
Component removal and Diamalloy Model M554-3.
replacement.
8.
Vacuum Solder No static charge retention. Unsoldering static sensitive Pace Model PC-10.
Extractor
devices and components on
multilayer boards.
9.
Contact Cleaner No-Noise R. Switch and pot cleaning and
Tektronix Part Number:
and lubricant lubrication.
006-0442-02.
10. Pin-Replacement Kit
Replace
circuit
board con- Tektronix Part Number:
nector pins. 040-0542-00.
11. IC-Removal Tool
Removing DIP IC packages. Augat T114-1.
12. Isopropyl Alcohol
Reagent grade. Cleaning attenuator and 2-lsopropanol.
front-panel assemblies.
13. Isolation Isolate the instrument from
Tektronix Part Number
Transformers
the
ac
power
source
for
006-5953-009.
safety.
14. 1X Probe
Power supply ripple check.
TEKTRONIX
P6101
Probe
(1X) Part Number 010-6101-
03.

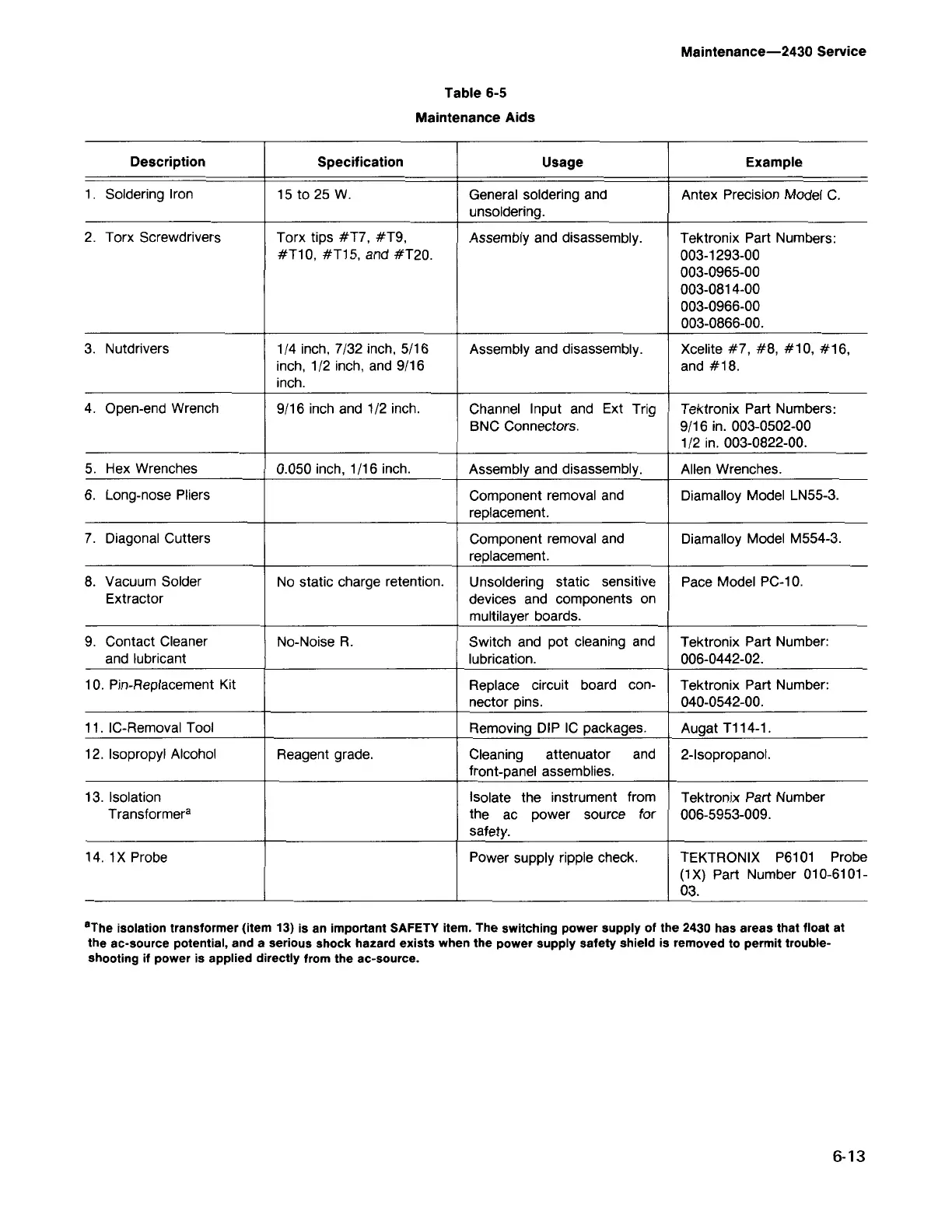

Table
6-5
Maintenance Aids
Maintenance-2430 Service
