1. Leveled Sine-Wave
Frequency: 250 kHz to
above 70
Vertical,
horizontal, and
TEKTRONIX SG 503
Generator
MHz. Output amplitude: variable from
triggering checks
and Leveled Sine Wave
10 mV to 5 V pop.Output impedance: adjustments.
Generator.s
50
Q.
Reference frequency: 50 kHz.
Amplitude accuracy:
constant within
3% of reference frequency as output
frequency changes.
2. Calibration
Standard-amplitude signal levels: 5
Signal source for gain.
TEKTRONIX PG 506
Generator
mV to 50 V. Accuracy: ± 0.25%, ± 1
Calibration Gensrator.s
p.V.Repetition Rate: 1 kHz. High-
amplitude signal levels: 1 V to 60 V.
Repetition rate: 1 kHz. Fast-rise
signal level: 100 mV to 1 V.
Repetition rate: 100 Hz to 100 kHz.
Rise time: 1 ns or less. Flatness:
±0.5%.
3. Time-Mark Marker outputs: 10 ns
to
0.5 s. Horizontal checks.
TEKTRONIX TG 501
Generator Marker accuracy: ±0.1%. Trigger
Time Mark Generator."
output: 1 ms to 0.1
Il-S,
time-
coincident with markers.
4. Function Generator Range: less than 1 Hz to 50 kHz;
Low-frequency checks. TEKTRONIX FG 502
sinusoidal output; amplitude variable
Function Generator.s
to greater than 10 V pop open circuit
with dc offset adjust.
5. Power Supply Range: 0 to 20 VDC.
50
Q
Overload verification.
TEKTRONIX PS 503A
Power Supply.a
6. Digital Voltmeter Range: 0 to 140 V. Dc voltage accu- XY Plotter output
TEKTRONIX DM 501A
(DMM) racy: ±0.15%. 4 1/2 digit display. verification.
Digital Multimeter.a
7.
GPIB Controller
Conform to IEEE-488 (1978) standard. Check GPIB operation.
TEKTRONIX 4041 Sys-
tem Controller.
8. GPIB Cable Conform to IEEE-488 (1978) standard.
Check GPIB operation. Tektronix Part Number
012-0630-03.
9. Coaxial Cable Impedance: 50
Q.
Length: 42 in. Con-
Signal interconnection.
Tektronix Part Number
(2 required) nectors: BNC.
012-0057-01.
10. Precision Coaxial Impedance: 50
Q.
Length: 36 in. Con- Used with
Calibration Tektronix Part Number
Cable nectors: BNC.
Generator. 012-0482-00.
11. Termination Impedance: 50
Q.
Connectors: BNC.
Signal termination.
Tektronix Part Number
011-0049-01.
12. 10X Attenuator Ratio: 10X. Impedance: 50
Q.
Con-
Vertical and triggering Tektronix Part Number
(2 required)
nectors: BNC. checks.
011-0059-02.
13. 5X Attenuator Ratio: 5X. Impedance: 50
Q.
Connec-
Vertical and triggering
Tektronix Part Number
tors: BNC.
checks. 011-0060-00.
NOTE: Item numbers
21
through
25
are needed for checking the 2430 TV Option 05 only.

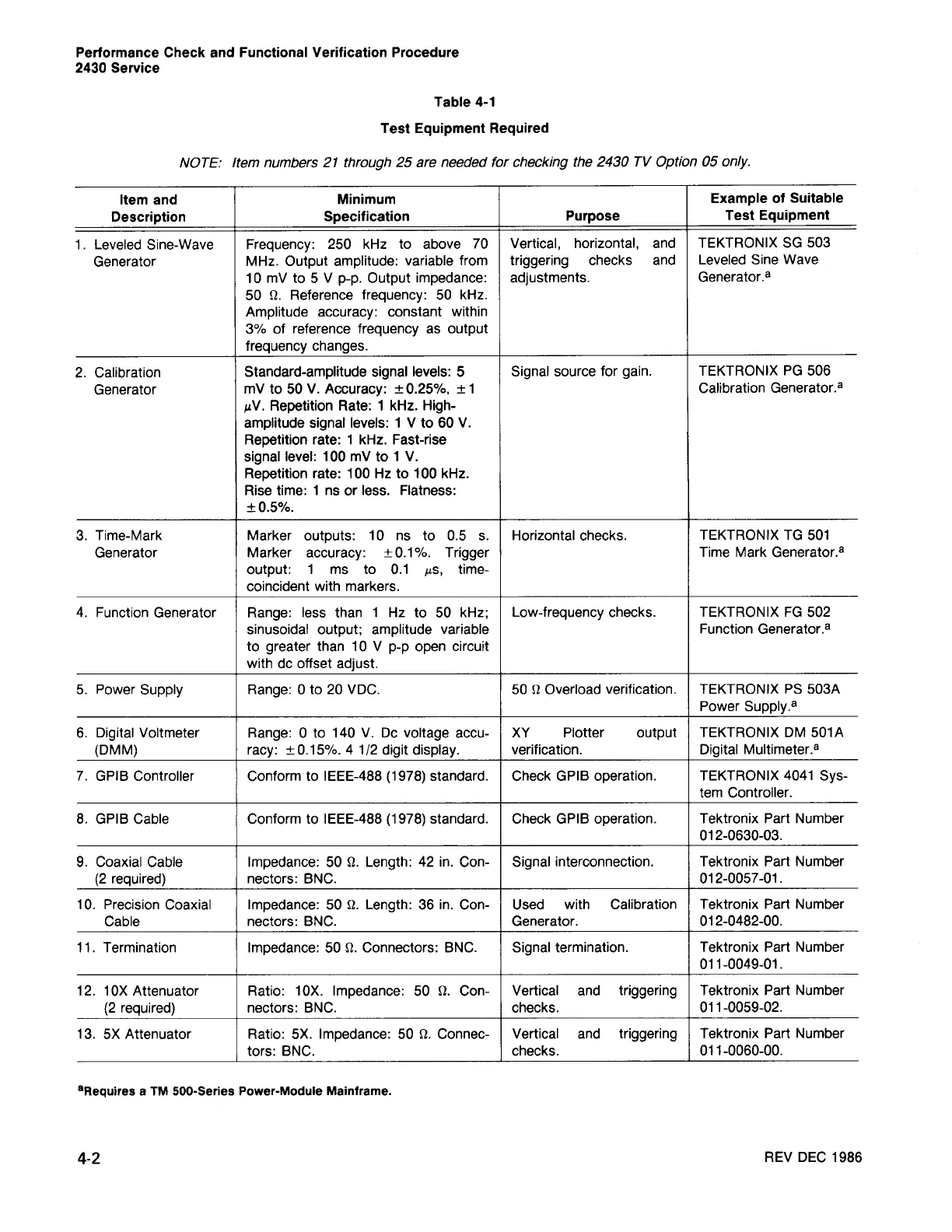

Table 4-1
Test Equipment Required
Performance Check and Functional Verification Procedure
