4-3
REV DEC 1986
8Requires a TM SOO-SeriesPower-Module Mainframe.
Item and Minimum
Example of Suitable
Description Specification
Purpose Test Equipment
14. 2X Attenuator
Ratio: 2X. Impedance: 50 n. Connec- External
triggering Tektronix Part Number
tors: BNC.
checks. 011-0069-02.
15. Alignment Tool
Length: 1 in. shaft. Bit size:
3/32 in. Adjust
variable
capaci-
Tektronix Part Number
Low capacitance; insulated. tors and resistors.
003-0675-00.
16. 10X Standard
DC to 250 MHz probe. Signal input connector. TEKTRONIX P6130.
Accessory Probe
(supplied with
instrument)
17.
1X Probe DC to 34 MHz probe.
Signal input connector.
Tektronix Part Number
010-6101-03. P6101.
18. Dual-Input Coupler Connectors
BNC female-to-dual-BNC
Signal interconnection.
Tektronix Part Number
male.
067 -0525-01.
19.
BNC Female-to-
Connectors
BNC female-to-dual-
Signal interconnection.
Tektronix Part Number
Dual Adapter banana male.
103-0090-00.
20. Normalizer
Input Resistance: 1 Mn. Input Capaci-
Check input capacitance. Tektronix Part Number
tance: 15 pF.
067 -0681-01.
21. Pulse Generator Period Range: 1 ms to 2 J.LS.Pulse
Check TV triggers for TEKTRONIX PG 502
Range: 0.5 ms to 1 J.Ls.Amplitude sync separation, Option
Pulse Gensrator.s
variable from - 5 to
+
5 V,
05 only.
independent pulse top and pulse
bottom.
22. Sync and Linearity
Conforms
to
TV
System
require- Check
TV triggers
for TEKTRONIX R147A
Test Generator
ments.
back-porch clamp opera-
NTSC Test Signal Gen-
tion.
erator. TEKTRONIX
R148 Insertion Test Sig-
nal Generator.
23.
Sine-Wave
Frequency:
adjustable
to 60 Hz. Check
TV triggers for
TEKTRONIX SG 502
Oscillator
Amplitude: adjustable to 3 V p-p into
back-porch clamp opera- Oscillator.a
75 n.
tion.
24.
Coaxial Cable
Impedance: 75 n. Length: 42 in. Con-
Signal interconnection.
Tektronix Part Number
(2 required)
nectors: BNC.
012-0074-00.
25. Termination
Impedance: 75 n. Connectors: BNC.
Signal termination.
Tektronix Part Number
011-0055-00.

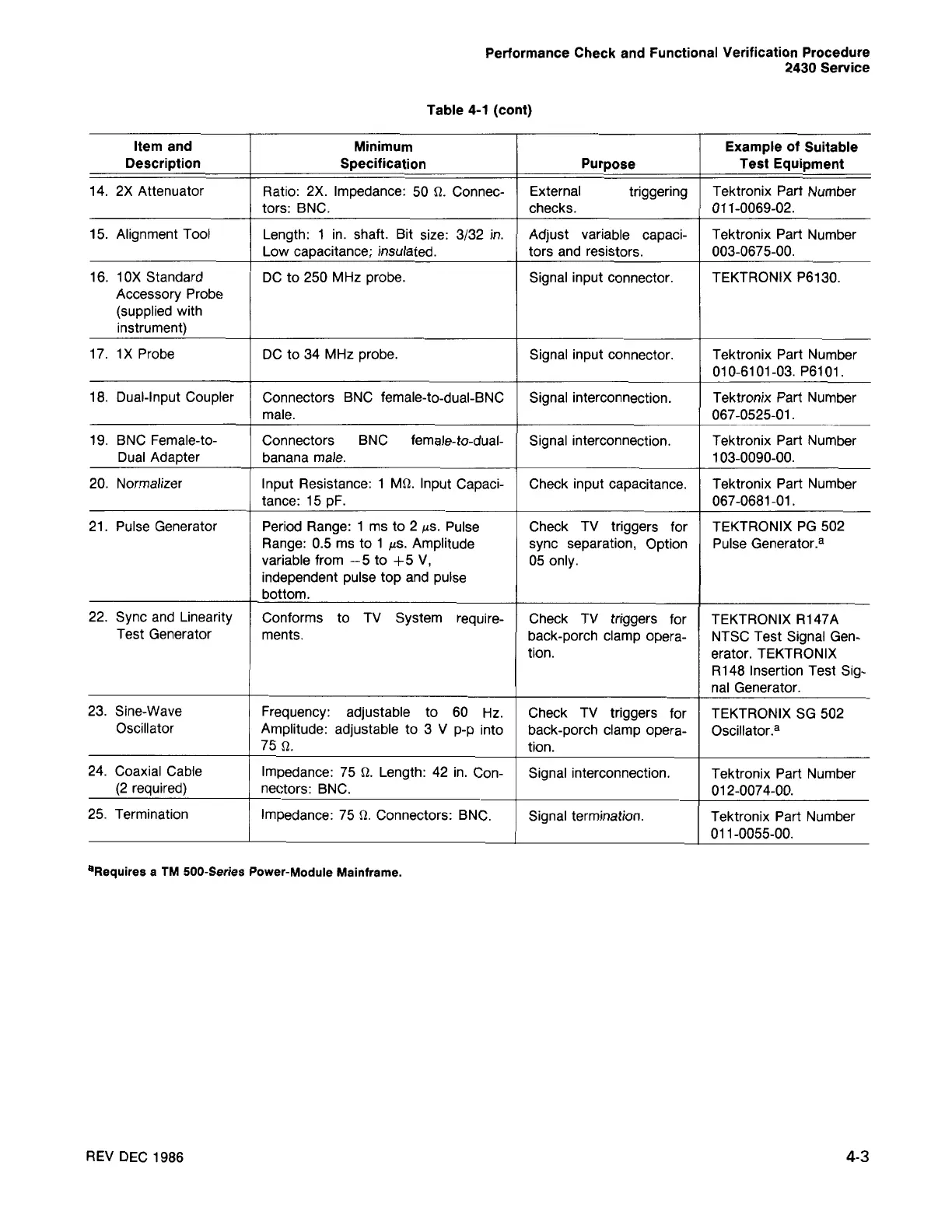

Table 4-1 (cont)
Performance Check and Functional Verification Procedure
2430 Service
