Tektronix 2430 Service Manual

ON
OFF
OPEN
Plot Graticule
Plot Readout
PENLIFT
x- Y PLOTTERSetup (OUTPUT)
Interlaced Coupling
FIELD1
Noninterlaced Coupling
FIELD1
TV SYNC
- (minus)
CLAMP
OFF
Line Count
525
Line Start
Prefld
VIDEOOPTIONSetup (SET TV)
RUNS AFTER
CH 1
DC
+ (plus)
1/2(512)
0.0
...,.. 1
Minimum
B TRIG MODE
SOURCE (both)
COUPLING (both)
SLOPE (both)
TRIG POSITION
LEVEL (both)
EXT GAIN (both)
HOLDOFF
6-104
DEBUG OFF
LONG ON
PATH ON
RQS Mask
ON
OPC Mask ON
CER Mask ON
EXR Mask ON
EXW Mask ON
INR Mask ON
USER Mask OFF
PID Mask OFF
DEVDEP Mask OFF
Data Encoding (ENCDG) RPBINARY
Data Target REF 1
Data Source CH 1
FASTXMIT OFF
CURVE ONLY OFF
GPIBSETUP(OUTPUT)
CURSOR/DELA Y Knob CURSOR POSITION
CURSOR FUNCTION All off
VOLTS UNITS VOLTS
TIME UNITS
SEC
SLOPE UNITS VOLTS/SEC
CURSOR Mode
~
ATIACH CURSORS TO:
CH 1
X-Axis Cursor Position ± 3 divisions
Y-Axis Cursor Position ± 3 divisions
TIME Cursor Position ± 4 divisions
VOLTS Ref Value 1.0 V
TIME Ref Value 1.0 SEC
SLOPE Ref Value
1.0 V/SEC
CURSOR Controls
Don't Care (all x)
HEX
ASYNC
Word Match
RADIX
CLOCK
WORD RECOGNIZER (SET WORD)
SELECT DISP
DISP Intensity
40%
READOUT Intensity
50%
GRAT ilium
0%
INTENS Level 80%
VECTORS
ON
INTENSITY Controls TRIGGER Controls
AlB TRIG set for A
A TRIG MODE AUTO LEVEL

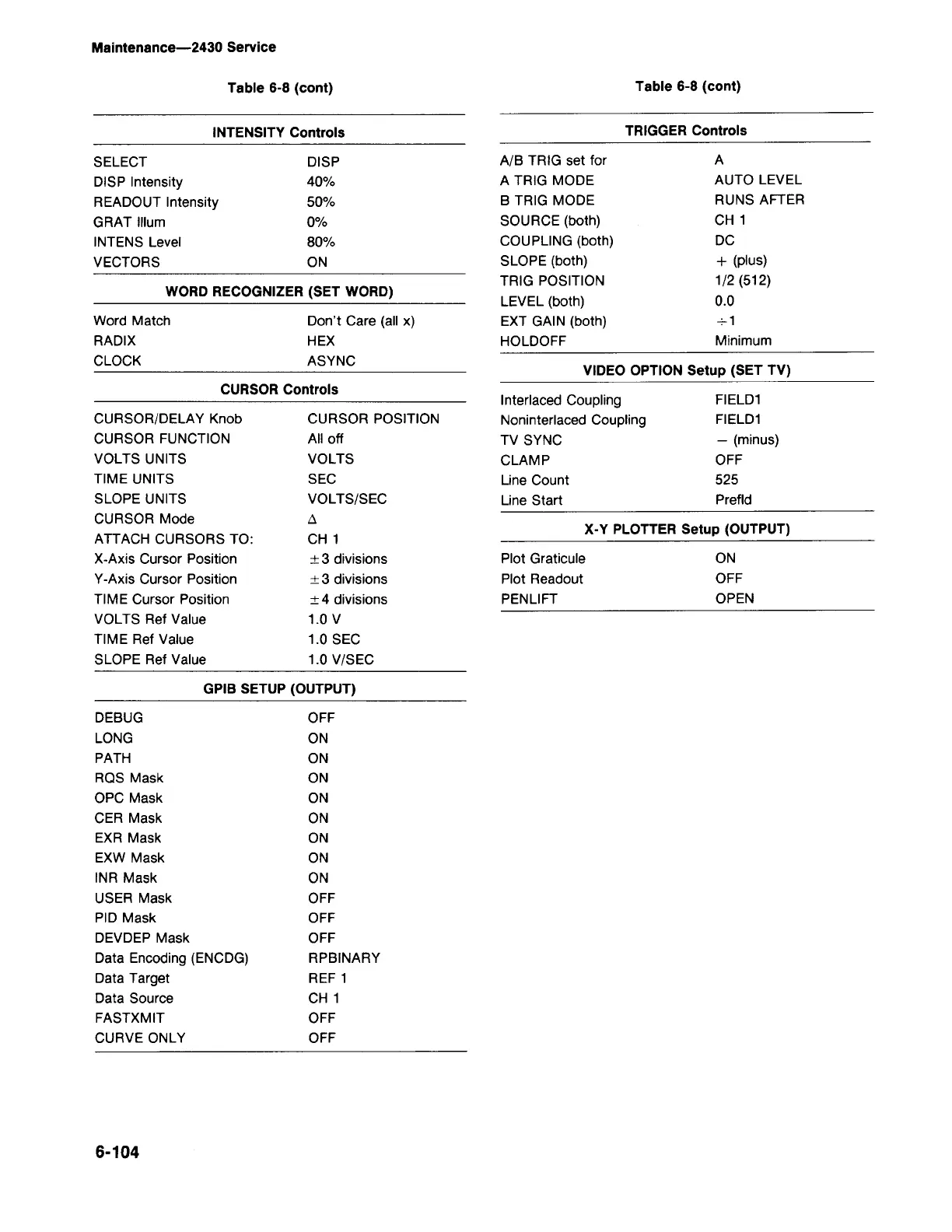

Table 6-8 (cont) Table 6-8 (cont)
Maintenance-2430 Service
