GPIB Setup

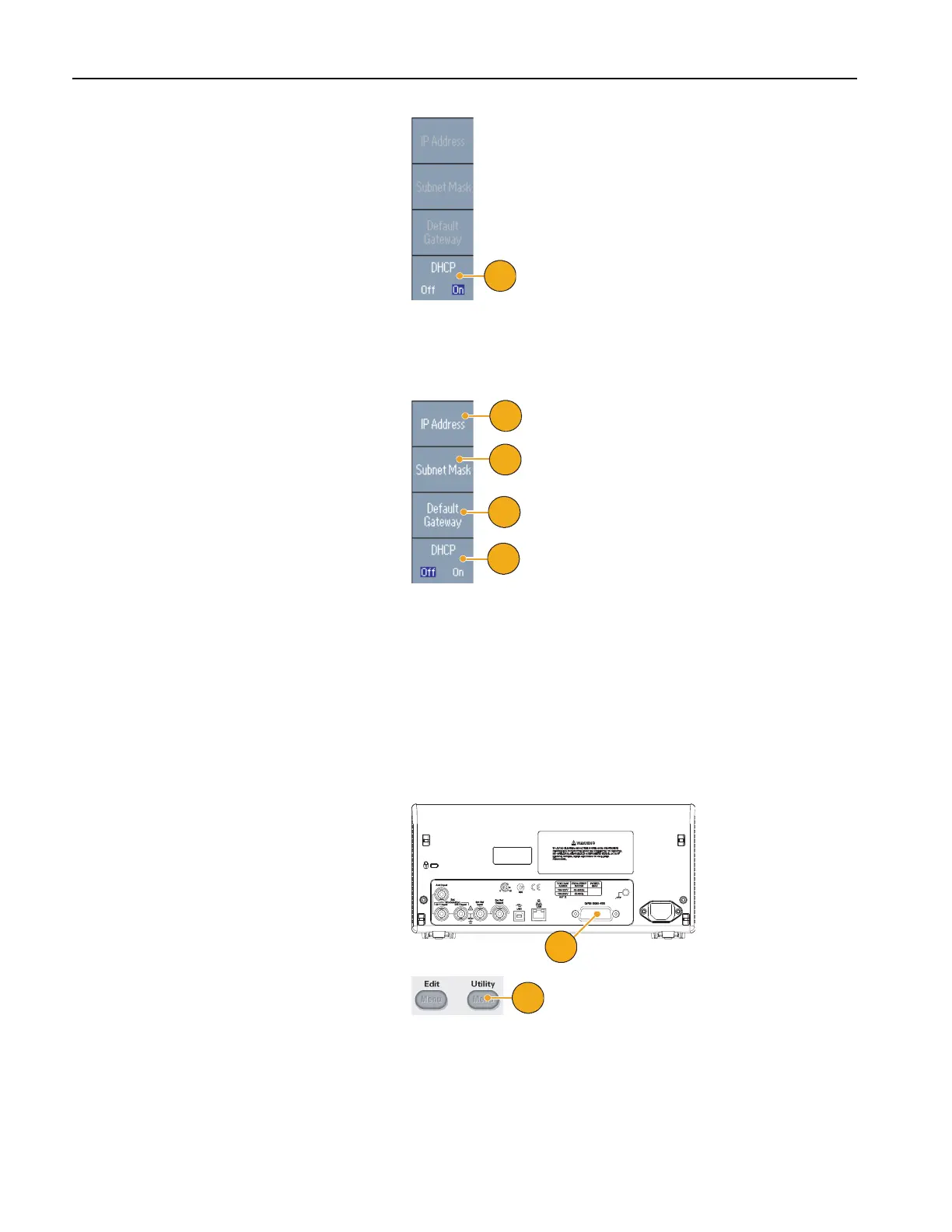

To set the instrument GPIB interface, follow these steps:
4. The Ethernet Network Settings menu
is displayed.
By selecting the DHCP On, the instru-
ment can set its network address auto-
matically through DHCP.
If you cannot establish communication by
setting DHCP On, you need to set up an IP
Address manually and a Subnet Mask if
necessary. Follow these steps:
5. Display the Ethernet Network Settings
menu and select DHCP Off.
6. Push the IP Address bezel button to
enter an IP address. You need to con-
tact your network administrator to get
the IP address to use.
7. Push the Subnet Mask bezel button to
enter a Subnet Mask. Ask your net-
work administrator whether a subnet
mask is required.
8. Push the Default Gateway bezel but-
ton to enter a gateway address. Ask
your network administrator for the
gateway address.
1. Connect a GPIB cable to the rear panel
GPIB port.
2. Push the front-panel Utility button.
4
6
8
7
5
1
2
