Tektronix AFG3000 Series User Manual

Operating Basics
AFG3000 Series Quick Start User Manual
49
Invert Waveform
To invert a waveform, use the Output menu.

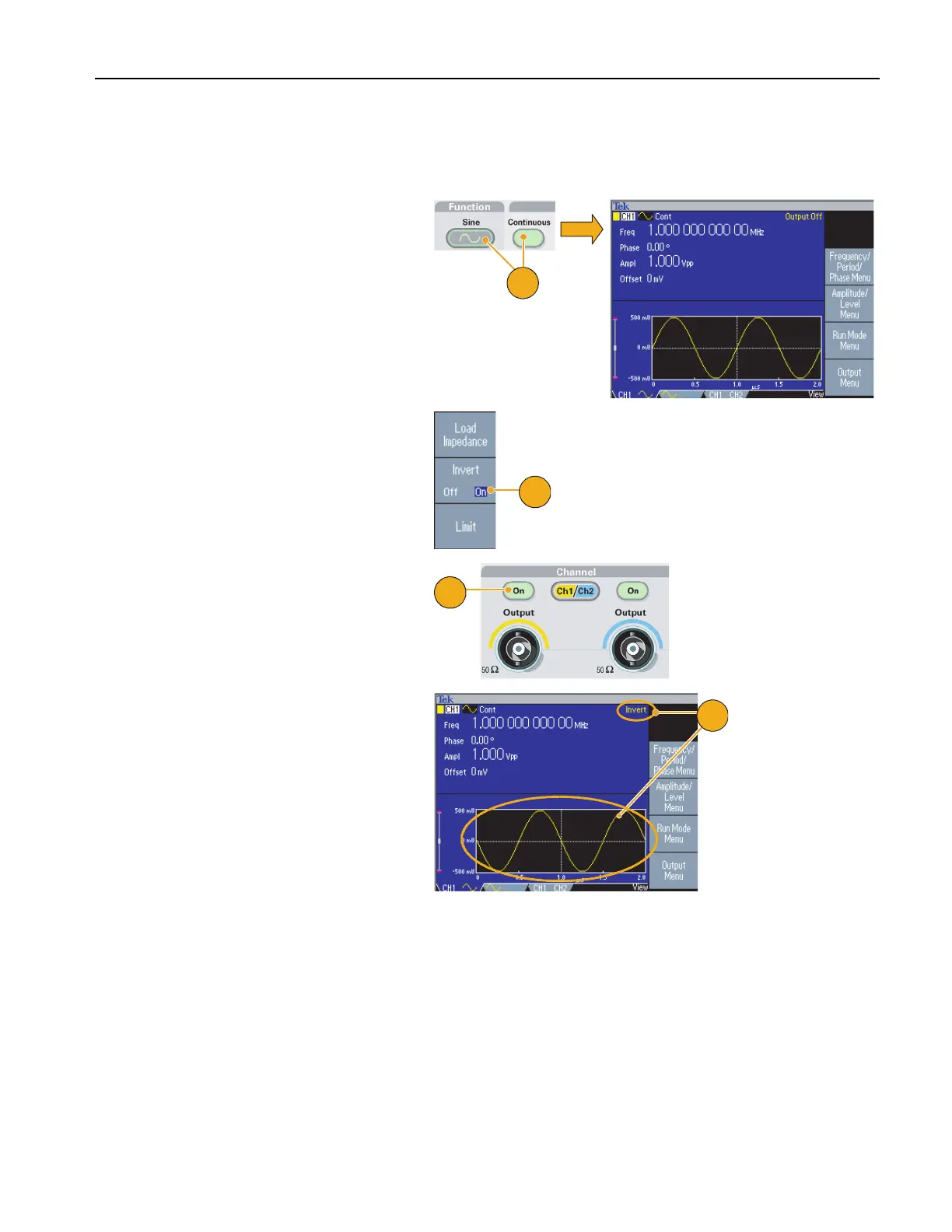

1. Push the front-panel Sine > Continu-
ous button.
2. Follow the steps described on page 48
to display the Output Menu.To invert a
waveform, push the Invert bezel
button to select On.
3. Push the front-panel CH1 Output On
button to enable the output.
4. To confirm an inverted waveform, push
the front-panel Sine button again.
The displayed waveform is inverted and
the Output Status (see page 22) is
changed from Output Off to Invert.
1
2
3
4
