Getting Acquainted with Your Instrument
AFG3000 Series Quick Start User Manual
23
View Button
The instrument provides the following three screen view formats:
■ Waveform parameter and graph display
■ Graph comparison
■ Waveform parameter comparison
Quick Tips
■ If currently in the Save, Recall, Utility, Help, or Output menu, pushing the View button will have no effect.
■ When the instrument is in the Edit menu, pushing the View button will toggle between Edit text and graphical views.
This is the only function of the single-channel model view button.

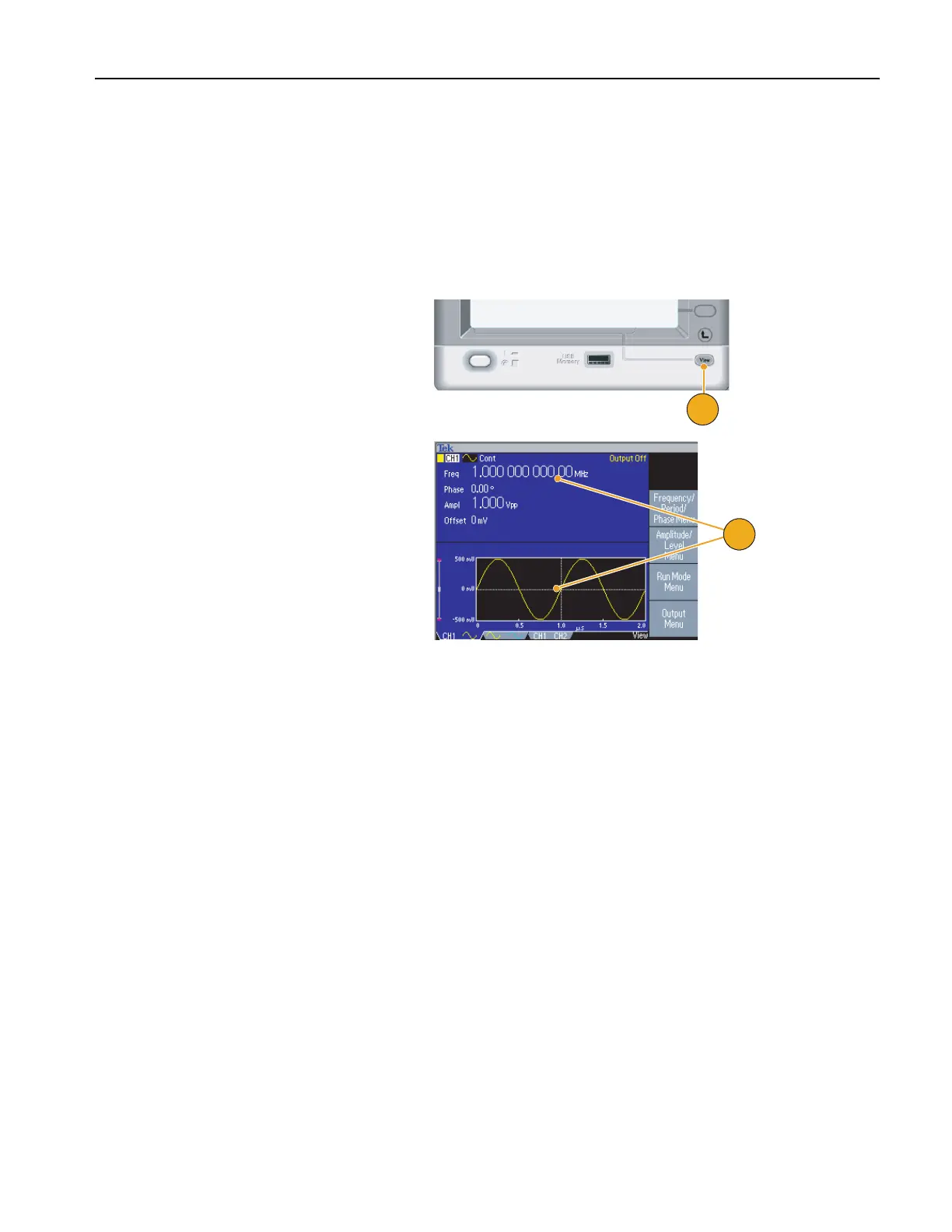

1. To change the screen display format,
push the front-panel View button.
2. The first format provides the single
channel waveform parameters and
graph display.
(Dual-channel model only):
You can easily toggle the CH1 and CH2
information by pushing the channel
select button (see page 31).
When you push the View button once,
the view format is changed to the graph
comparison format.
Push the View button again to display
the third format. This view provides the
channel parameter comparison.
1
2
To Next Page
