Tektronix AFG3000 Series User Manual

Operating Basics
50 AFG3000 Series Quick Start User Manual
Add Noise
To add the internal noise signal to a waveform, use the Output menu.
Quick Tips
■ An internal noise generator (digital) is used to add noise.
■ CH1 and CH2 noises are non-correlating.

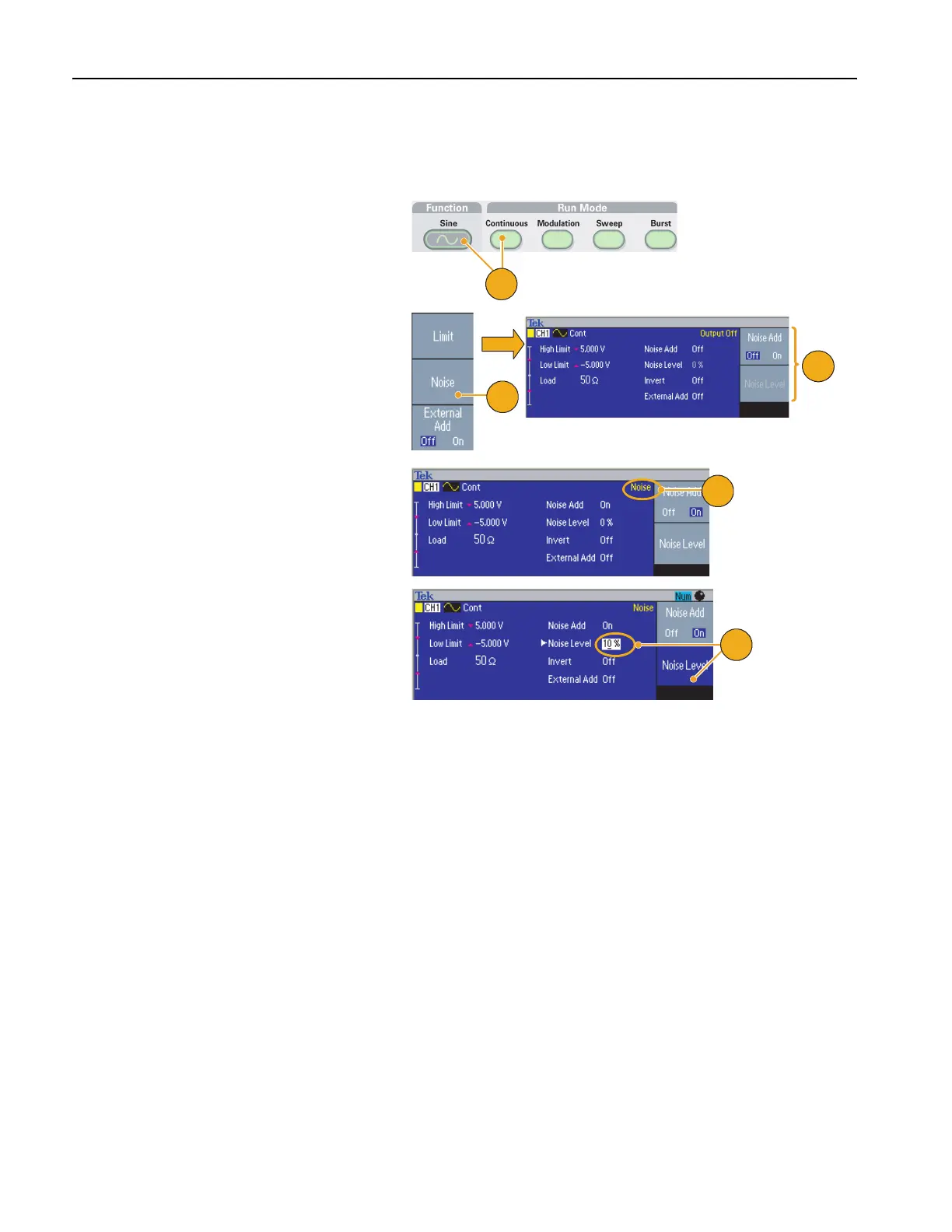

1. Push the front-panel Sine > Continu-
ous button to display the Sine wave-
form screen in this example.
2. Follow the steps described on page 48
to display the Output Menu. To add
noise to a sine waveform, push Noise.
3. The Noise Add submenu is displayed.
Push Noise Add to select On.
4. Push the front-panel CH1 Output but-
ton to enable the output. The Output
Status (see page 22) is changed from
Output Off to Noise.
5. To adjust the noise level, push Noise
Level. Use the general purpose knob
or the numeric pad to enter the value.
1
2
3
4
5
