Quick Tip
The following conversion table shows the relationship between V
p-p
, V
rms
, and dBm.

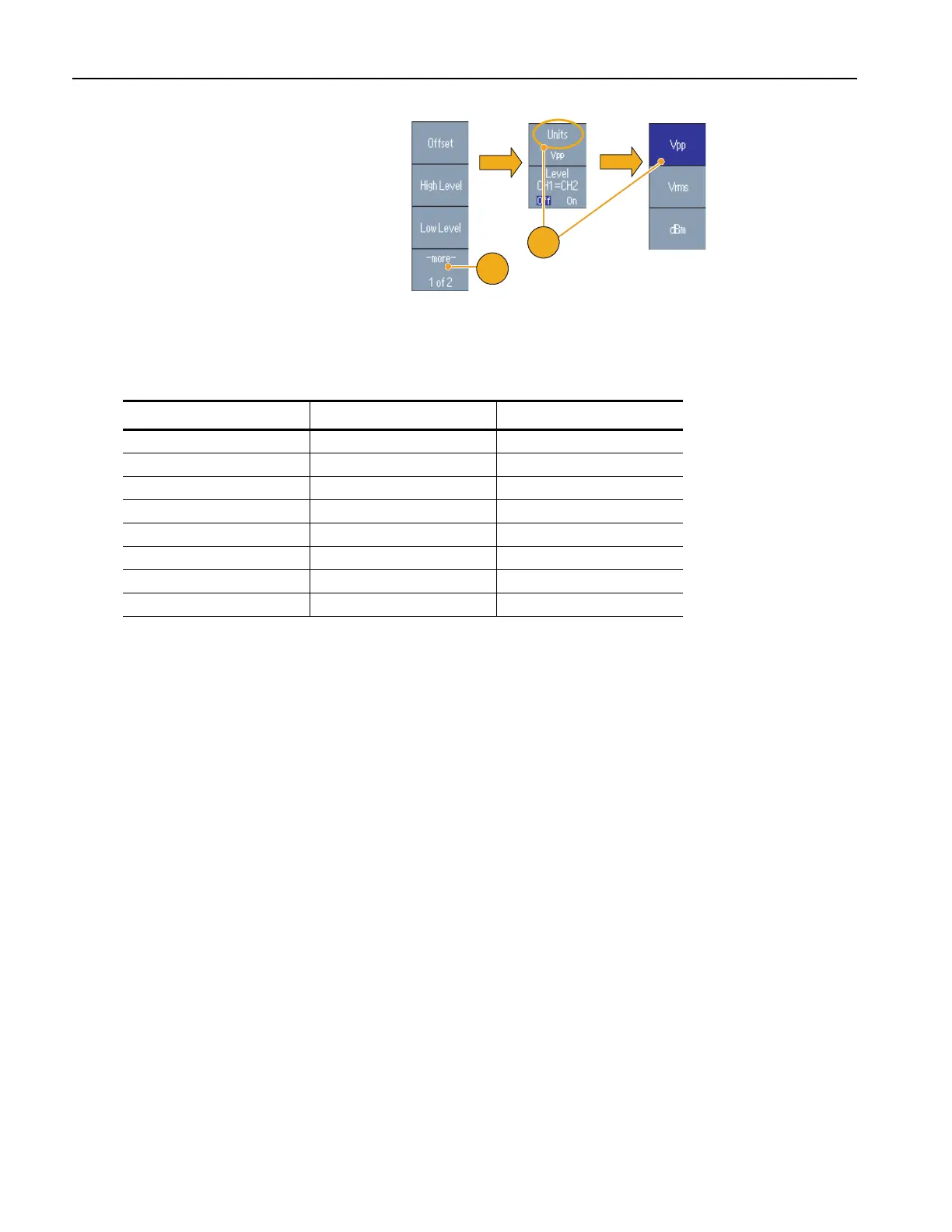

8. To change the amplitude units, push
the -more- bezel button to display the
second page.
9. Push the Units bezel button to display
units selection bezel menu. By default,
V
p-p
is selected.
V
p-p
V
rms
dBm
10.00 V
p-p
3.54 V
rms
+23.98 dBm
2.828 V
p-p
1.00 V
rms
+13.01 dBm
2.000 V
p-p
707 mV
rms
+10.00 dBm
1.414 V
p-p
500 mV
rms
+6.99 dBm
632 mV
p-p
224 mV
rms
0.00 dBm
283 mV
p-p
100 mV
rms
-6.99 dBm
200 mV
p-p
70.7 mV
rms
-10.00 dBm
10.0 mV
p-p
3.54 mV
rms
-36.02 dBm
8
9
