Operating Basics
AFG3000 Series Quick Start User Manual
47
Amplitude

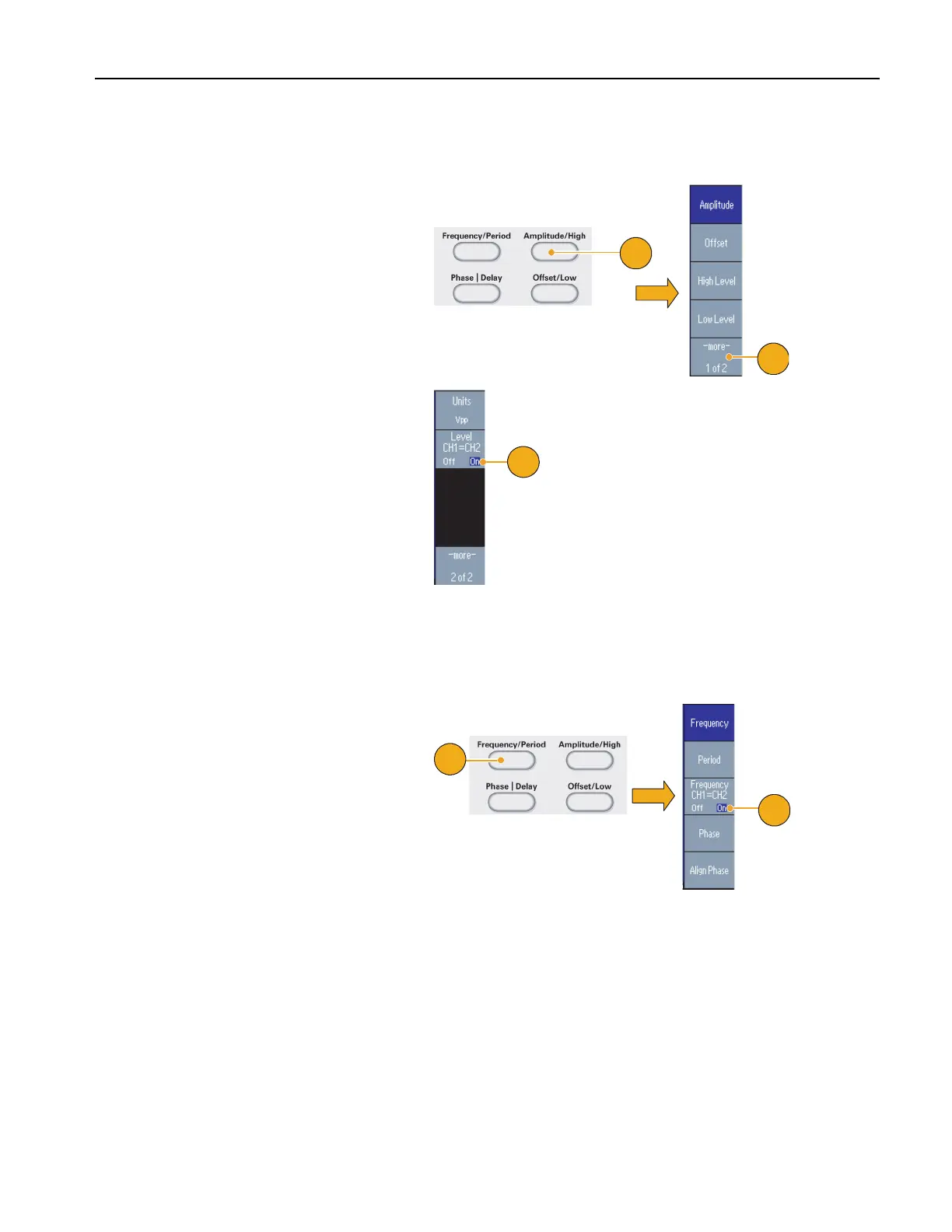

To set the CH1 amplitude and CH2 amplitude to the same level, follow these steps:
Frequency (Period)
To set the CH1 frequency and CH2 frequency to the same value, follow these steps:
1. Push the front-panel Amplitude/High
shortcut button.
2. Push the -more- bezel button.
3. Page two of Amplitude/Level Menu is
displayed.
You can set the CH1 and CH2 ampli-
tude to the same level by selecting On
in the second bezel menu from the top.
1. Push the front-panel Frequency/Period
shortcut button to display the
Frequency/Period Parameter Menu.
2. You can set the CH1 and CH2 frequency
to the same value by selecting On in the
third bezel menu from the top.
1
2
3
2
1
To Next Page
