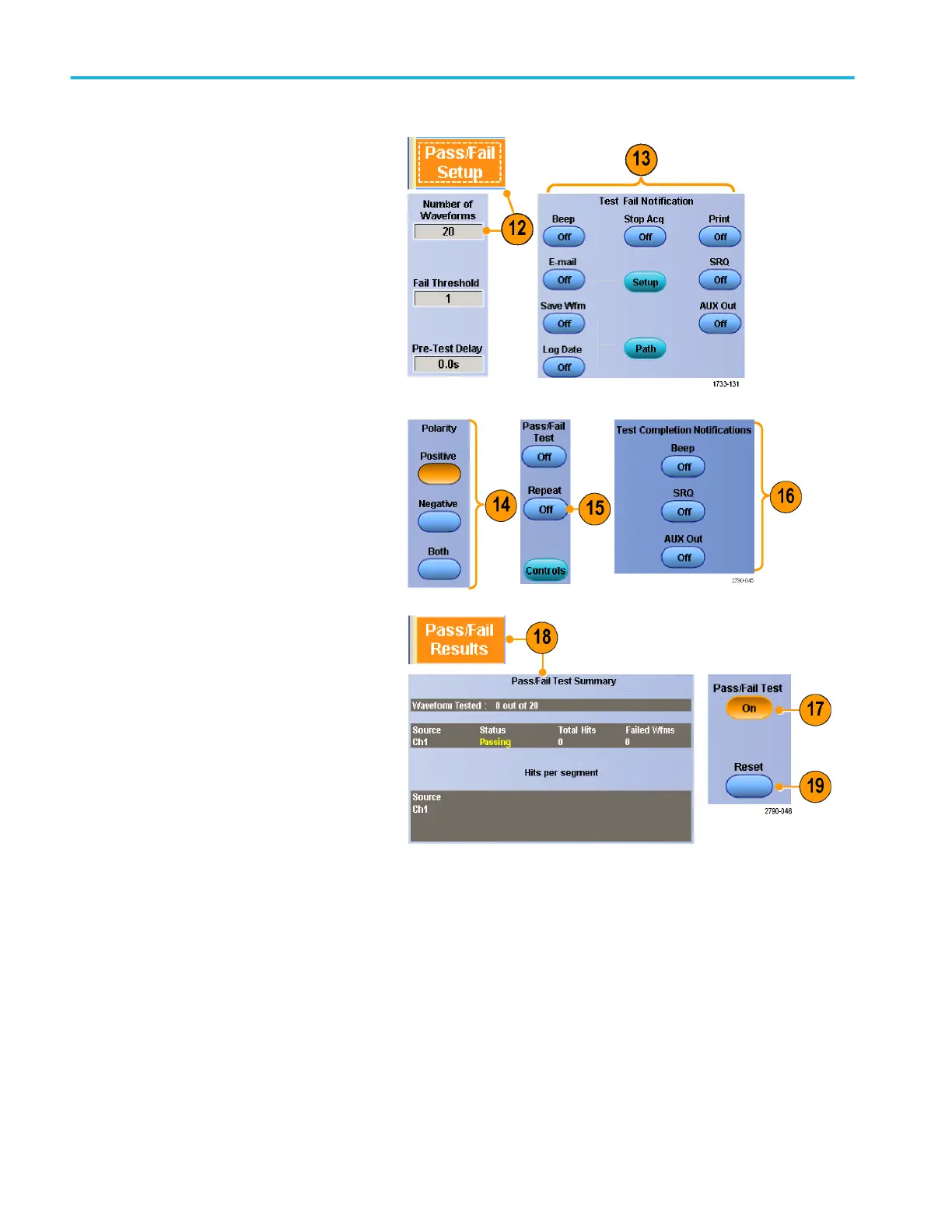

12. Select the Pass/Fail Setup tab, and then
set up the pass/fail parameters. (When
acquisition mode is Waveform Database,
the # of Wfms label becomes Samples.)
13. Select your Pass/Fail Test Notifications.
14. Select the polarity of the waveform you
want to test.
15. Toggle Repeat On to run the mask test
continuously.
16. Select the notice you want when the test
is complete.
17. Click the Pass/Fail Results tab to view
the test results.
18. Click Pass/Fail Test On to start the mask
test.
19. Click Reset to reset the totals and clear
any violations.
Quick tips
■
If the signal is not within the mask, enable Autoset to center the waveform in the mask.
Analyzing waveforms
154 DPO70000SX Series User
