To use
Use the Deskew Tool to compensate for propagation delays in your input signals.
1. Set the trigger mode to edge and adjust the trigger level on the reference channel until you have a stable trigger.
2. Select the channels to deskew. Ensure that each channel has a live signal attached and it has an edge that is within 0.5 UI
of the edge on the trigger channel.
3. Select the slope and level for each channel.
4. Wait for a sufficient population to be accumulated (the indicator near the To Mean button turns green)
5. Press the To Mean button.
6. Repeat steps 4 and 5 multiple times. The difference in resolution between ps and fs is large. So the first try gets you close
and the second gets into the fs range.

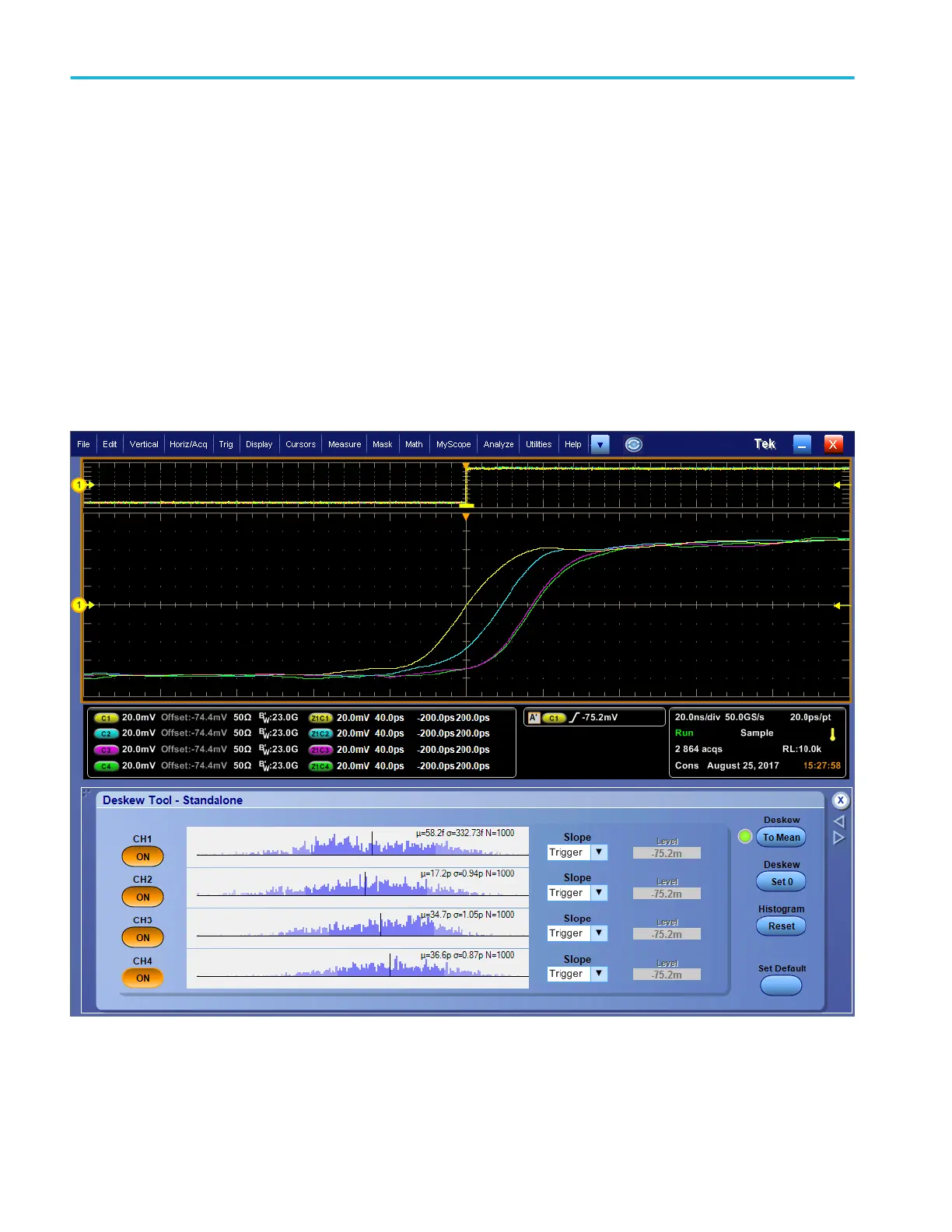

This figure is an example of fast edge signals before deskew:
This figure is an example of fast edge signals after deskew:
Acquisition
52 DPO70000SX Series User
