Section 2: Installation Model 2601B-PULSE System SourceMeter® Instrument User's Manual
2-2 2601B-PULSE-900-01 Rev. A August 2021

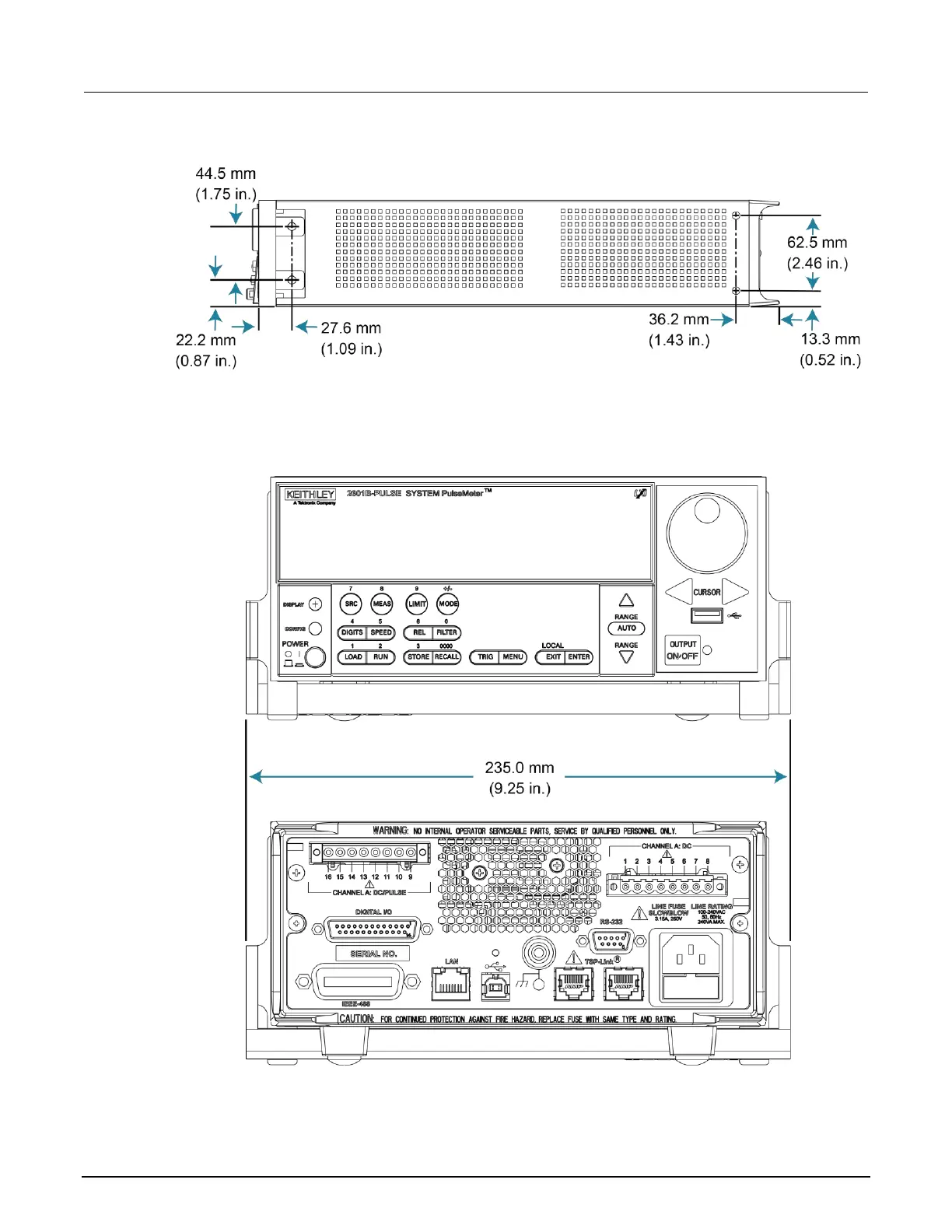

Figure 1: Mounting screw locations and dimensions
The following figures show the dimensions when the handle is installed.
Figure 2: 2601B-PULSE dimensions front and rear with handle
