Tektronix Keithley 2601B-PULSE - Section 4 Operation; Operation Overview

In this section:
Operation overview .................................................................. 4-1
DUT test connections ............................................................... 4-7
Sense mode selection ............................................................ 4-20
Output-off modes ................................................................... 4-21
Pulser operation ..................................................................... 4-25
Using the trigger model .......................................................... 4-32
Operation overview
The 2601B-PULSE is a single channel source-measure instrument with the full SMU functionality of a
Model 2601B SourceMeter
®
Instrument plus a high-speed current pulser.
The instrument operates as a SMU or as a current pulser. Internally, a solid-state switch routes the
SMU or pulser to the output terminals, as shown in the following figure.

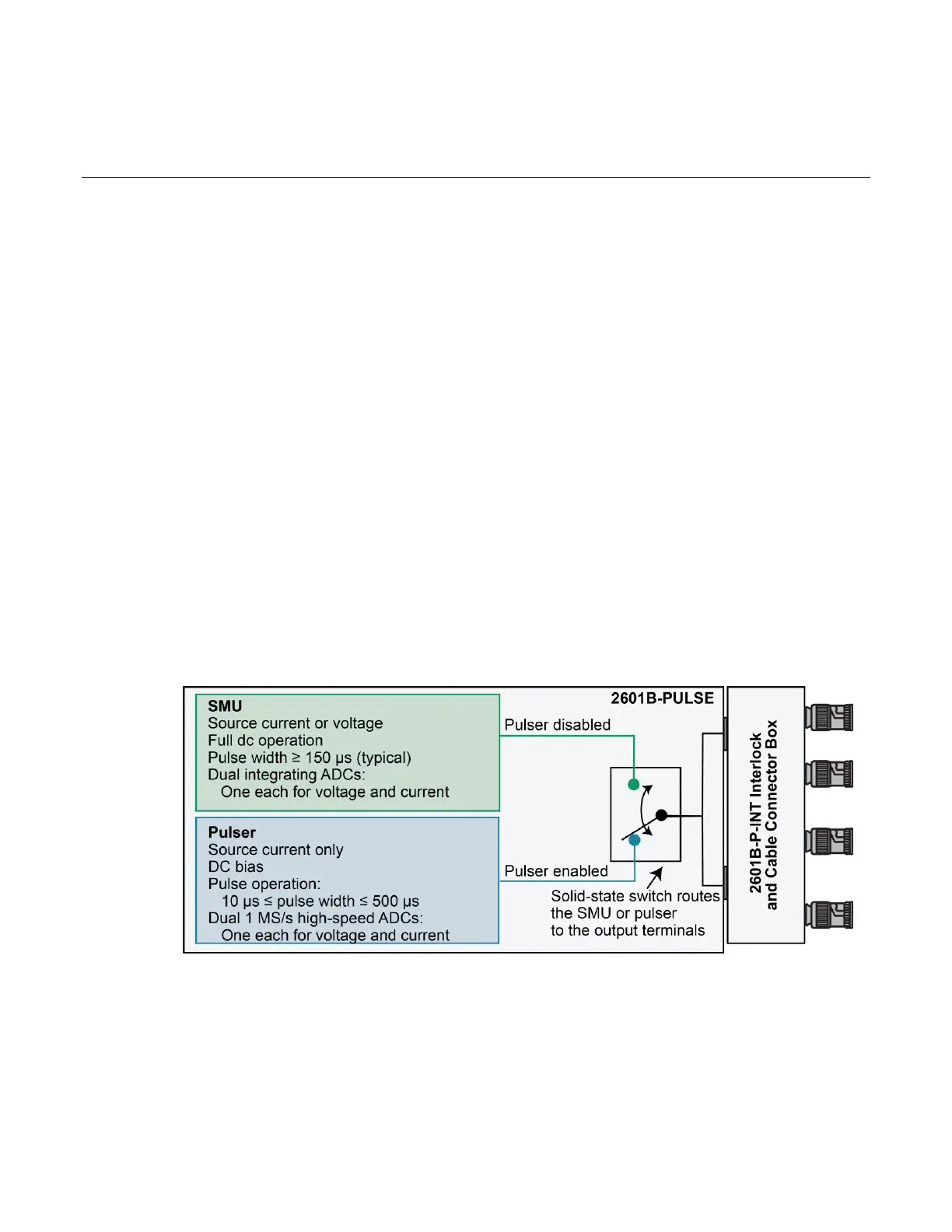

Figure 40: SMU and pulser operation
Section 4
Operation
