Model 2601B-PULSE System SourceMeter® Instrument User's Manual Section 3: Instrument description
2601B-PULSE-900-01 Rev. A August 2021 3-5
Rear panel

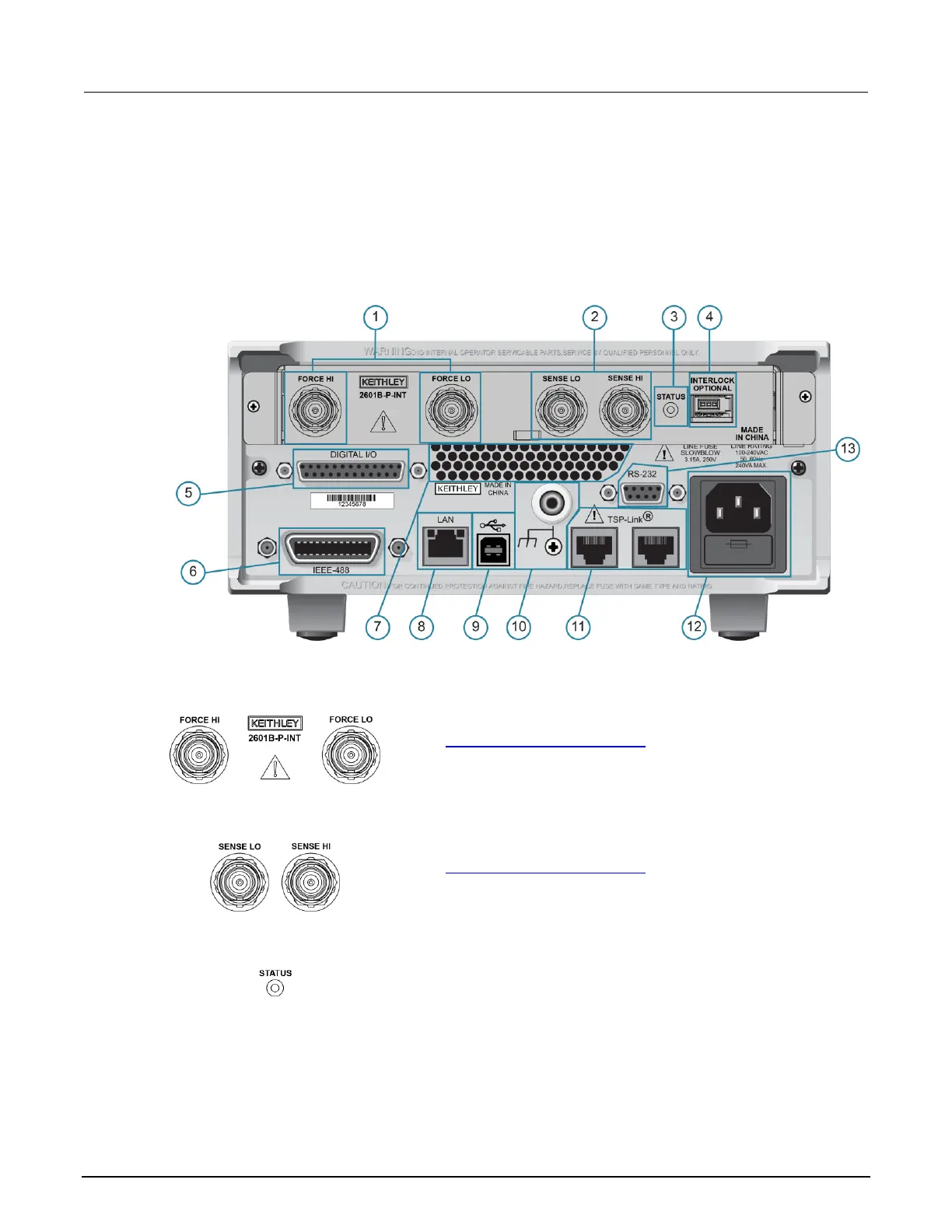

The 2601B-PULSE rear panel with the 2601B-P-INT installed is shown below. The descriptions of the
rear-panel components follow the figure.
Figure 29: Rear panel
1. FORCE HI and FORCE LO connectors
These connectors provide connections for FORCE HI and FORCE LO.
Refer to FORCE and SENSE connectors (on page 4-8) for additional
information.
2. SENSE LO and SENSE HI connectors
These connectors provide connections for SENSE LO and SENSE HI.
Refer to FORCE and SENSE connectors (on page 4-8) for additional
information.
3. STATUS indicator
This LED indicates the status of the interlock. When the interlock is not
asserted, the indicator is off. When the interlock is asserted, the indicator
is on.
