Model 2601B-PULSE System SourceMeter® Instrument User's Manual Section 3: Instrument description
2601B-PULSE-900-01 Rev. A August 2021 3-7

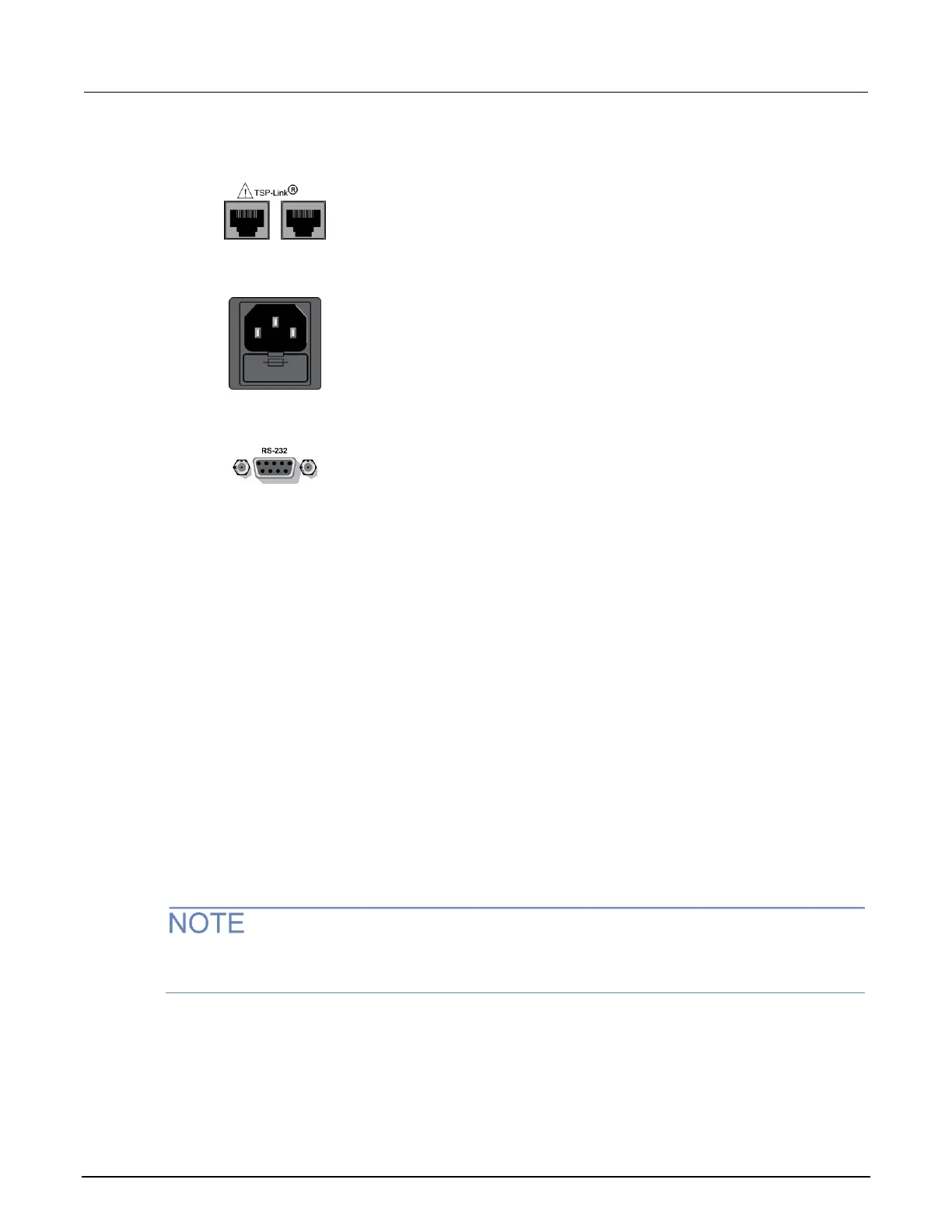

11. TSP-Link
Expansion interface that allows a 2601B-PULSE and other TSP-enabled
instruments to trigger and communicate with each other.
12. Power module
Contains the ac line receptacle and power line fuse. The instrument can
operate on line voltages of 100 V ac to 240 V ac at line frequencies of
50 Hz or 60 Hz.
13. RS-232
Female DB-9 connector. For RS-232 operation, use a straight-through (not
null modem) DB-9 shielded cable to connect to the computer.
Menu overview
The following topics describe how to work with the front-panel menus.
Menu navigation
To navigate through the menus and submenus, the 2601B-PULSE must not be in edit mode (the
EDIT indicator is not illuminated).
Selecting menu items
To navigate the Main and Configuration menus, use the front-panel keys as follows:
• Press either CURSOR arrow key to highlight an option.
• Rotate the navigation wheel (clockwise or counterclockwise) to highlight an option.
• Press the ENTER key (or the navigation wheel) to select an option.
• Use the EXIT (LOCAL) key to cancel changes or to return to the previous menu or display.
For quick menu navigation, turn the navigation wheel to highlight an option and then press the
navigation wheel to select the highlighted option.
Menu trees
You can configure instrument operation through the menus that are accessed from the front panel.
