Measurement badges are listed in the order created, starting at the top of the Results bar. Deleting a Measurement badge does not
change the order or names of the remaining badges.
Y
ou can drag Measurement badges to change their position in the Results bar and open the badge right-click menu to access a
quick-action menu.
There are two ways to delete Channel and Waveform badges.
• Right-click the badge and turn it off.
• Flick the badge off the right edge of the display to remove it from the Results bar. Flicking left from the right edge of the Results bar
recovers the badge. Badge recovery is only possible within 10 seconds of removal.
Pattern Generator badge
The pattern generator badge display in the Settings bar when pattern generator is set to Continuous or Burst mode.
The pattern generator badge lists the bit rate, amplitude, and pattern definition. If the Pattern Definition is set to Manual, the badge
shows the Bits 3 to 0. If Pattern Definition is set to File, the badge shows the file name. The Burst button displays in the badge when
pattern generator Output is set to Burst.
T
o delete the pattern generator badge, right-click the badge and select Output > Off.

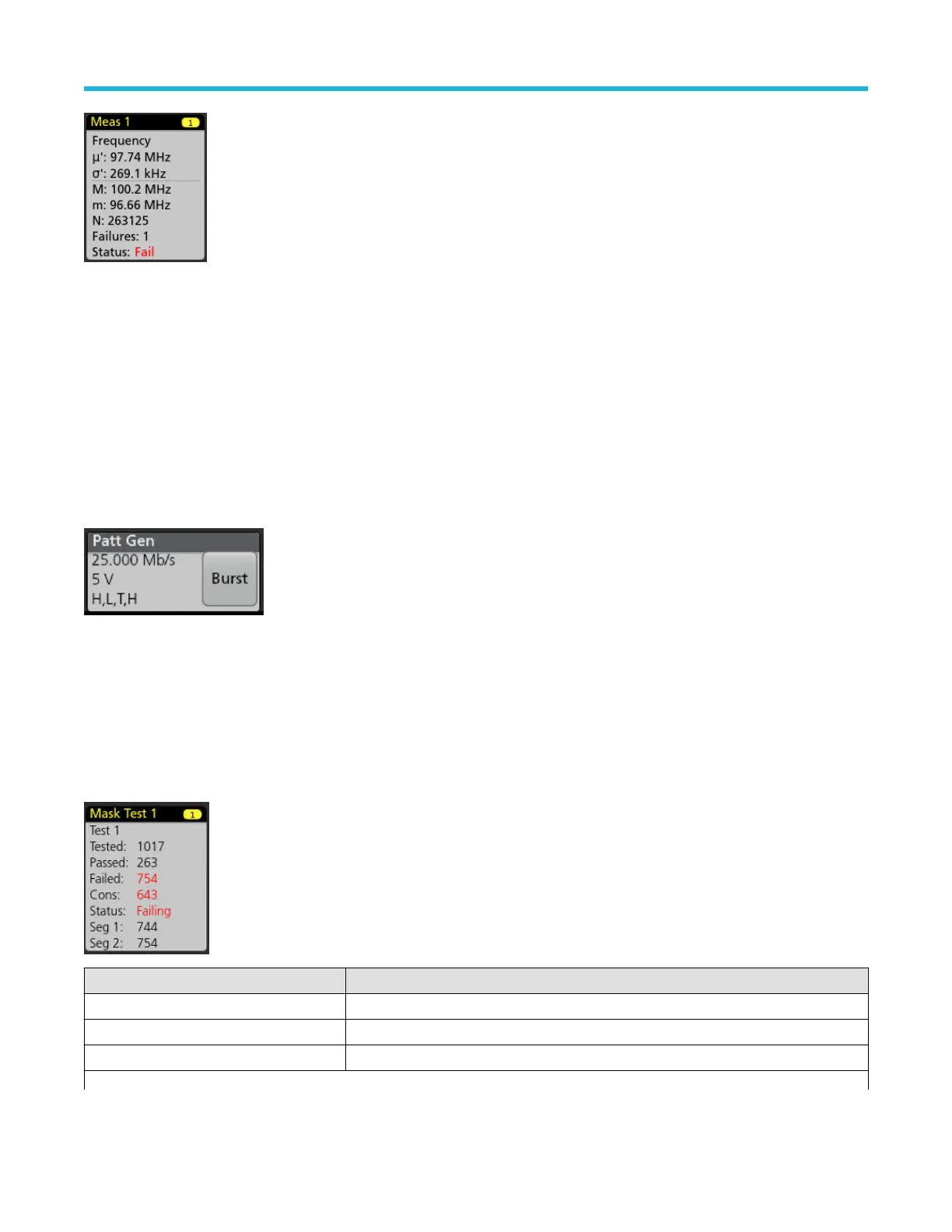

Mask Test badge
The mask test results and measurement statistics are displayed in the Mask Test badge in the Results bar. The badge is created when the
first segment of a mask is defined.
Badge readout Description
Label (optional readout) A label defined in the badge configuration menu.
Tested The total number of waveforms tested against the mask.
Passed The number of waveforms that contained no samples that violated the mask.
Table continued…
