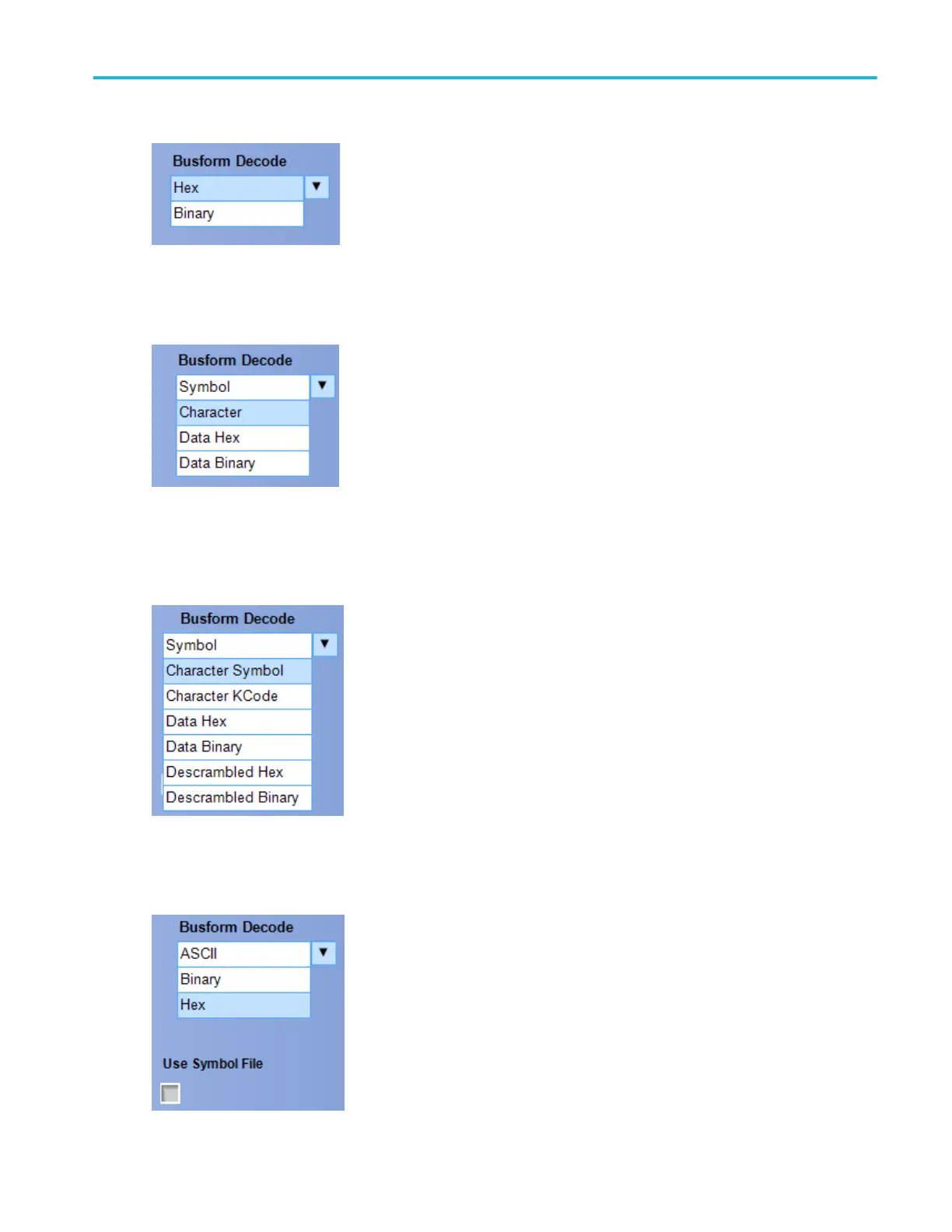

For the 8B10B serial bus, you can also display the decode of the bus in Symbol, Character, Data Hex, and Data Binary method.
For the PCIe serial bus, you can display the decode of the bus in Symbol, Character Symbol, Character KCode, Data Hex, Data
Binary, Descrambled Hex, and Descrambled Binary. Select the decode from the drop down list.
For the RS232 serial bus, you can also display the decode of the bus in ASCII, Binary, and Hex.
Bus setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 155
