Utilities

Tek secure erase

From the Utilities menu, select Tek Secure Erase.

Overview

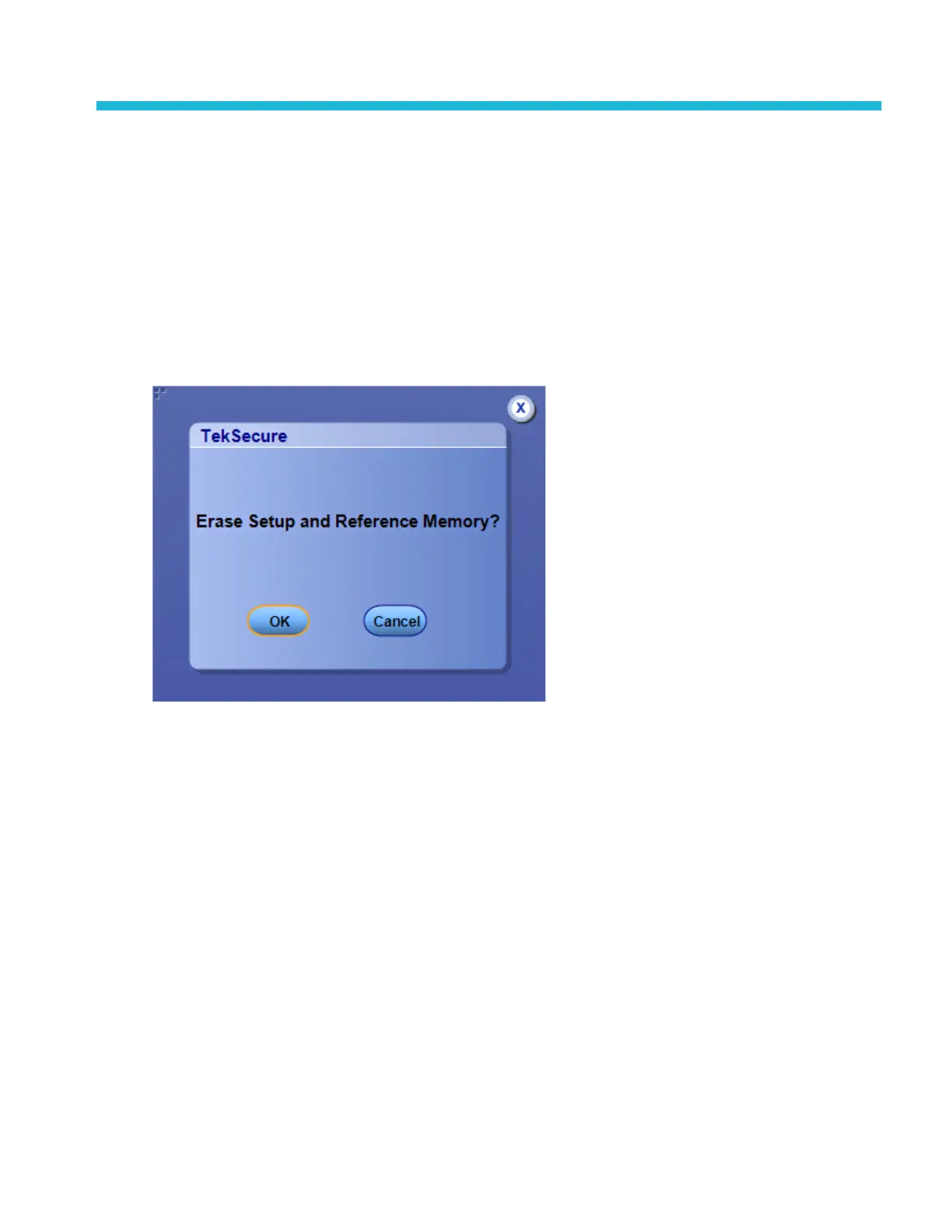

Use TekSecure to erase, for the current user, all waveforms and instrument setups.

To use

■

Click OK to erase.

■

Click Cancel to exit the dialog box.

Behavior

Tek Secure Erase removes, for the current user, all reference waveform and instrument setup memory locations. Erased setups

are replaced with the default factory setups.

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 547
