What do you want to do next?
Learn how to define a pattern for a bus.
Learn about bus setups.

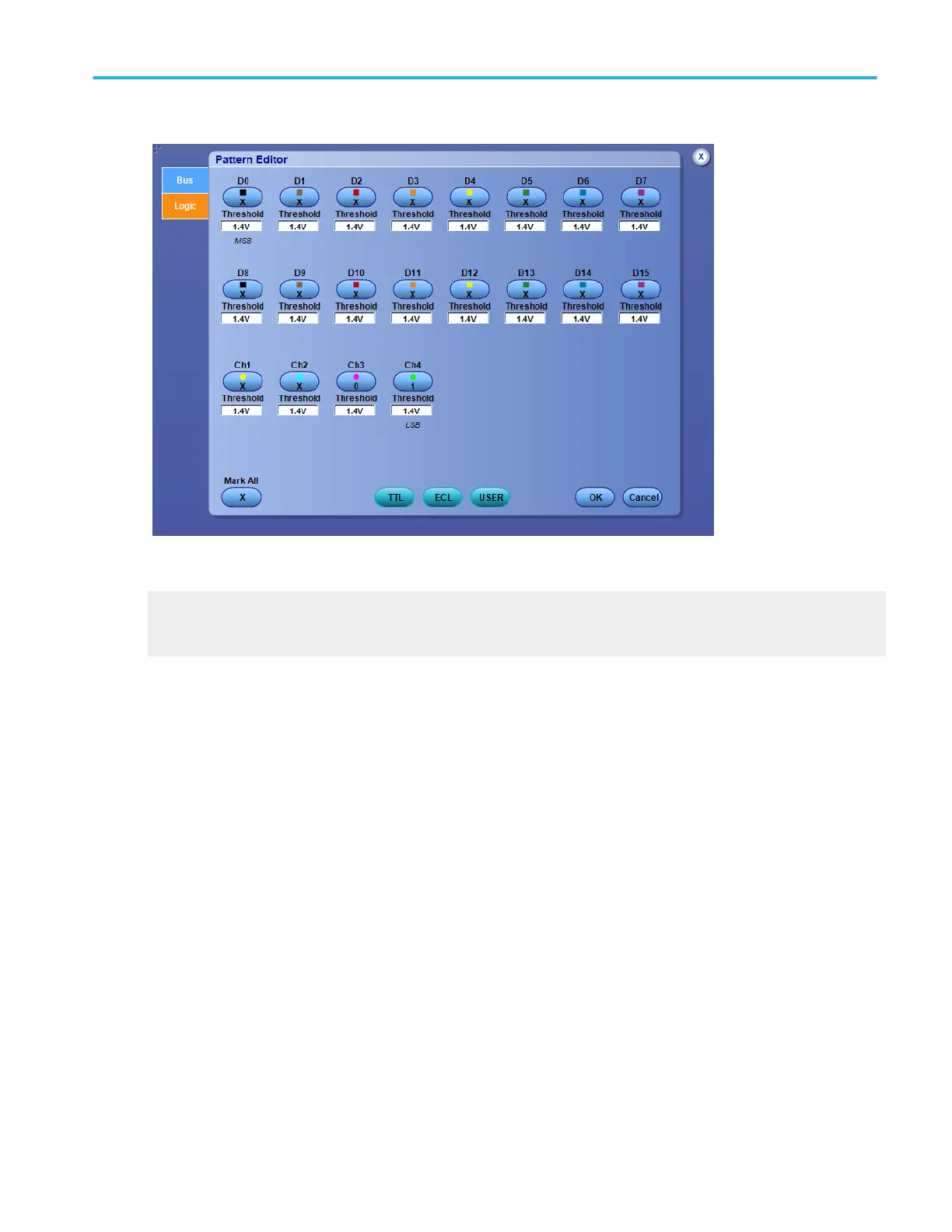

Bus pattern editor (Live tab)
Use the controls to set the bus trigger pattern of the channels the instrument uses as logic waveforms to detect a parallel or serial
bus value. Click a channel button to select the value for that channel: 0, 1, or X. For convenience, you can also change the
voltage reference level threshold values.
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 851
