Trigger after events
Trigger on nth event (Horizontal delay on). From the Trig menu, select A - B Trigger Sequence.
Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal Delay on.
For information on the controls, click the buttons.
Trigger Level
Trigger Events
Horizontal Delay
Reference Point
Trigger Reset
Counter Measurements

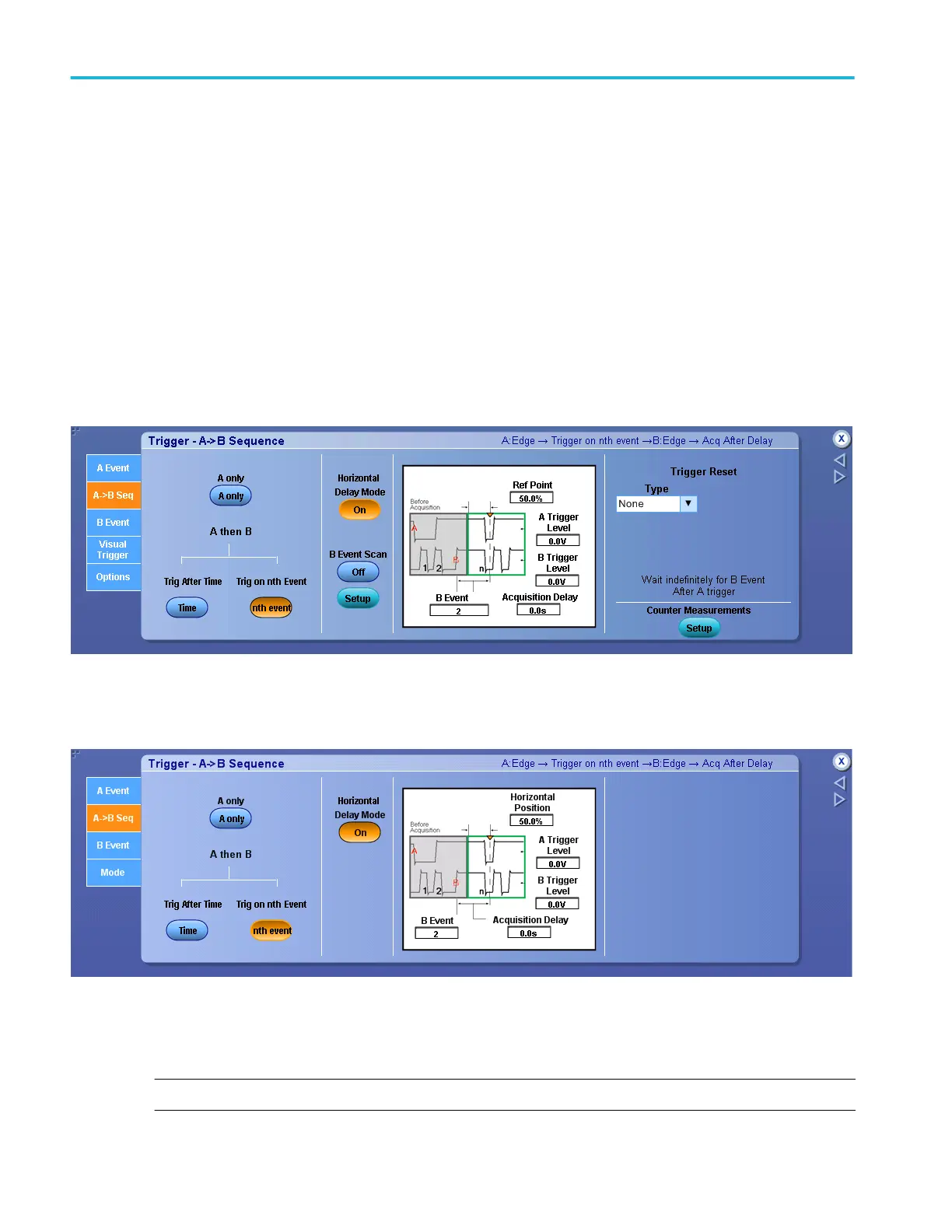

The following screen appears on MSO/DPO5000B Series instruments:
To use.
1. Set up the A Event and B Events from their individual tabs.
NOTE. On MSO/DPO5000B Series instruments, trigger on B events is available only for Edge trigger.
2. Select the A–>B Seq tab; then click Trig on nth Event.
Trigger setups
452 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
