Probe compensation

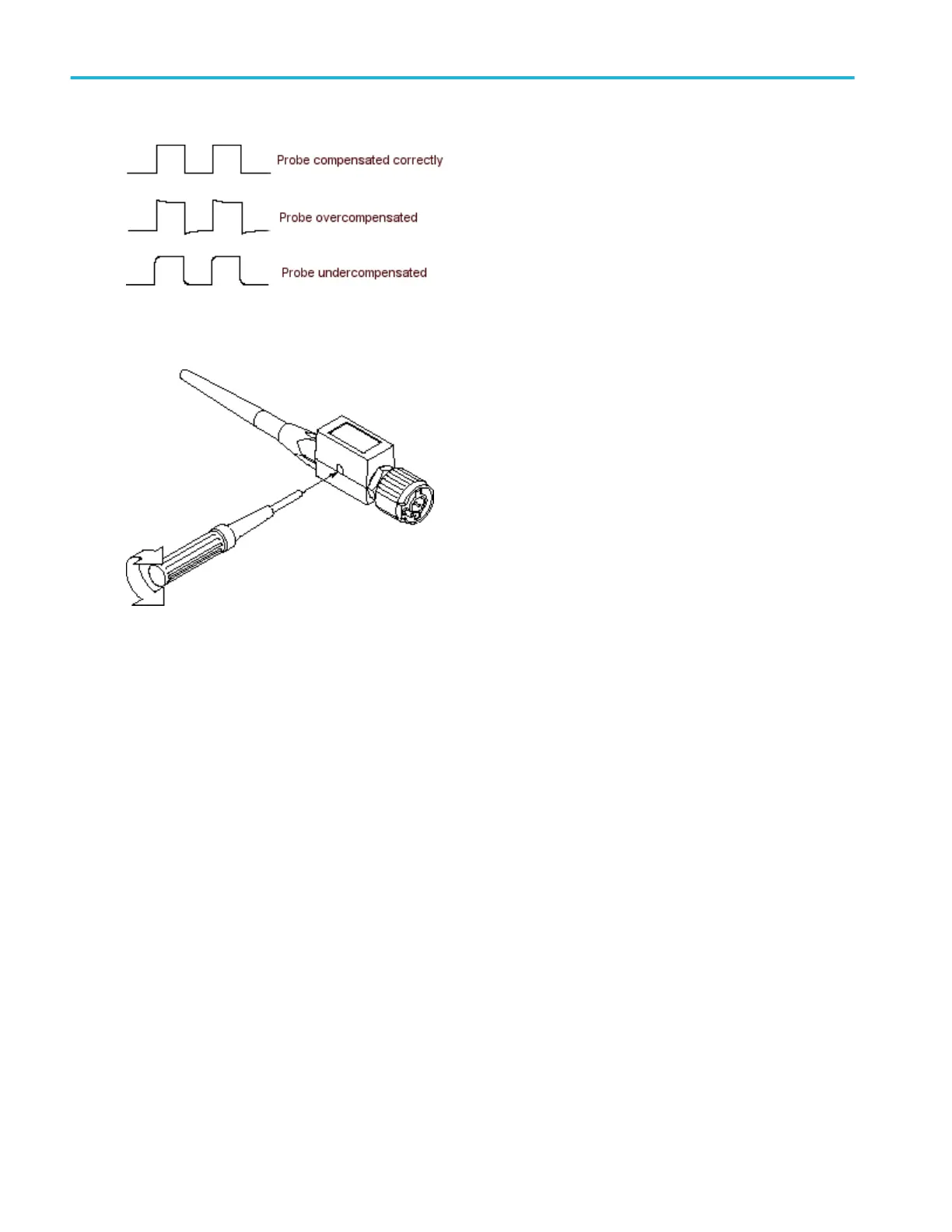

Probe compensation adjustment
Probe compensation output
Use the Probe Compensation output to compensate or deskew passive or active voltage probes.
Quality factor
Quality factor is the ratio of eye size to noise.
Quality Factor = (PTopmean – PBasemean)/(PTopsigma + PBasesigma)
Recall a template waveform
Use this procedure to recall a template waveform to a reference location.
1. From the File menu click Recall.
2. Under Recall What: click Waveform, and then select the waveform you want to recall.
3. Select Ref <1–4> from the Destination drop-down list.
4. Click Recall.
Oscilloscope reference
816 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
