Tektronix MSO71604C Printable Help

Behavior

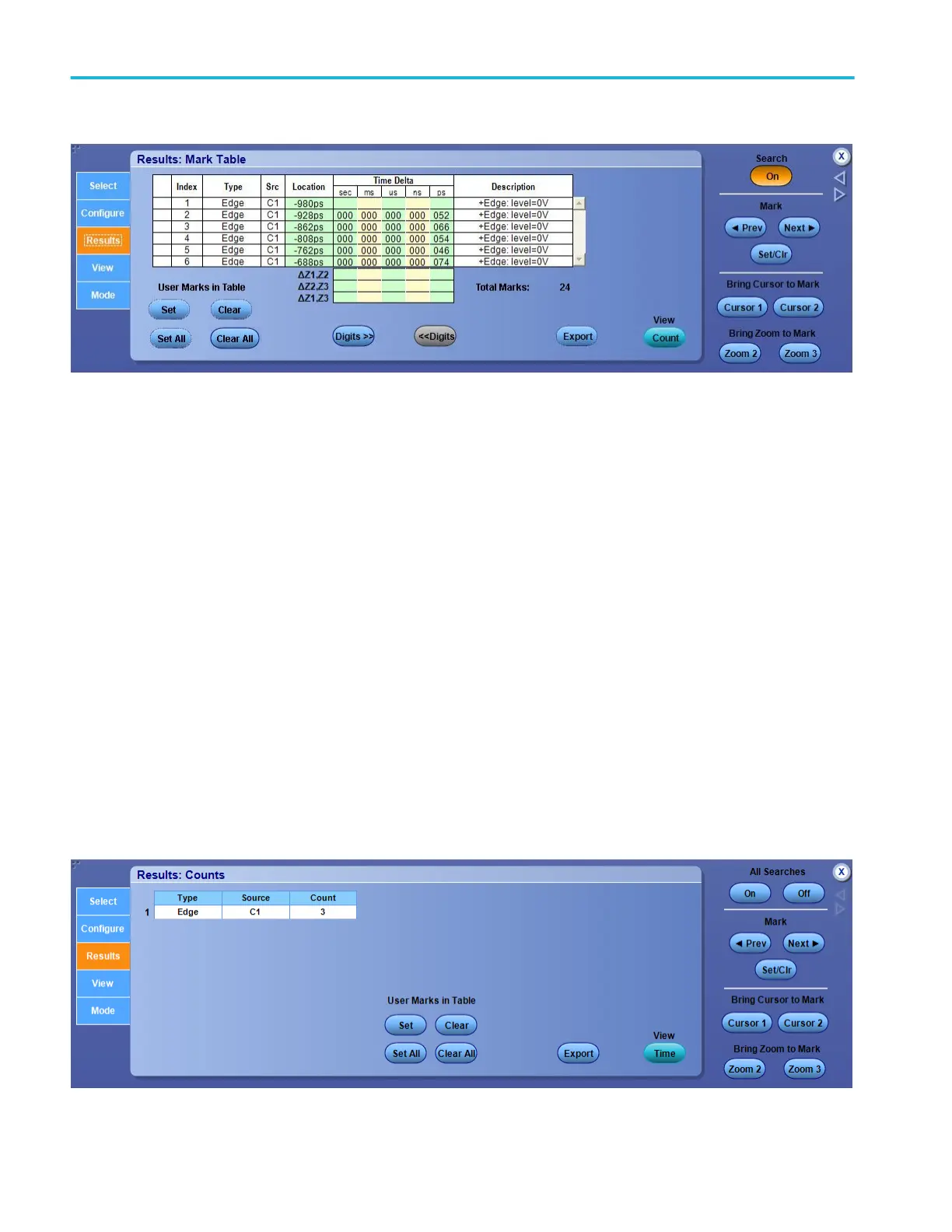

The Location and Time Delta columns list the search results for each mark placed by the instrument for the search Type
indicated. You can also use the buttons to edit or change the format of the table and save results to a file.
View the search counts results
From the Analyze menu, select Search; then open the Results tab and click the Count button.
Overview
Use the controls in this window to view the number of times the search criteria was met and the instrument placed a mark on the
waveform.
To use
For information on the controls, click the buttons.
■
User Marks in Table
■
Export
■
View
Analyzing waveforms
306 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
