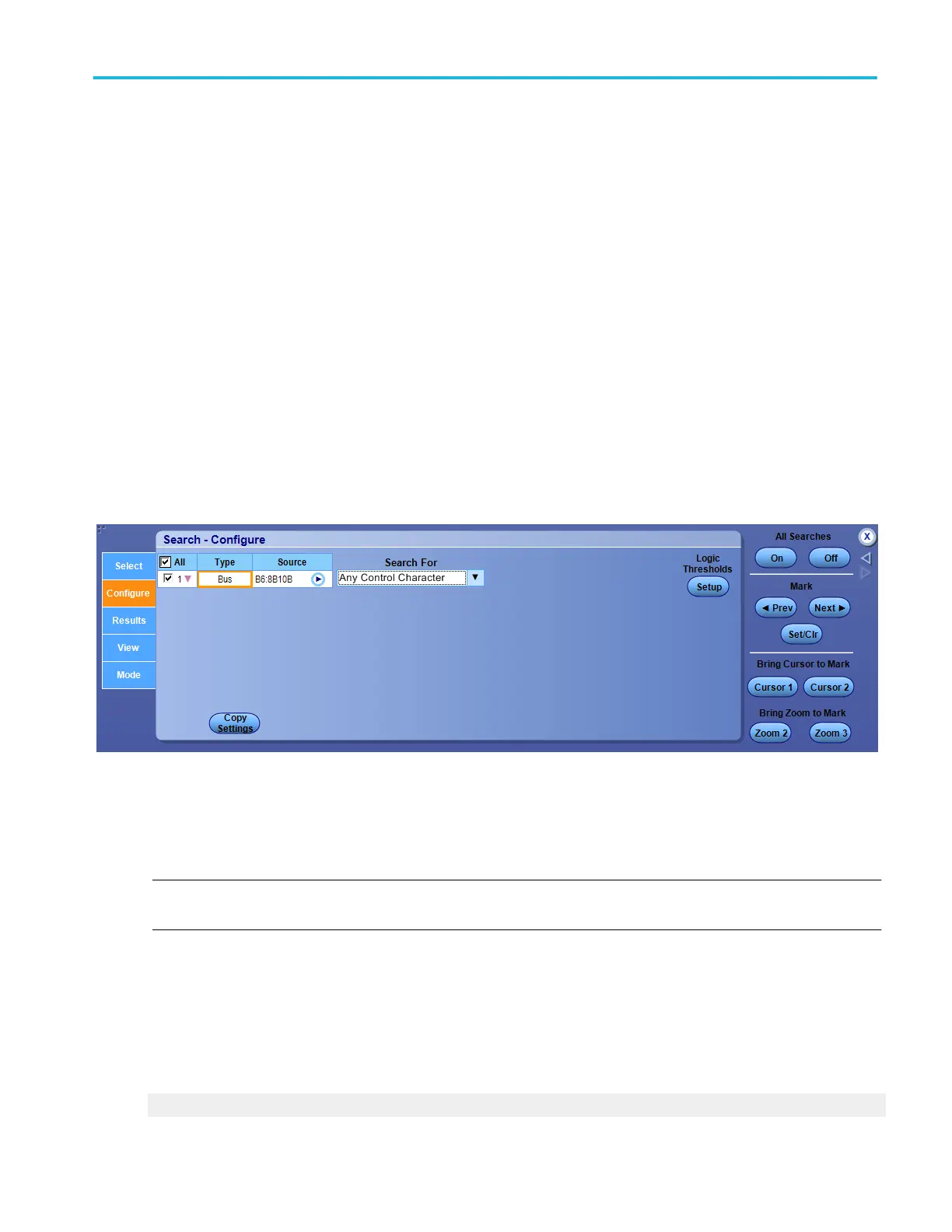

Set up custom search parameters
After setting up a custom bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the
Configure tab.
Overview
Use the controls to set up the Custom Bus parameters.
To use
For information on the controls, click the buttons.
Type
Source
Copy Settings
Search Parameters
Search / Mark Controls
Behavior
Clicking an entry in the Type column activates the individual search controls, similar to the one shown above. These controls vary
depending on the search Type. Setting the search conditions is similar to setting the parameters for an Event Trigger.
NOTE. No information will be displayed in this window until you specify at least one search Type in the Search Select Control
Window.
To use
Click the Source box and select the bus number or name from the window. Bus Search Selection List
Select the type of bus cycle or activity to search for from the Search For drop-down list.
For some Search For selections, you must set additional fields to define other parameters.
What do you want to do next?
Learn about bus setups.
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 361
