Vertical setup control window (Aux tab)
From the Vertical menu, select Vertical Setup; then open the Aux tab.
Overview

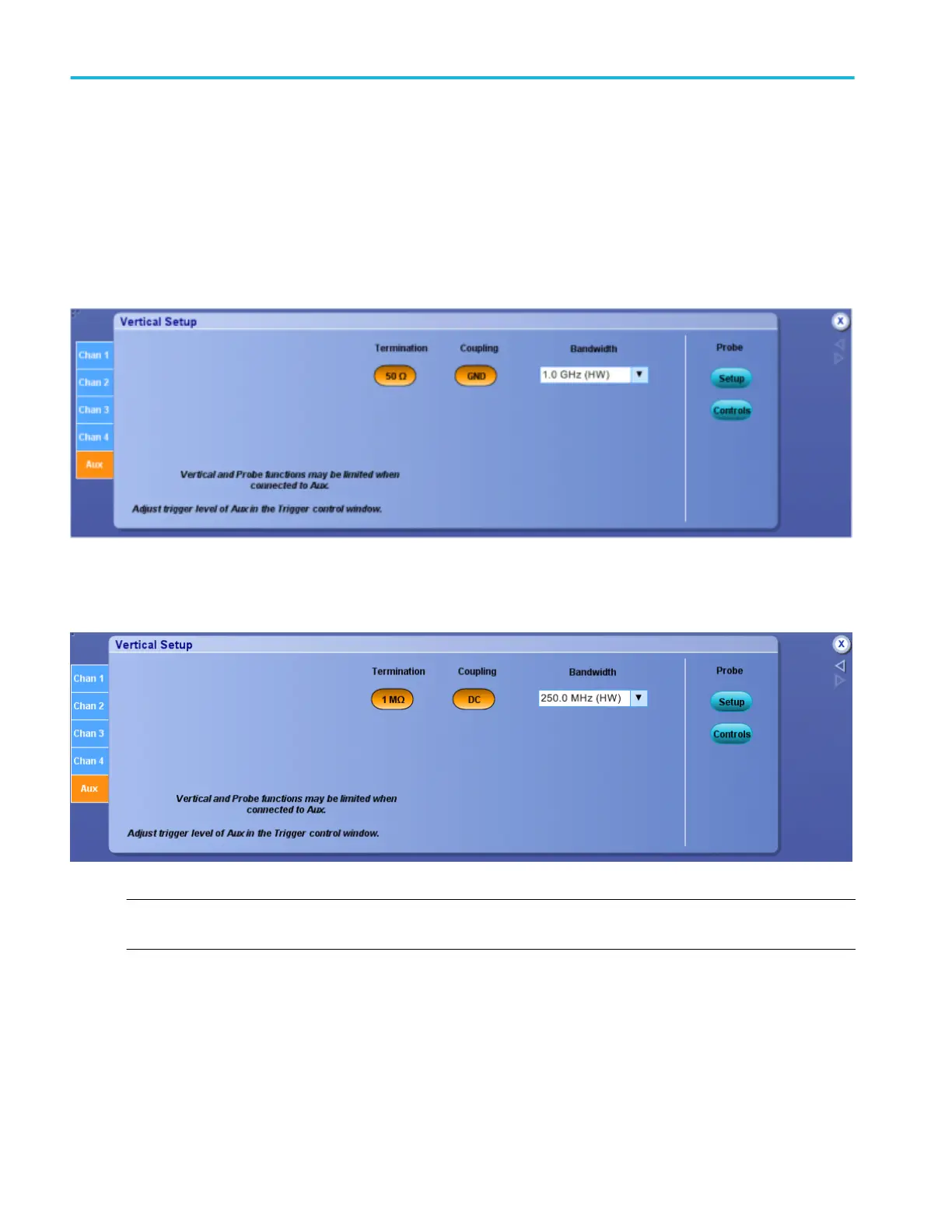

The Vertical Setup Aux Tab, similar to the window shown below, reports the status of the Auxiliary trigger input. This input is
located on the instrument front panel.
The following screen appears on MSO/DPO5000B Series instruments:
NOTE. Some instruments include a Bandwidth control. For these instruments, you can set the Auxiliary Input bandwidth in the
drop-down list box.
Vertical setups
496 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
