Tektronix MSO71604C Printable Help

What do you want to do next?
Learn more about the Horizontal Setup controls.
Learn about the Acquisition Setup controls

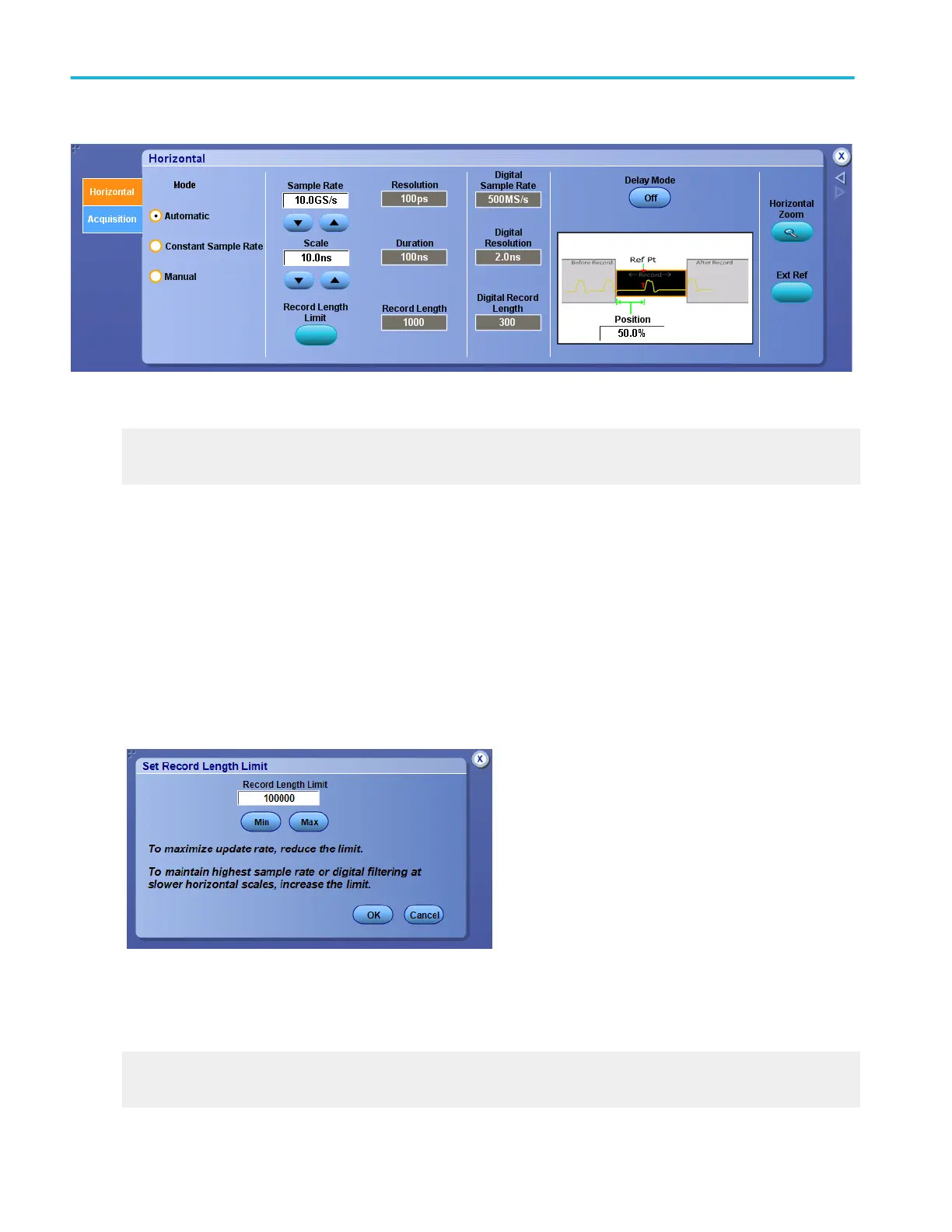

Set record length limit
From the Horiz /Acq menu, select Horizontal/Acquisition Setup; then click Record Length Limit.
To use
■
Use the Record Length Limit entry box to set the maximum record length.
■
Use the Max button to set the record length limit to its maximum value.
■
Use the Min button to set the record length limit to its minimum value.
To increase the update rate, lower the record length limit. To enable higher sample rates or digital filtering at slower horizontal
scales, increase the record length limit.
What do you want to do next?
Learn more about the Horizontal Setup controls.
Learn about the Acquisition Setup controls
Horizontal and acquisition setups
182 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
