Behavior
The table in this window displays count results for automated search and mark operations. The Count column displays the
number of times the search conditions were met for a specific Type of search.
You can also use the buttons to edit the Results Mark Table and save results to a file.
View search marks
From the Analyze menu, select Search; then open the View tab.
Overview

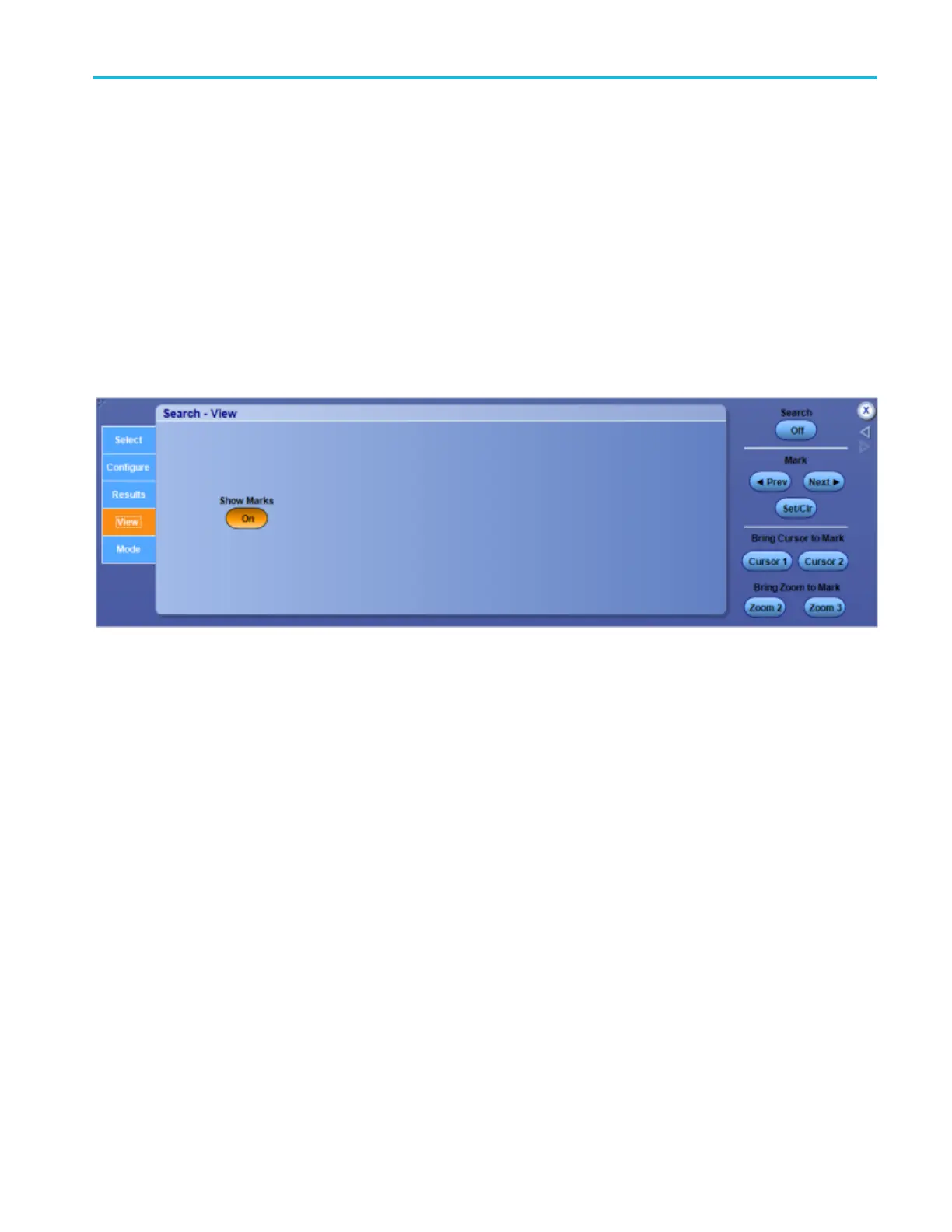

Use the controls in this window to display marks.
To use
■
Click the Show Marks button On or Off to display the marks placed on a waveform.
Set the search mode
From the Analyze menu, select Search; then open the Mode tab.
Overview
You can set up the instrument to stop acquiring waveforms when a search criteria is met and the instrument finds a match.
Analyzing waveforms
