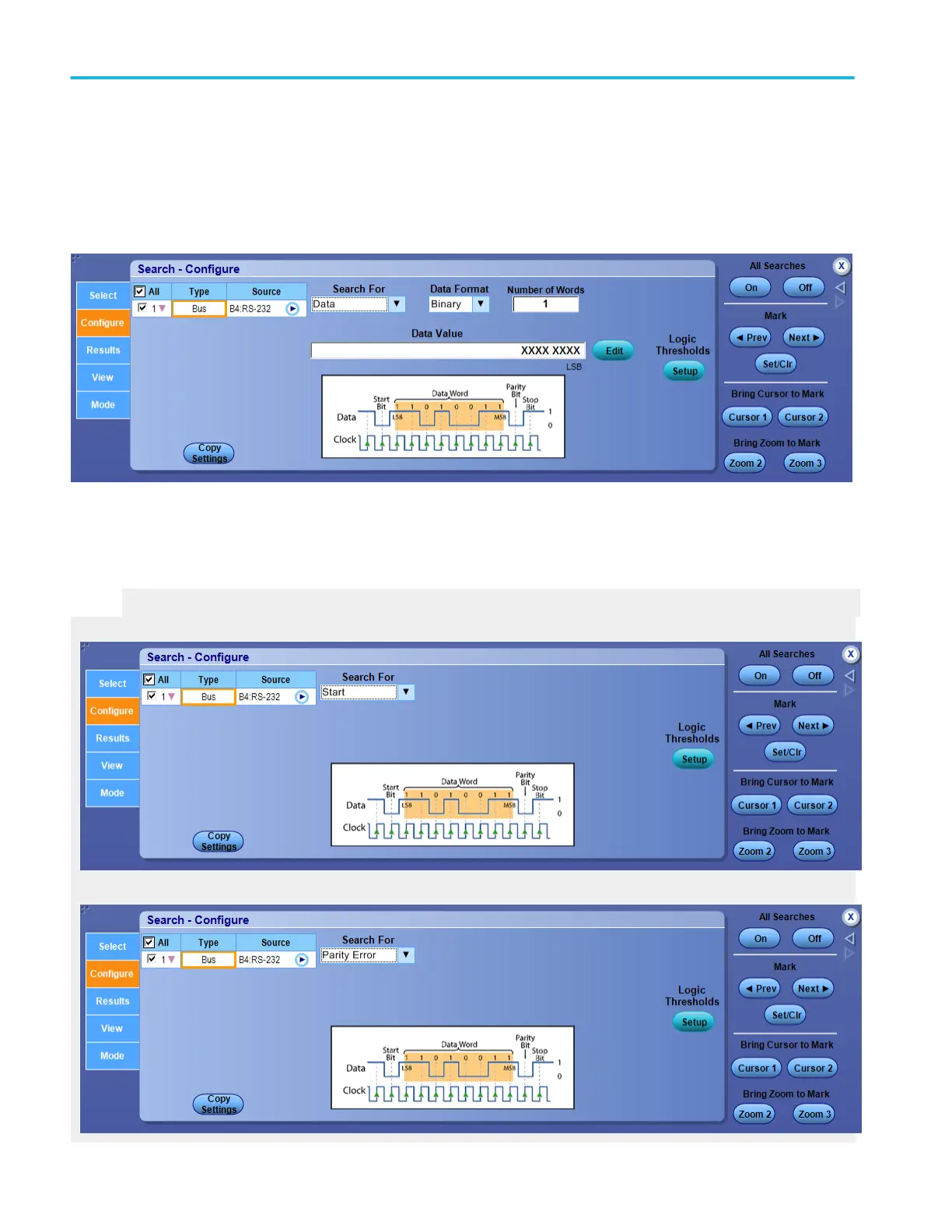

For some Search For selections, you must set additional fields to define other parameters such as for a Data.
In this example, you need to set a Number of Bytes, Data Format, and Data Value (click the Edit button). Optionally, you can
also set the component threshold levels through the Logic Thresholds Setup button.
Click the Search For selections Start, Parity Error, or Data to view their parameters.
What do you want to do next?
Learn about bus setups.
Search for start
Search for parity error
Analyzing waveforms
318 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
