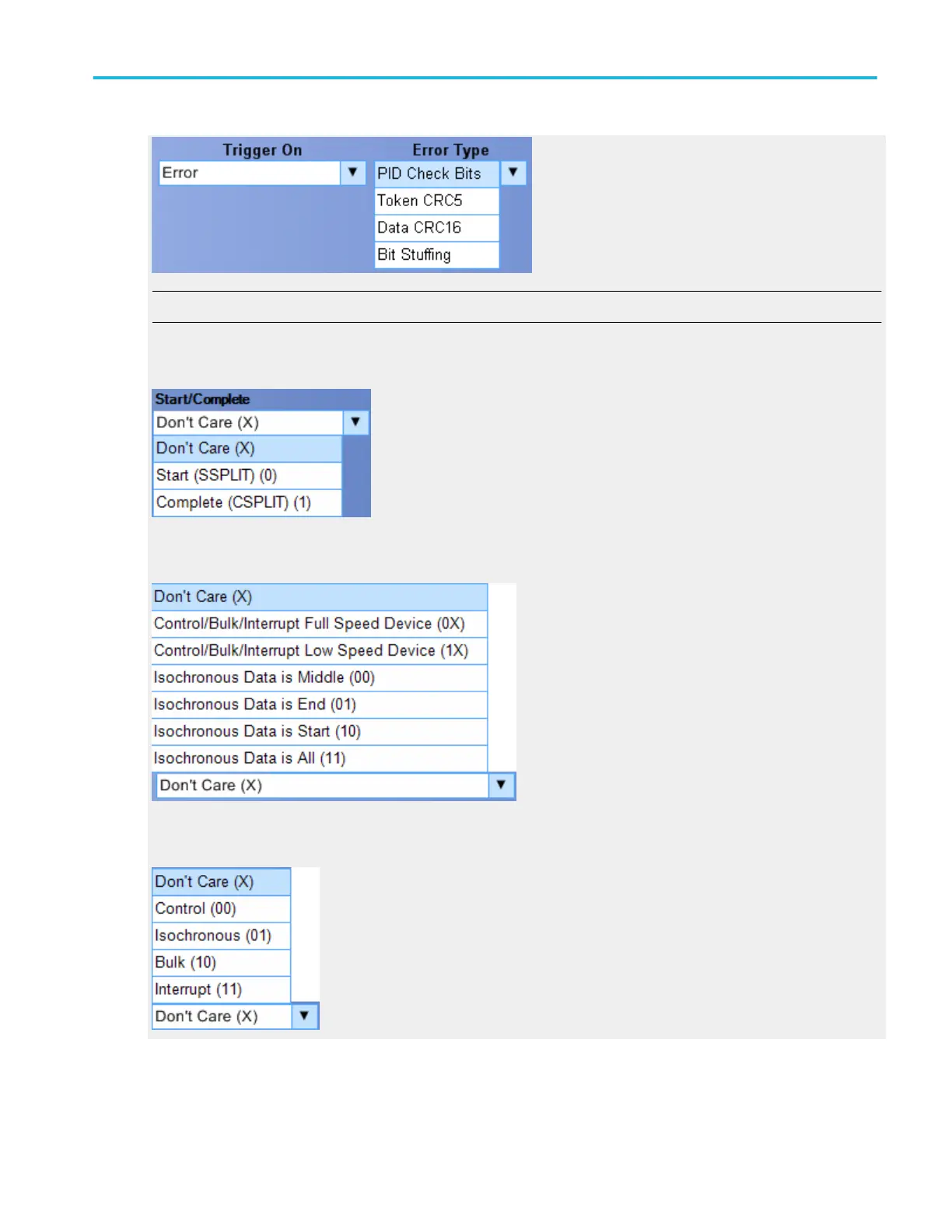

NOTE. The Bit Stuffing error type option is not available on high speed bus.
Start/Complete
The options available in Start/Complete are as follows:
Start and end bits
The options available in Start and End bits are as follows:
Endpoint type
The options available in Endpoint Type are as follows:
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 395
