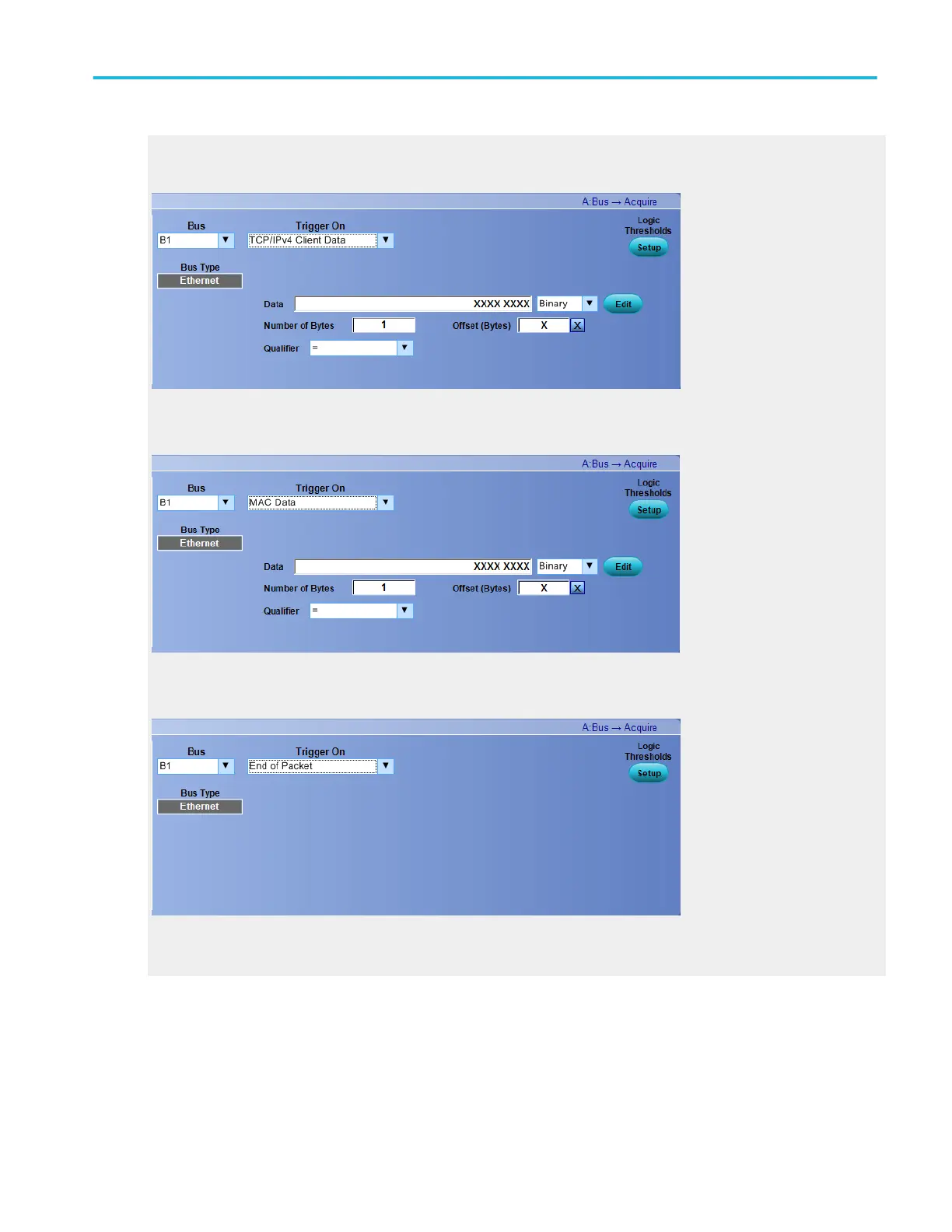

Trigger on TCP/IPv4 Client Data

For Trigger On TCP/IPv4 Client Data you need to specify the Data, Number of Bytes, Offset, and the Qualifier.

Trigger on MAC Data

For Trigger On MAC Data you need to specify the Data, Number of Bytes, Offset, and the Qualifier.

Trigger on End of Packet

Select End of Packet to trigger on an Ethernet End of Packet.

Trigger on Idle

Select Idle to trigger on an Ethernet idle character.

Trigger setups
