Tektronix MSO71604C Printable Help

To use. For information on the controls, click the buttons.
■
Trigger Type
■
Mark All Trigger Events
■
Settings
■
Source
■
Data Level
■
Clock Source
■
Clock Level
■
Setup / Hold Time
■
Clock Edge
■
Qualification
■
Pattern
■
Edit Button
NOTE. The Trigger Setup/Hold screen on DPO and MSO instruments is the same except for the source selection and Trigger if
Setup/Hold Qualification options. In some instruments, the source selection is a drop-down list and the Trigger if Setup/Hold
Qualification option has Occurs and Logic. In other instruments the source selection includes a combo list and a Select button.
The Trigger if Setup/Hold Qualification option has Occurs, Logic, and Occurs And.

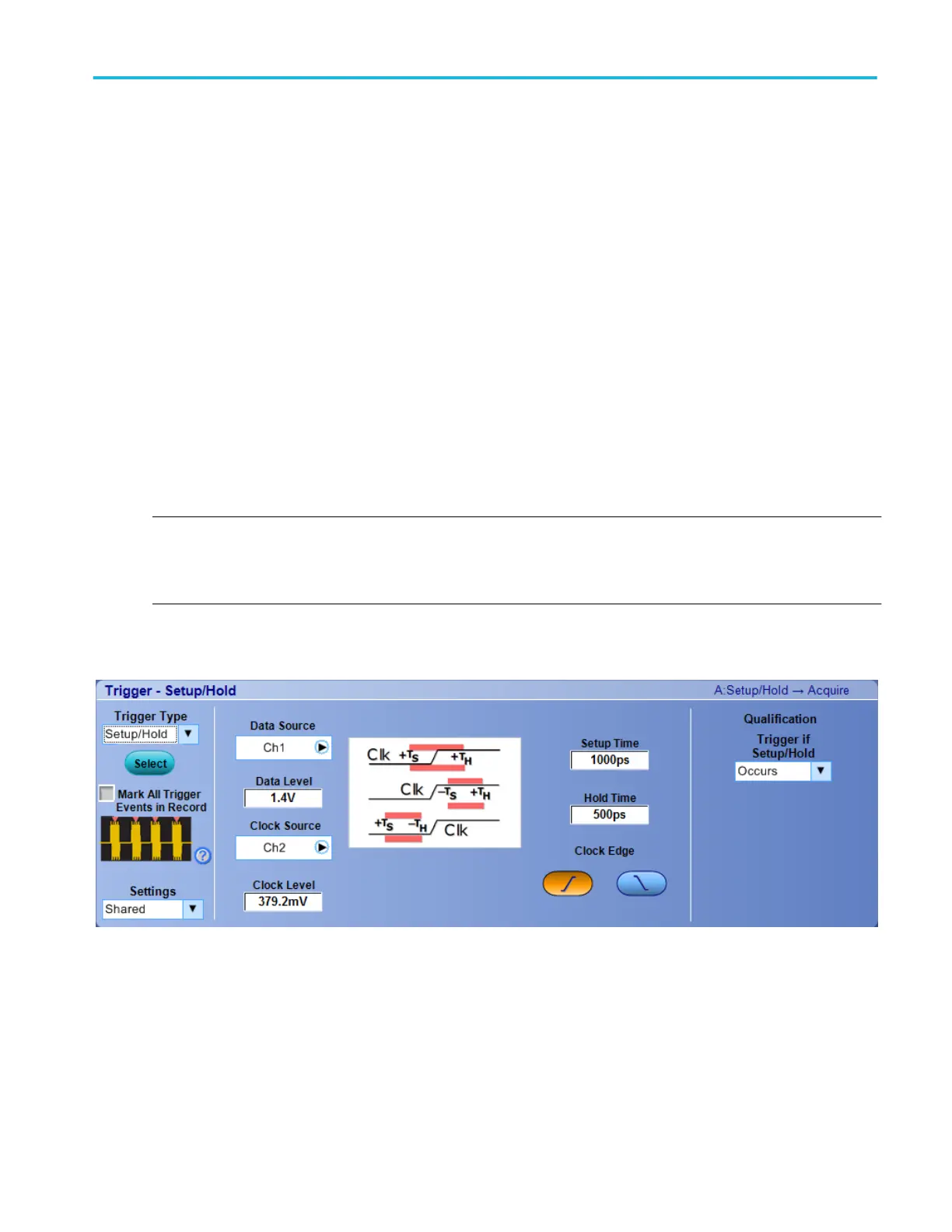

The following Trigger Setup/Hold screen appears on MSO70000C/DX and DPO7000C Series instruments:
The following Trigger Setup/Hold screen appears on MSO/DPO5000B Series instruments:
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 425

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
