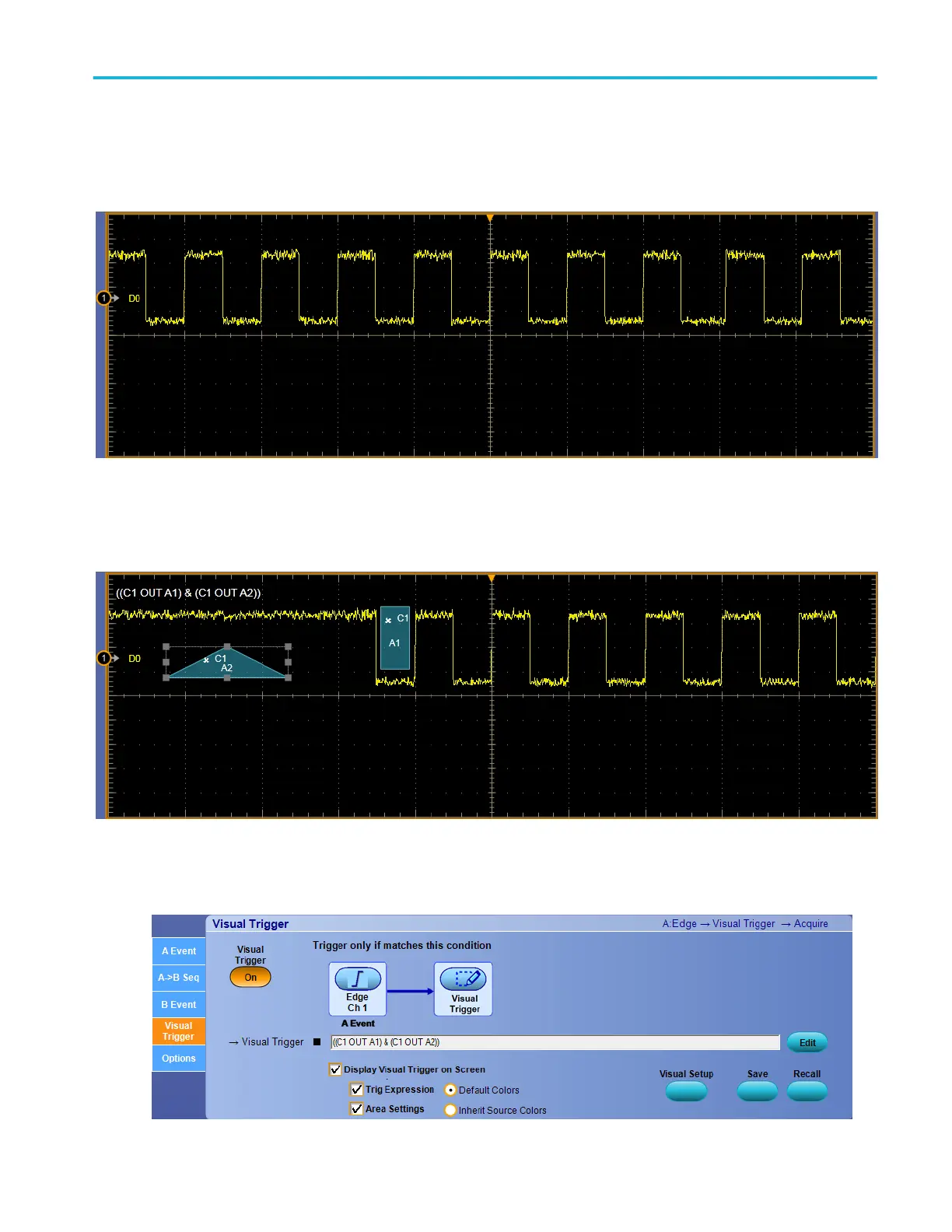

Overview. Use the Visual Trigger control window to control which triggered waveforms are displayed. For example, the following
screen capture shows a waveform acquired using edge trigger.
The following screen capture shows the same waveform acquired using edge trigger and visual trigger with two visual trigger
areas controlling which triggered waveforms are displayed.
Use the Visual Trigger control window to control which triggered waveforms are displayed.
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 461

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
