Tektronix MSO71604C Printable Help

NOTE. Right-click on the digital source readout in the waveform window to reroute from one analog channel to any of the other
three analog channels. For example, right-click on D0 captured on Ch1 and select iCapture on Ch2 to reroute source D0 to Ch2.

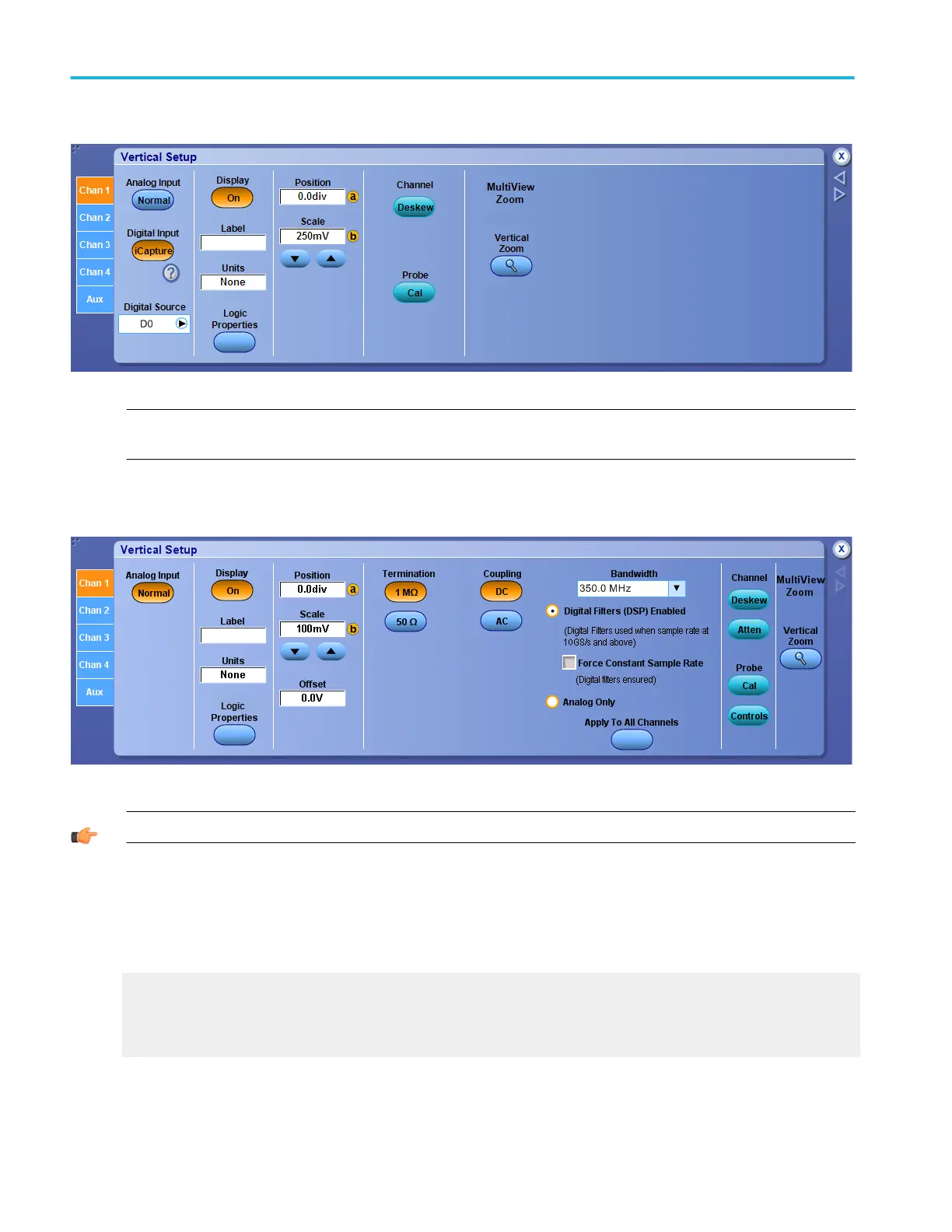

The following screen is captured on MSO/DPO5000B Series instruments:
TIP. You have the option to add user-defined labels for the analog, reference, bus, and digital sources.
Behavior
When the Analog Input Normal button is selected, the remaining display, probe, and zoom parameters are the same as on all
other models.
What do you want to do next?
Continue to learn about the Vertical Setup controls.
Learn about the Digital Input iCapture feature.
Learn about the Digital Properties button.
Vertical setups
482 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
