Controlling from within the graticule area. Use the mouse or your finger in the graticule area to click and drag (or touch and
drag) the following:
■
An on-screen cursor to another position on the waveform.
■
A waveform handle to change the vertical position of a waveform.
■
A waveform label or other screen text that you have entered to reposition it.
■
The horizontal reference markerto set the horizontal position.
■
The trigger level marker to set the trigger level.
You can also click and drag (or touch and drag) across part of a waveform to select it and investigate it further. Once the
selection is made, choose one of the following actions:
■
Create a Zoom waveform that covers just the selected area
■
Create a histogram to analyze the selected area
■
Turn on measurement gates that take measurements only in the selected area
■
Create a visual trigger area.
■
Cancel the selection

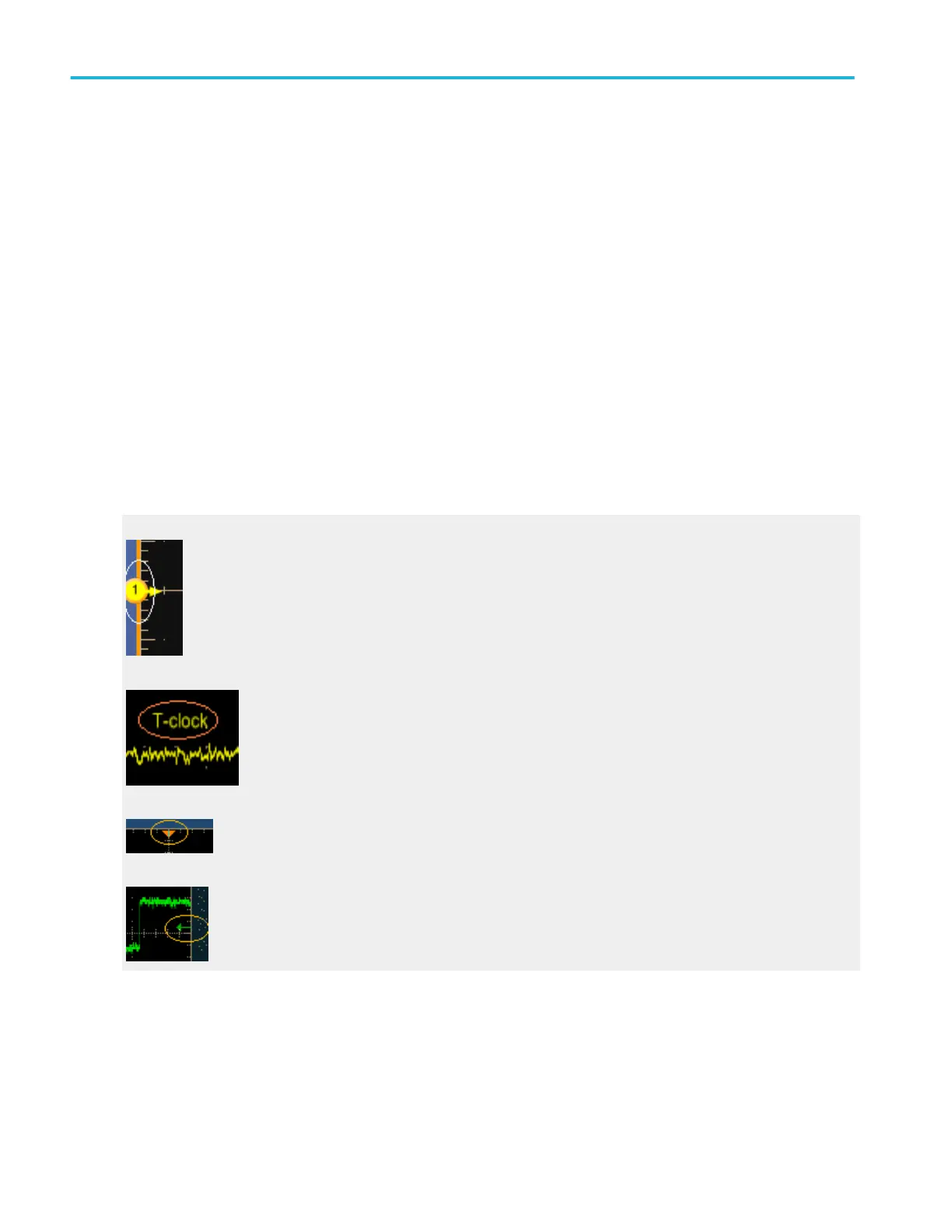

Waveform handle
Waveform label
Horizontal reference marker
Trigger level marker
