Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–111

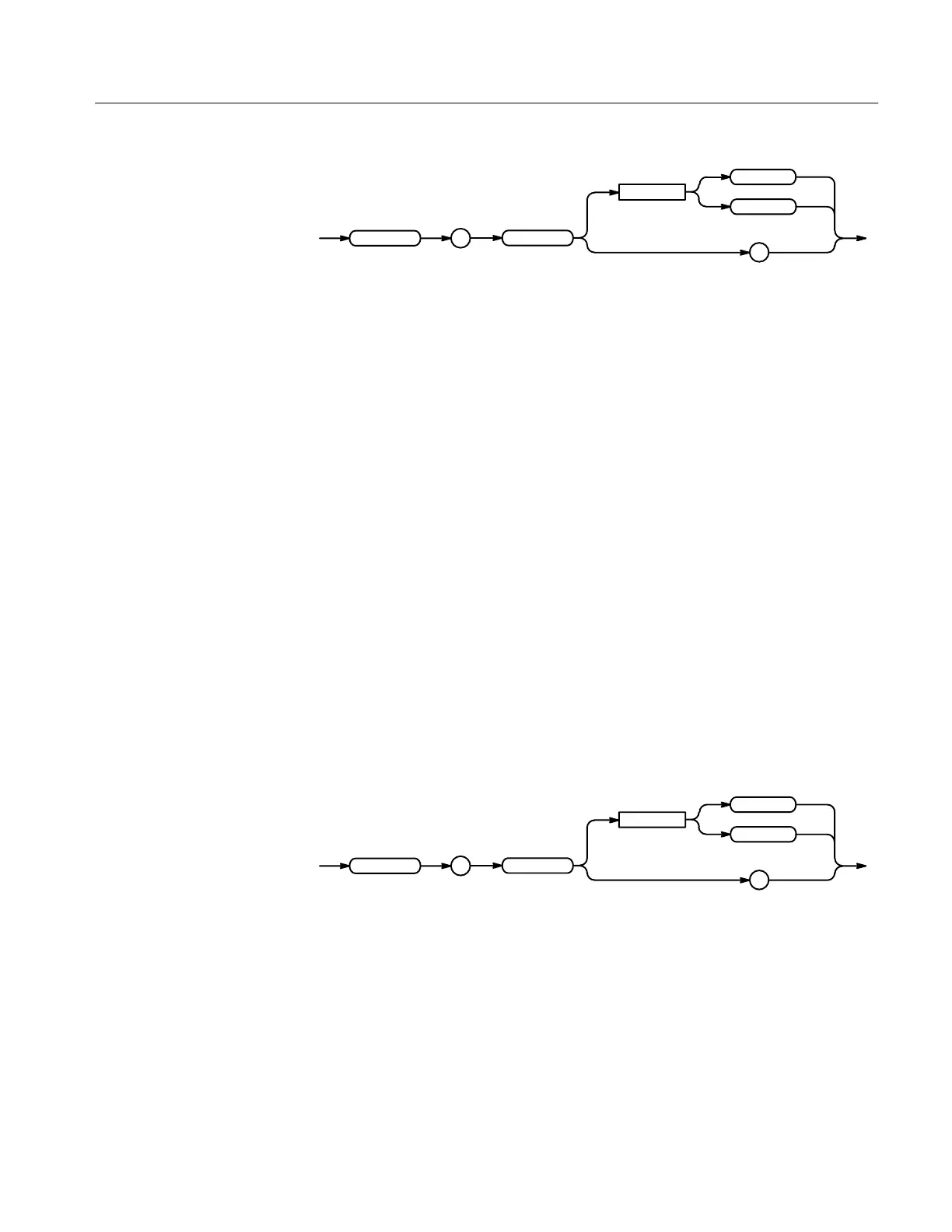

DISplay :

FILTer

SINX

LINEAr

<Space>

LINEAr specifies linear interpolation where acquired points are connected with

straight lines.

SINX specifies sin(x)/x interpolation where acquired points are fit to a curve.

DISPLAY:FILTER LINEAR

sets the interpolation filter type to linear.

DISPLAY:FILTER?

returns either LINEAR or SINX, indicating the type of interpolation filter.

DISplay:FORMat

Sets or queries the display format. This command is equivalent to setting

Format in the Display menu.

Display

DISplay:FORMat { XY | YT }

DISplay:FORMat?

DISplay :

FORMat

<Space>

XY displays the voltage of one waveform against the voltage of another. The

sources that make up an XY waveform are predefined and are listed in

Table 2–28. Displaying one source causes its corresponding source to be

displayed.

Arguments

Examples

Group

Syntax

Arguments
