Getting Started

1–4

TDS Family Oscilloscope Programmer Manual

If needed, you can stack GPIB connectors as shown in Figure 1–6.

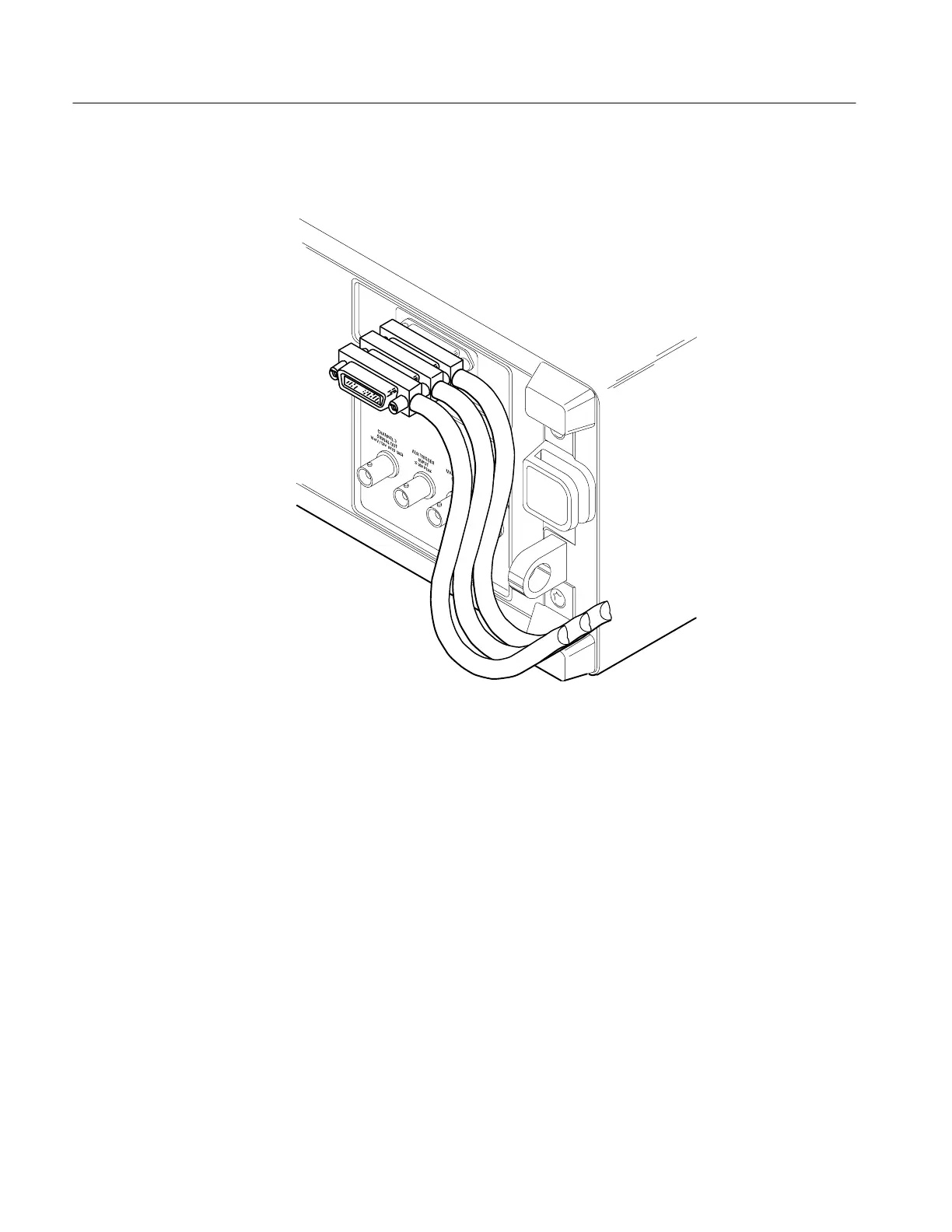

Figure 1–6: How to Stack GPIB Connectors

Observe these rules when you use your digitizing oscilloscope with a GPIB

network:

H Assign a unique device address to each device on the bus. No two devices

can share the same device address.

H Do not connect more than 15 devices to any one bus.

H Connect one device for every 2 meters (6 feet) of cable used.

H Do not use more than 20 meters (65 feet) of cable to connect devices to a

bus.

H Turn on at least two-thirds of the devices on the network while using the

network.

H Connect the devices on the network in a star or linear configuration as shown

in Figure 1–7. Do not use loop or parallel configurations.

GPIB Requirements
