Getting Started
1–6
TDS Family Oscilloscope Programmer Manual
3. Press the Port button in the main menu until it highlights the GPIB
selection in the pop-up menu. See Figure 1–9.
4. Press the Configure button in the main menu to display the GPIB Configu-
ration side menu. See Figure 1–9.
5. Press the Talk/Listen Address side menu button, and set the GPIB address
using either the general purpose knob or, if available, the keypad.

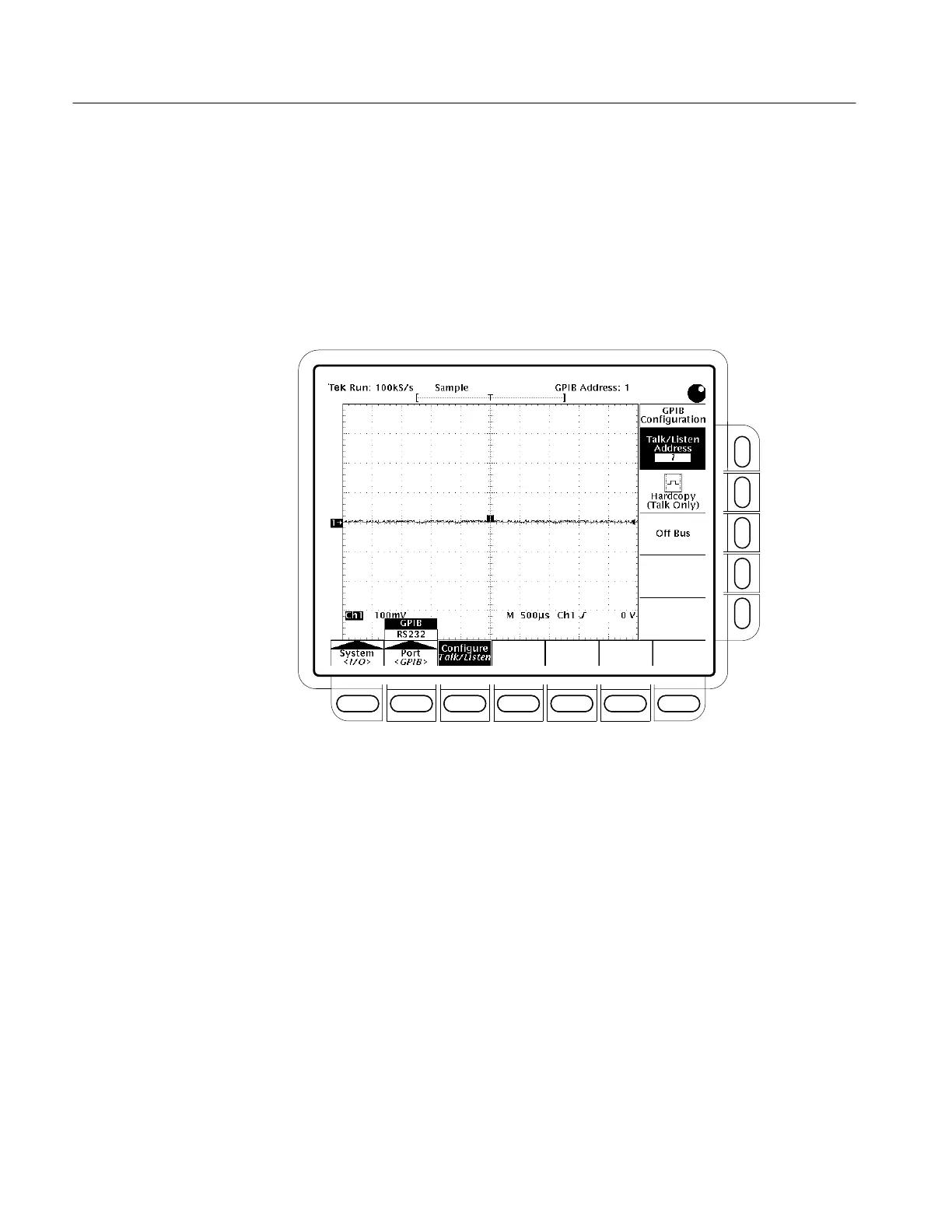

Figure 1–9: Selecting the GPIB Address in the GPIB Configuration Side Menu
The digitizing oscilloscope is set up for bidirectional communication with your
controller. If you wish to isolate the digitizing oscilloscope from the bus:
H Press the Off Bus side menu button. This disables all communication with
the controller.
If you wish to enter a special mode of operation to communicate directly with
non-488.2 hard copy devices:
H Press the Hardcopy side menu button to have the digitizing oscilloscope
send hard copy information only when you press the HARDCOPY button
(and accept a HARDCOPY ABORT command).
