Tektronix TDS 700A Programming Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–195
MID
?
<Space> <NR3>
MEASUrement :
REFLevel
:
PERCent
:
<NR3> ranges from 0 to 100 percent, and is the mid reference level. The default is
50%.
MEASUREMENT:REFLEVEL:PERCENT:MID 60
specifies that the mid reference level is set to 60% of HIGH.
MEASUrement:REFLevel:PERCent:MID2
Sets or queries the percent, where 100% is equal to HIGH, that is used to
calculate the mid reference level for the second waveform specified when taking
a delay measurement. This command is equivalent to setting the Reference
Levels in the Measure menu.
Measurement

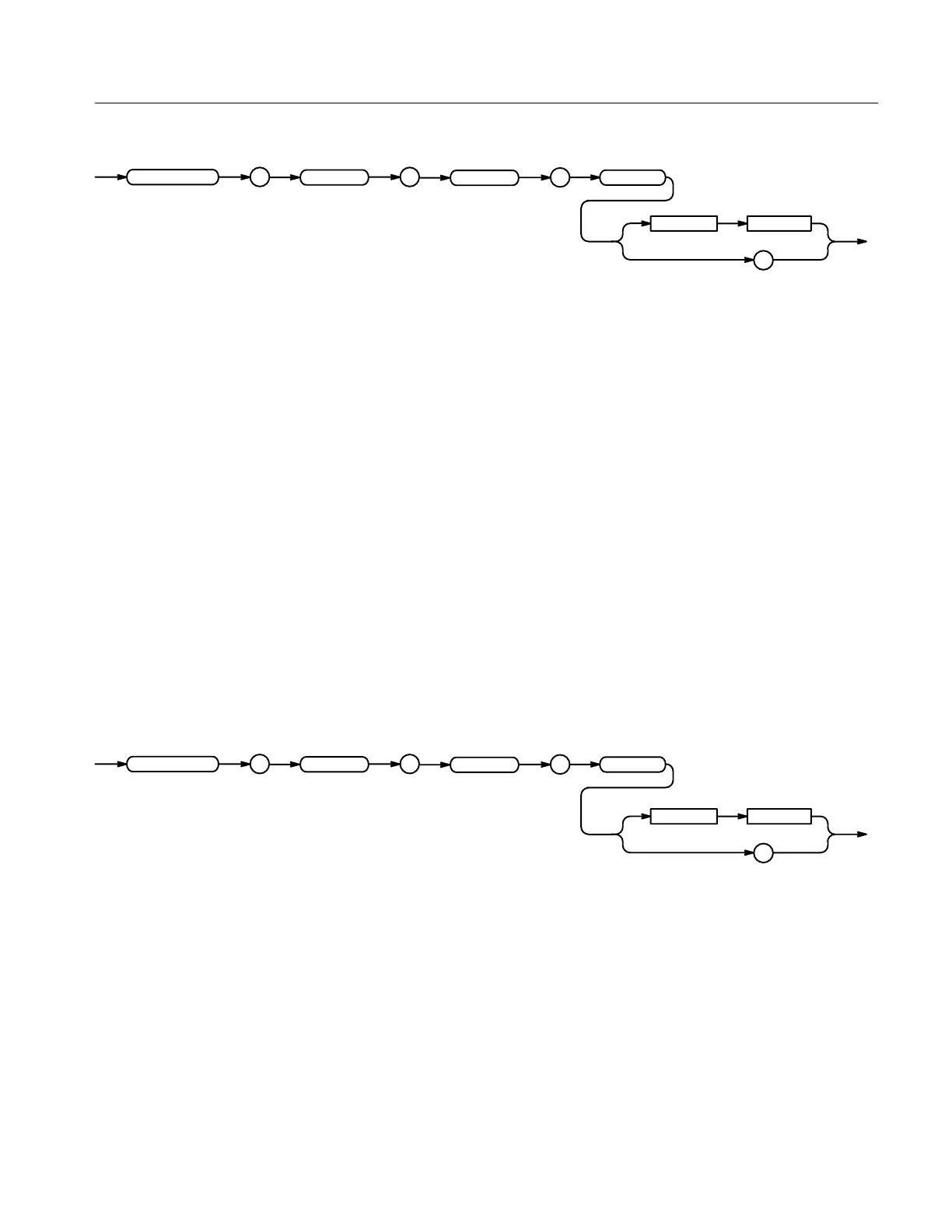

MEASUrement:REFLevel:PERCent:MID2 <NR3>
MEASUrement:REFLevel:PERCent:MID2?
MID2
?
<Space> <NR3>
MEASUrement :
REFLevel
:
PERCent
:
<NR3> ranges from 0 to 100 percent, and is the mid reference level. The default is
50%.
MEASUREMENT:REFLEVEL:PERCENT:MID2 40
specifies that the mid reference level is set to 40% of HIGH.
Arguments
Examples
Group
Syntax
Arguments
Examples
