Appendix E: Performance Verification
E–10
TDS3000 Series User Manual
Check Bandwidth
This test checks the bandwidth for each channel.

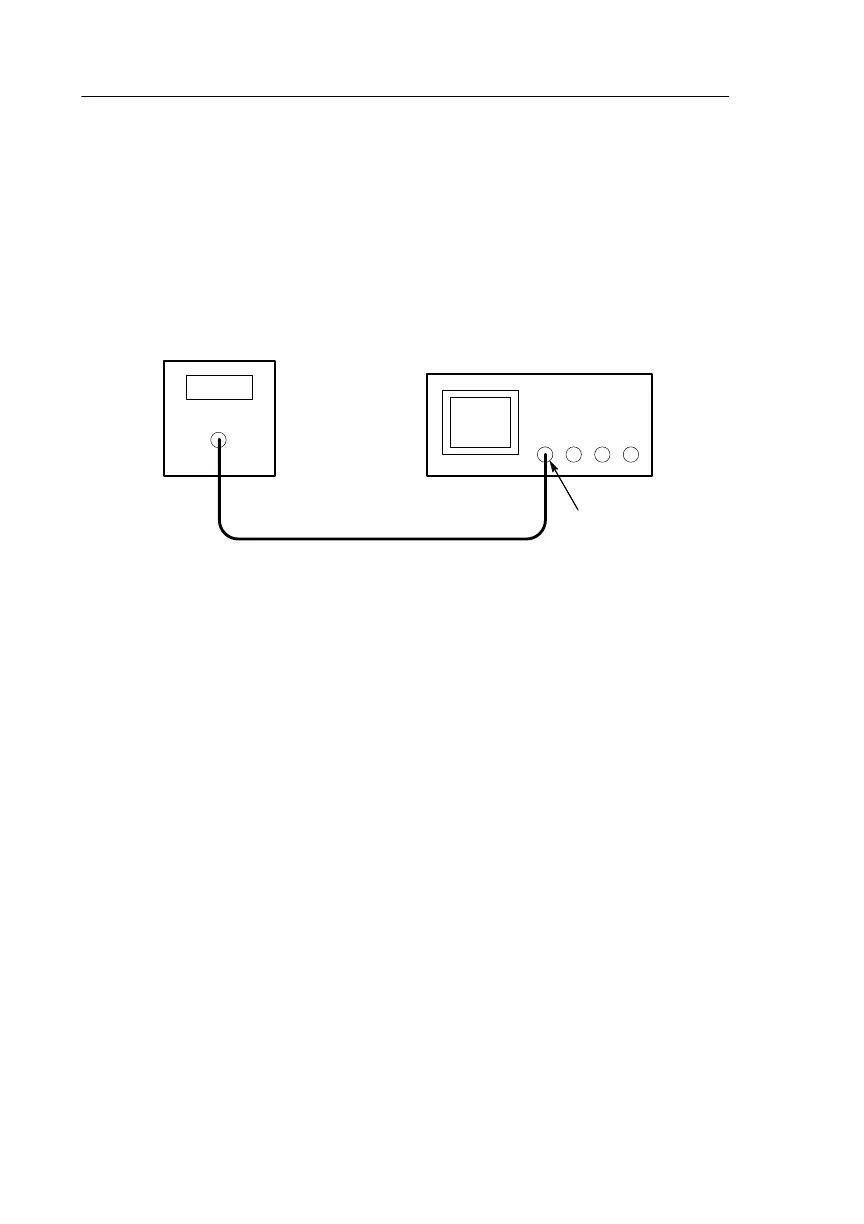

1. Connect the output of the leveled sine wave generator to the
oscilloscope channel 1 input as shown below.
Leveled sine
wave generator
Ch 1
TDS3000 Series Oscilloscope
2. Push the SAVE/RECALL menu button.
3. Push the Recall Factory Setup screen button and then push the
OK Confirm Factory Init screen button.
4. Push the acquire MENU button.
5. Push the Mode screen button and then push the Average screen
button.
6. Adjust the number of averages to 16 with the general purpose
knob.
7. Push the trigger MENU button.
8. Push the Source screen button and then push the Vert screen
button.
9. Push the Coupling screen button and then push the Noise Reject
screen button.
10. Skip to step 13.
