Tektronix TDS6000 Series User Manual

Triggering

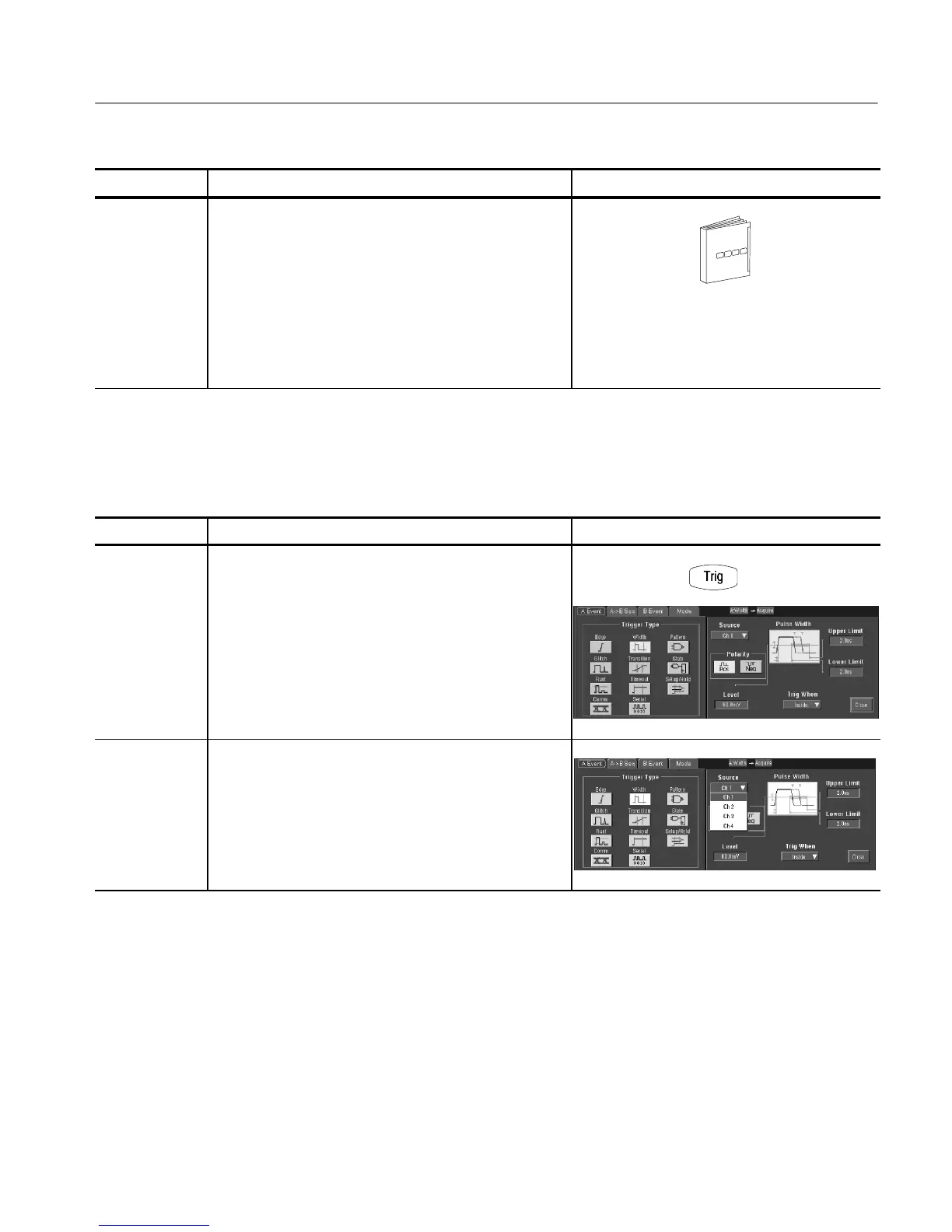

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3-99
Overview Control elements and resourcesTo trigger on a runt pulse (Cont.)
To set mode
and holdoff
8. Mode and holdoff can be set for all standard trigger
types.
See To set holdoff on page 3--84 and To select the
the trigger mode on page 3--81 for mode and
holdoff setup. To learn more about trigger mode
and holdoff, see Trigger Modes on page 3--74 and
Trigger Holdoff on page 3--75.
When you select the type Width, the instrument will trigger on a pulse narrower
(or wider) than some specified range of time (defined by the upper limit and
lower limit). To set up for width triggering, do the following procedures.
Overview Trigger based on pulse width Control elements and resources
Select width
triggering
1. From the toolbar, touch Trig, and select the A Event tab
of the Trigger control window.
2. Touch Widt h.
Select the
source
3. To specify which channel becomes the trigger source,
touch Source, and select the source from the list.
Trigger Based on
Pulse Width
