Displaying Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 129
Mouse and Touch Screen Operation. In general, anything that you can do with the
mouse, you can do by touching the screen, if the touch screen is on. You can
select or change all menus and buttons that are displayed on screen by mouse
clicks or touching the on-screen control while the touch screen is on.
Use the procedure that follows to become familiar with the display adjustments
you can make.

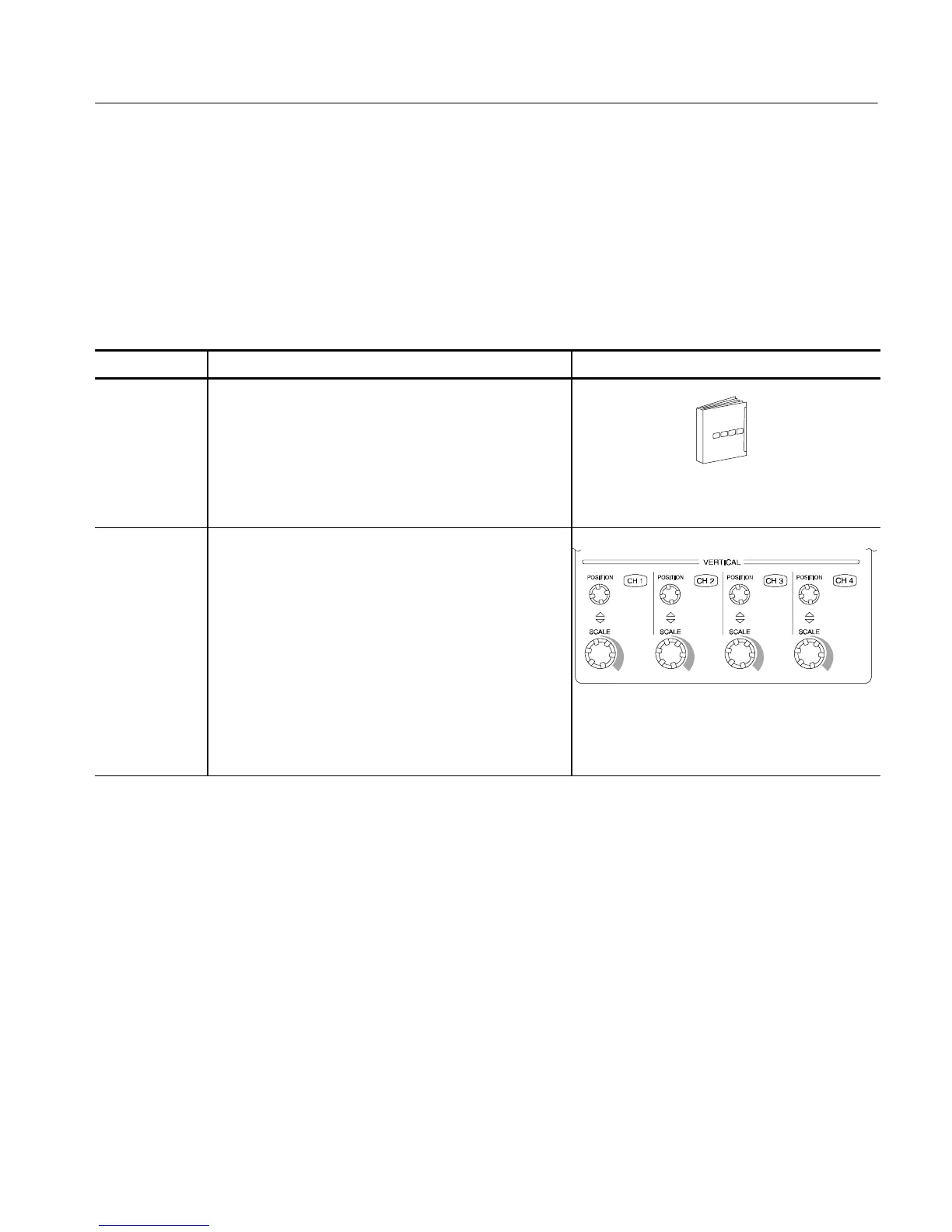

Overview To display waveforms in the main graticule Related control elements and resources
Prerequisites
1. The instrument must be installed and operating.
2. The acquisition system should be set to run
continuously.
See page page 3--34 for acquisition setup and
page 3--71 for trigger setup.
Set vertical
display
parameters
3. Push a channel button to select the waveform (it
displays).
A channel button lights when its channel is on.
Note. For information on math waveforms, see To
Define a Math Waveform on page 3--194. For
information on reference waveforms, see Saving
and Recalling Waveforms on page 3--253.
4. Use the Vertical knobs to achieve a good display
of each waveform that you select.
To Display Wavef orms in
the Main Graticule
To Next Page
