Displaying Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 133

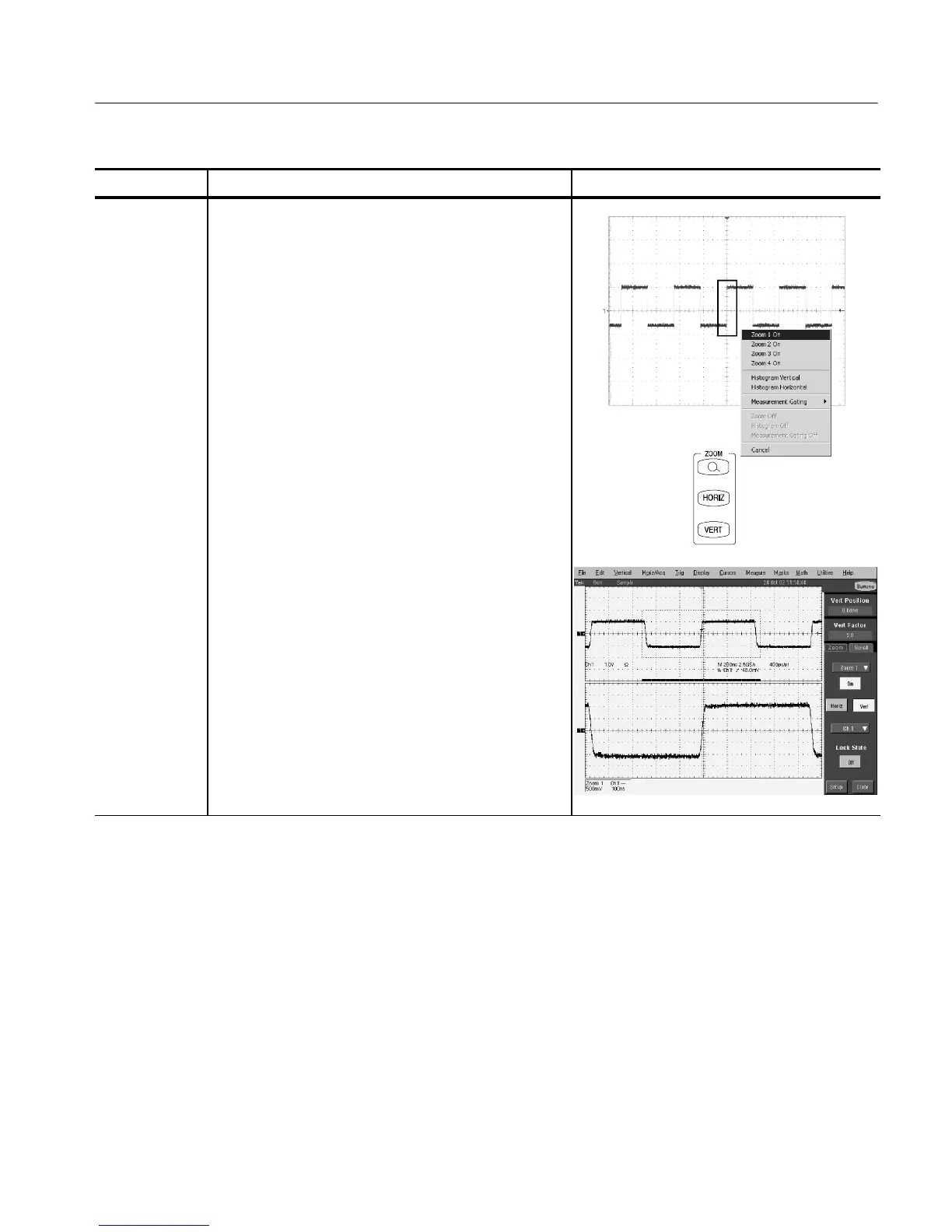

Overview Control elements and resourcesTo zoom waveforms (Cont.)
Select zoom
2. You can select zoom in two ways:
H To zoom a waveform, touch and drag across the
segment of the waveform that you want to see in
greater detail. Then select Zoom 1 On, Zoom 2 On,
Zoom 3 On, or Zoom 4 On to magnify the
highlighted waveform segment in one of the 4
zoom areas.
Note. The instrument displays the box-enclosed area on
the waveform magnified in the graticule. If two graticules
are shown, the magnified waveform is shown in the
bottom graticule.
H Push the ZOOM button to split the screen and add
a zoom graticule.
If the instrument creates two graticules, the magnified
waveform(s) is displayed in the lower graticule, and the
unmagnified waveform(s) in the upper graticule. Use the
Zoom Setup menu to change the graticule size.
