Overview Control elements and resourcesTo use exported waveforms (Cont.)

For further

assistance

9. For more help on exporting waveforms, touch the

Help button in the window to access contextual online

help.

See page 3--283 to learn about accessing online help.

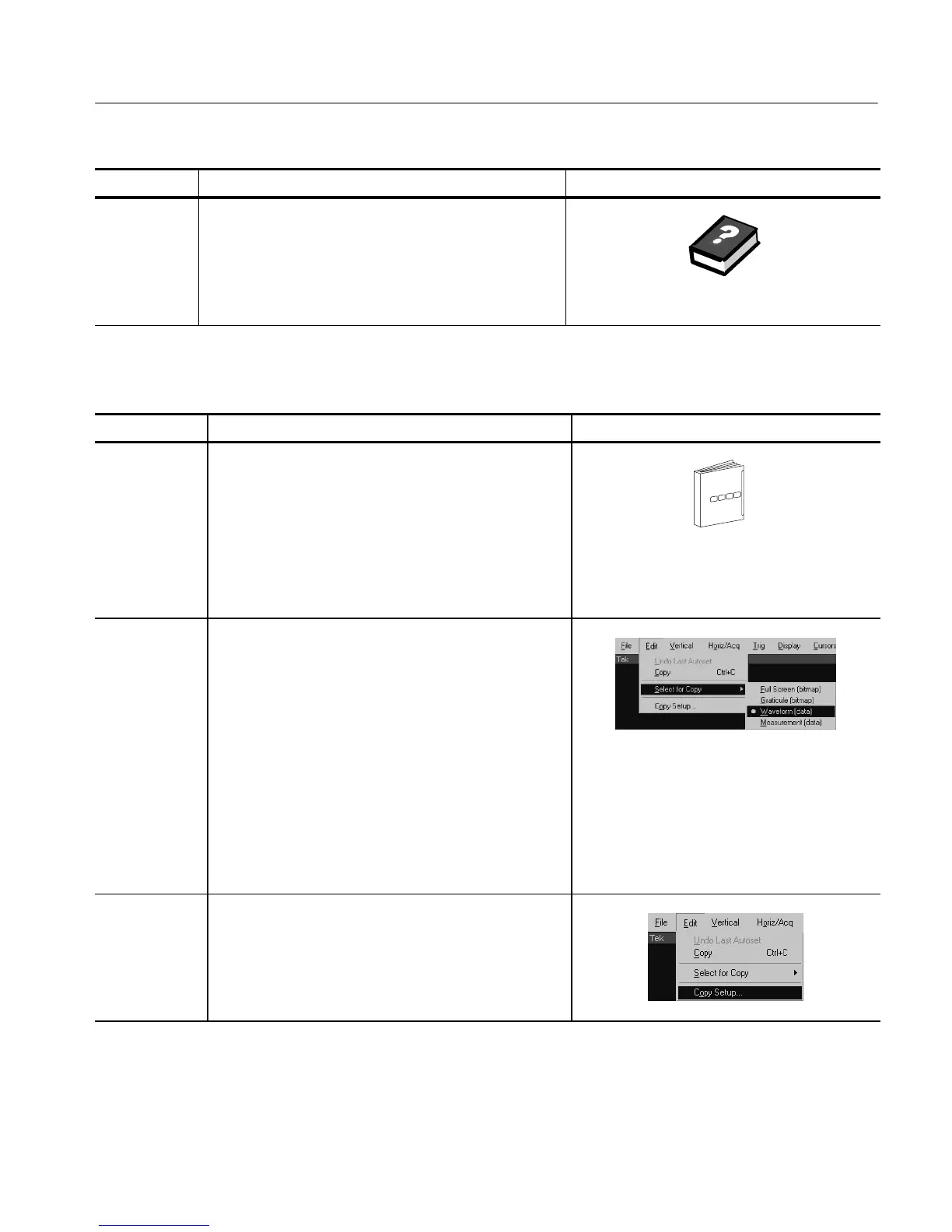

Use the procedure that follows to copy a waveform to the clipboard.

Overview To save a waveform Control elements and resources

Prerequisites 1. Make sure the waveform, image, or measurement to be

copied exists; that is, your source must be a channel, an

active math waveform, an active reference, and so forth.

H See Powering On the Instrument on page 1--9.

H See page 3--34 for acquisition setup.

H See page 3--71 for trigger setup.

Select for copy 2. From the menu bar, select Edit, and then select Select

for Copy. See right.

The menu lists all available waveform, image, and

measurement types available for export:

H Full Screen to export a bitmap of all screen

contents

H Graticul e to export a bitmap of only the graticule

area

H Waveform to export wavef orm data

H Measurement s to export measurement data

Select setup for

copy

3. From the menu bar, select Edit, and then select Copy

Setup to display the Copy Setup control window.

To Copy Your Waveform
