Creating and Using Math Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 199
Overview Related control elements and resourcesTo use math waveforms (Cont.)
Set scale and
position

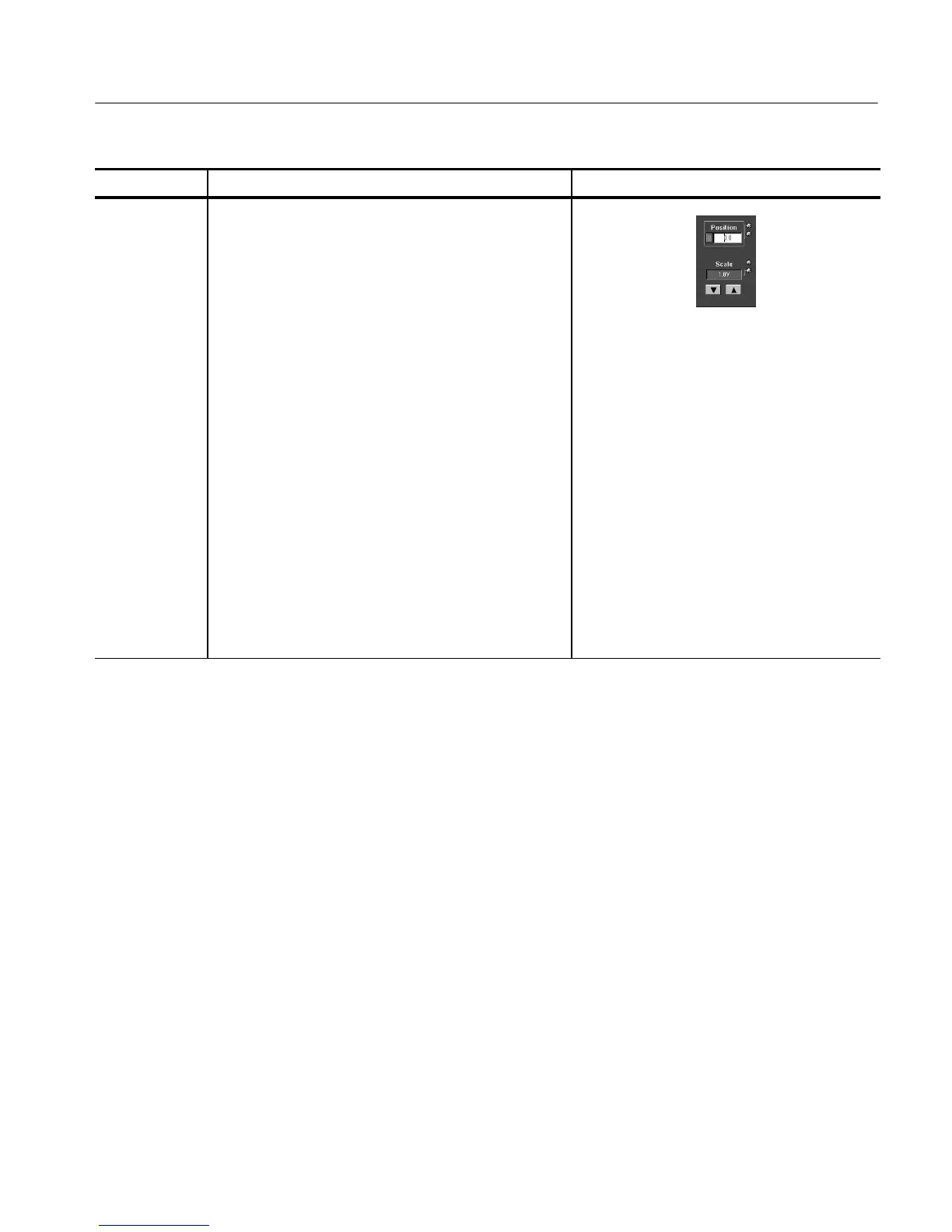

4. Touch Positi on or Scale and use the multipurpose knobs
or keypad to size and position the waveform on screen
as you want it.
Note. Position is in divisions, so changing the scale can
make the math waveform disappear until position is also
changed (the same effect happens with channel
waveforms).
You can touch and drag a waveform handle to change
the waveform vertical position.
You can adjust the waveform vertical position and scale
by first touching the waveform handle and then using
the multipurpose knobs to adjust the scale and position.
You cannot adjust the offset of a math waveform.
You cannot adjust horizontal scale, position, and sample
density (resolution) of math waveforms; different length
source waveforms result in a math waveform of the
shortest source record length. If you adjust these
settings for sources for a math waveform, the
adjustment is reflected in the math waveform.
To Next Page
